COGIS - WELL SCOUT CARD

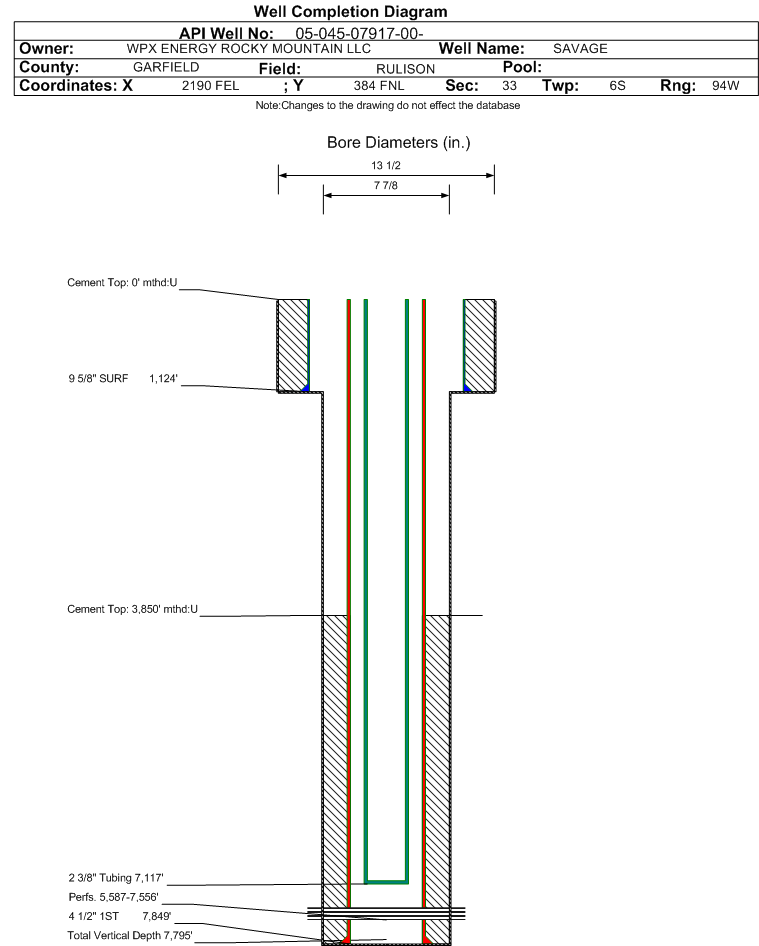

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07917		Well Classification: OW Status: PR - 5/7/2002
Well Name/No:SAVAGE #RWF 334-28
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date5/7/2002
FacilityID:260878LocationID:335225
County:GARFIELD #045Location:NWNE 33 6S94W 6
Field:RULISON - #75400Elevation:5413 ft.
Basin:PICEANCE BASIN
Planned Location:384FNL  2190 FELLat/Long: 39.487979 / -107.891130Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.487990 / -107.891249Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PR - 5/7/2002             Measured TD: 7852 ft.    Vertical TD: 7795 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PR - 5/7/2002
Wellbore PermitDIRECTIONAL
Permit #:011494 Expiration Date:8/7/2002
Proposed Top PZ Location:Sec:28 Twp: 6S 94W Footage: 251 FSL  2217 FEL
Bottom Hole Location:Sec:28 Twp: 6S 94W Footage: 251 FSL  2220 FEL
Proposed Depth/Form:7850 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-34 , Unit Acreage: 320, Drill Unit: E2
Wellbore Completed
Completion Date:3/8/2002
Spud Date:11/9/2001Spud Date Is:ACTUAL
Measured TD:7852 ft.Measured PB depth:7694 ft.
True Vertical TD:7795 ft.True Vertical PB depth:7637 ft.
Top PZ Location:Sec: Twp: Footage: 251 FSL  2242 FEL
Bottom Hole Location:Sec: Twp: Footage: 224 FSL  2173 FEL
Log Types:THERMAL DECAY MULTIGATE LITHOLOGY
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1124 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 480, Top: , Bottom: 1123 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7849 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 852, Top: 3850 ft., Bottom: 7849 ft., Determination Method:
FormationInterval TopLog BottomCoredDSTs
WASATCH G1608 ft.NN
MESAVERDE4030 ft.NN
CAMEO6764 ft.NN
ROLLINS7673 ft.NN

Formation WFCM                     Formation Classification:  OW                     Status:  PR - 5/7/2002                  Interval Top: 5587 ft.    Interval Bottom: 7556 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.219 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:3/8/2002
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:7117 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/16/2002Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
BTU_GAS 1052
CALC_MCF_GAS 1507
CASING_PRESS 1714
MCF_GAS 1507
TUBING_PRESS 1500
Perforation Data:
Interval Top:5587 ft.# Of Holes:100
Interval Bottom:7556 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)20
Total Gas Produced (MCF)15994
GOR799700
GOR DeterminationMCFE
Average BOE per Day7.613
Average MCFE per Day44.158

 Federal Financial Assurance  i

 Tribal Well  i No
