Wellbore #00 Wellbore Classification: GW Status: PR - 2/28/2003 Measured TD: 7583 ft. Vertical TD: 7400 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 2/28/2003 | | Wellbore Permit | | | Permit #: | 011490 | Expiration Date: | 8/7/2002 | | Proposed Top PZ Location: | Sec:26 Twp: 6S 96W | Footage: 231 FSL 227 FEL | | Bottom Hole Location: | Sec:26 Twp: 6S 96W | Footage: 250 FSL 200 FWL | | Proposed Depth/Form: | 7410 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-35 , Unit Acreage: 320, Drill Unit: E/2 | | Casing: | String Type: CONDUCTOR, Hole Size: , Size: 16 in., Top: , Depth: 45 ft., Weight: , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |

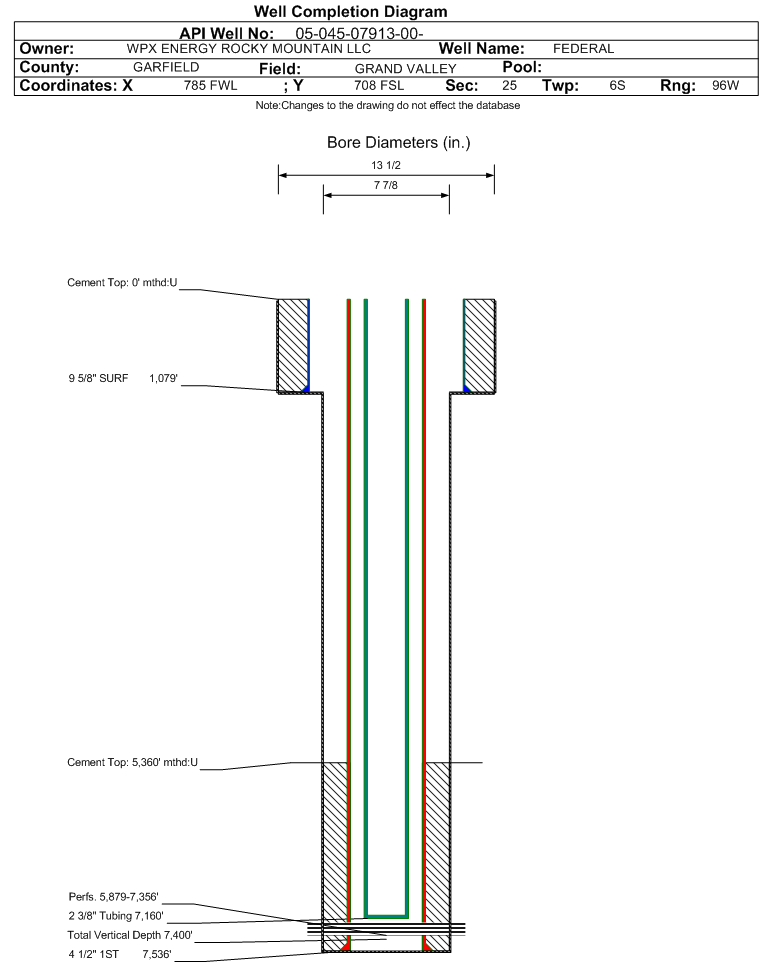

| Wellbore Completed | | Completion Date: | 6/14/2002 | | Spud Date: | 12/15/2001 | Spud Date Is: | ACTUAL | | Measured TD: | 7583 ft. | Measured PB depth: | 7500 ft. | | True Vertical TD: | 7400 ft. | True Vertical PB depth: | 7317 ft. | | Top PZ Location: | Sec: Twp: | Footage: 297 FSL 319 FEL | | Bottom Hole Location: | Sec: Twp: | Footage: 281 FSL 388 FEL | | Log Types: | THERMAL MULTIGATE DECAY LITHOLOGY W/GR AND CEMENT BOND LOG | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1079 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 450, Top: 0 ft., Bottom: 1071 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7536 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 830, Top: 5360 ft., Bottom: 7536 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 2404 ft. | | N | N | | FORT UNION | 2809 ft. | | N | N | | MESAVERDE | 4418 ft. | | N | N | | CAMEO | 6998 ft. | | N | N | | ROLLINS | 7568 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 2/28/2003 Interval Top: 5879 ft. Interval Bottom: 7356 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | N/A | Choke Size: | 0.172 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | FLOWING | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 6/14/2002 | | Treatment Summary: | 4760 GALS. 7.5 % HCL; 515490 20/40 SAND AND 6000 BBLS SLICK WATER |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7160 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 6/16/2002 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 0 | | BBLS_OIL | 0 | | BTU_GAS | 1066 | | CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 0 | | CALC_MCF_GAS | 1479 | | CASING_PRESS | 2104 | | MCF_GAS | 1479 | | TUBING_PRESS | 2016 |
| | Perforation Data: | | Interval Top: | 5879 ft. | # Of Holes: | 69 | | Interval Bottom: | 7356 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 26 |
| Total Gas Produced (MCF) | 9431 |
| GOR | 362730 |
| GOR Determination | MCFE |
| Average BOE per Day | 4.529 |
| Average MCFE per Day | 26.280 |
| Federal Financial Assurance | i | Y |
|
|
