COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07912		Well Classification: GW Status: PR - 6/5/2002
Well Name/No:FEDERAL #PA 14-30
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC62162
Facility Status:PRStatus Date6/5/2002
FacilityID:260873LocationID:335171
County:GARFIELD #045Location:NENW 31 6S95W 6
Field:PARACHUTE - #67350Elevation:6121 ft.
Basin:PICEANCE BASIN
Planned Location:569FNL  1706 FWLLat/Long: 39.486649 / -108.042754Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.486669 / -108.042653Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 6/5/2002             Measured TD: 7810 ft.    Vertical TD: 7673 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 6/5/2002
Wellbore Permit
Permit #:011489 Expiration Date:8/7/2002
Proposed Top PZ Location:Sec:30 Twp: 6S 95W Footage: 244 FSL  949 FWL
Bottom Hole Location:Sec:30 Twp: 6S 95W Footage: 250 FSL  931 FWL
Proposed Depth/Form:7630 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-35 , Unit Acreage: 320, Drill Unit: S/2
Casing:String Type: CONDUCTOR, Hole Size: , Size: 16 in., Top: , Depth: 45 ft., Weight: , Citings Type: PLANNED
Cement:Sacks: , Top: , Bottom:
Wellbore Completed
Completion Date:2/23/2002
Spud Date:10/11/2001Spud Date Is:ACTUAL
Measured TD:7810 ft.Measured PB depth:7646 ft.
True Vertical TD:7673 ft.True Vertical PB depth:7509 ft.
Top PZ Location:Sec: Twp: Footage: 299 FSL  955 FWL
Bottom Hole Location:Sec: Twp: Footage: 340 FSL  936 FWL
Log Types:PNL-GR, CBL

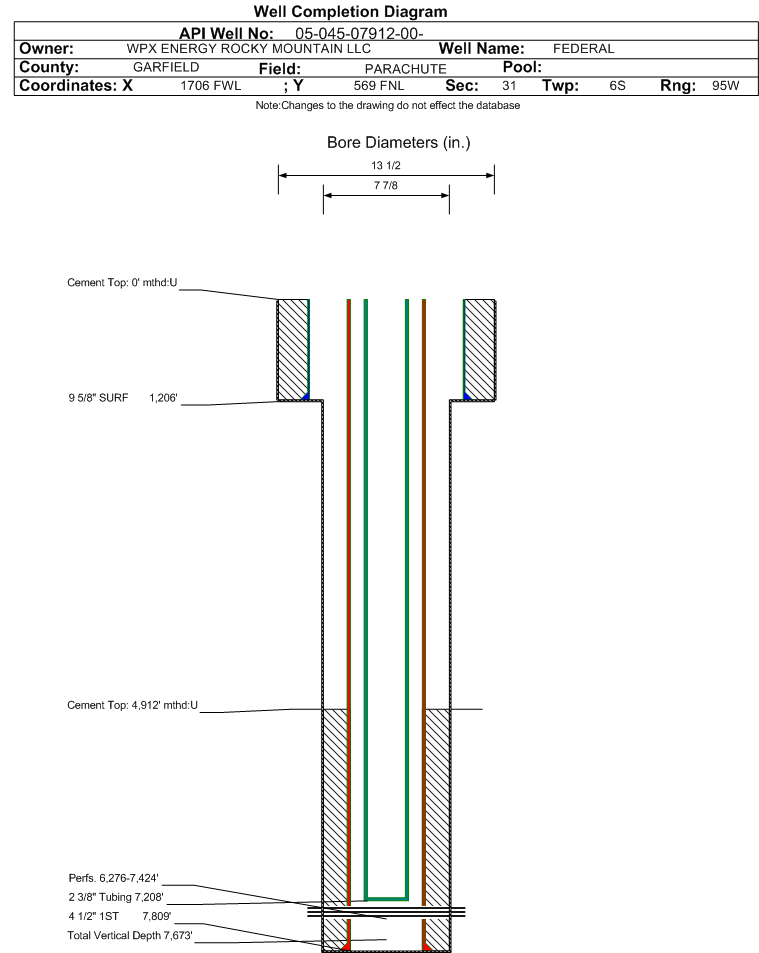

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1206 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 525, Top: , Bottom: 1205 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7809 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 740, Top: 4912 ft., Bottom: 7808 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G2486 ft.NN
FORT UNION2716 ft.NN
MESAVERDE4584 ft.NN
CAMEO7199 ft.NN
ROLLINS7722 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 6/5/2002                  Interval Top: 6276 ft.    Interval Bottom: 7424 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.203 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:2/23/2002
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:7208 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/24/2002Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
BTU_GAS 1096
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 900
CASING_PRESS 1550
MCF_GAS 900
TUBING_PRESS 1425
Perforation Data:
Interval Top:6276 ft.# Of Holes:68
Interval Bottom:7424 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)19
Total Gas Produced (MCF)8451
GOR444789
GOR DeterminationMCFE
Average BOE per Day4.044
Average MCFE per Day23.468

 Federal Financial Assurance  i Y

 Tribal Well  i No
