COGIS - WELL SCOUT CARD

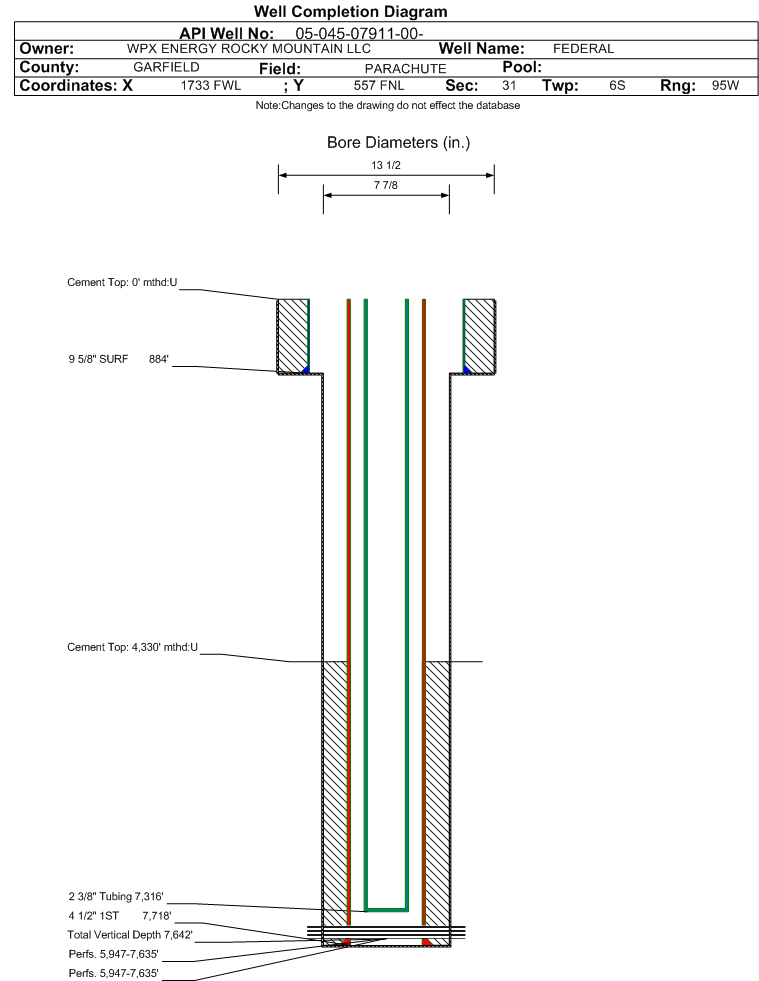

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07911		Well Classification: GW Status: PR - 5/7/2002
Well Name/No:FEDERAL #PA 24-30
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC 62162
Facility Status:PRStatus Date5/7/2002
FacilityID:260872LocationID:335171
County:GARFIELD #045Location:NENW 31 6S95W 6
Field:PARACHUTE - #67350Elevation:6122 ft.
Basin:PICEANCE BASIN
Planned Location:557FNL  1733 FWLLat/Long: 39.486679 / -108.042654Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.486688 / -108.042556Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 5/7/2002             Measured TD: 7721 ft.    Vertical TD: 7642 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 5/7/2002
Wellbore Permit
Permit #:011488 Expiration Date:8/7/2002
Proposed Top PZ Location:Sec:30 Twp: 6S 95W Footage: 222 FSL  2061 FWL
Bottom Hole Location:Sec:30 Twp: 6S 95W Footage: 250 FSL  2070 FWL
Proposed Depth/Form:7630 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-35 , Unit Acreage: , Drill Unit:
Casing:String Type: CONDUCTOR, Hole Size: , Size: 16 in., Top: , Depth: 45 ft., Weight: , Citings Type: PLANNED
Cement:Sacks: , Top: , Bottom:
Wellbore Completed
Completion Date:2/20/2002
Spud Date:11/1/2002Spud Date Is:ACTUAL
Measured TD:7721 ft.Measured PB depth:7674 ft.
True Vertical TD:7642 ft.True Vertical PB depth:7595 ft.
Top PZ Location:Sec: Twp: Footage: 263 FSL  2074 FWL
Bottom Hole Location:Sec: Twp: Footage: 309 FSL  2104 FWL
Log Types:THERMAL DECAY MULTIGATE LITHOLOGY, CBL
Log Types:THERMAL DECAY MULTIGATE LITHOLOGY
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 884 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 370, Top: , Bottom: 884 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7718 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 740, Top: 4330 ft., Bottom: 7717 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
WASATCH G2466 ft.NN
FORT UNION2696 ft.NN
MESAVERDE4520 ft.NN
CAMEO7148 ft.NN
ROLLINS7649 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 12/1/2010                 Interval Top: 5947 ft.    Interval Bottom: 7635 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.203 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:2/20/2002
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:7316 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/24/2002Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_OIL 0
BTU_GAS 1085
CALC_BBLS_OIL 0
CALC_MCF_GAS 1079
CASING_PRESS 1567
MCF_GAS 1079
TUBING_PRESS 1415
Perforation Data:
Interval Top:5947 ft.# Of Holes:82
Interval Bottom:7635 ft.Hole Size:

Formation WMRCM                   Formation Classification:  GW                   Status:  CM - 2/24/2002                 Interval Top: 5947 ft.    Interval Bottom: 7635 ft.

 Completed Information for Formation WILLIAMS FK-ROLLINS-CAMEO
1st Production Date:N/AChoke Size:0.203 in.
Formation Name:WILLIAMS FK-ROLLINS-CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:2/20/2002
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:7316 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/24/2002Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
BTU_GAS 1085
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 1079
CASING_PRESS 1567
MCF_GAS 1079
TUBING_PRESS 1415
Perforation Data:
Interval Top:5947 ft.# Of Holes:82
Interval Bottom:7635 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)20
Total Gas Produced (MCF)8524
GOR426200
GOR DeterminationMCFE
Average BOE per Day4.087
Average MCFE per Day23.709

 Federal Financial Assurance  i Y

 Tribal Well  i No
