COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07903		Well Classification: GW Status: PR - 11/19/2001
Well Name/No:CHEVRON #GM 22-29
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC56547
Facility Status:PRStatus Date11/19/2001
FacilityID:260718LocationID:335088
County:GARFIELD #045Location:NENW 29 6S96W 6
Field:GRAND VALLEY - #31290Elevation:5710 ft.
Basin:PICEANCE BASIN
Planned Location:976FNL  2028 FWLLat/Long: 39.499738 / -108.134677Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.499784 / -108.134705Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.

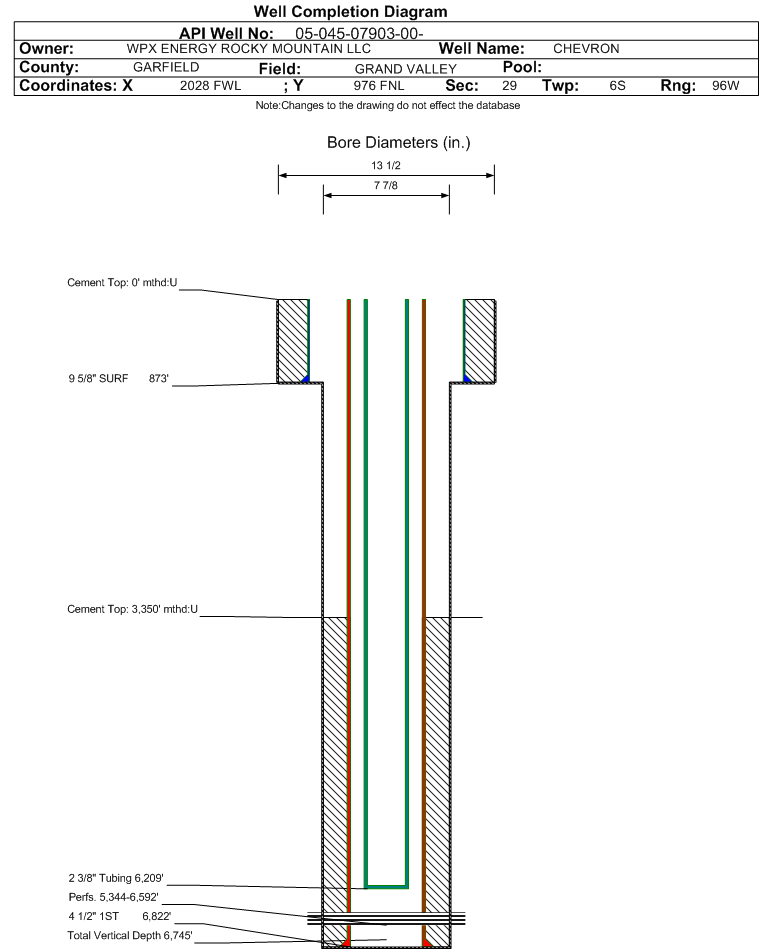

Wellbore #00             Wellbore Classification: GW             Status: PR - 11/19/2001             Measured TD: 6824 ft.    Vertical TD: 6745 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 11/19/2001
Wellbore Permit
Permit #:011426 Expiration Date:7/19/2002
Proposed Top PZ Location:Sec: Twp: Footage: 1785 FNL  1720 FWL
Bottom Hole Location:Sec: Twp: Footage: 1806 FNL  1687 FWL
Proposed Depth/Form:6750 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 510-1 , Unit Acreage: 160, Drill Unit: NW/4
Wellbore Completed
Completion Date:11/19/2001
Spud Date:10/10/2001Spud Date Is:ACTUAL
Measured TD:6824 ft.Measured PB depth:6743 ft.
True Vertical TD:6745 ft.True Vertical PB depth:6664 ft.
Top PZ Location:Sec: Twp: Footage: 1785 FNL  1720 FWL
Bottom Hole Location:Sec: Twp: Footage: 1806 FNL  1687 FWL
Log Types:SONIC-NEUTRON-GR
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 873 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 360, Top: 0 ft., Bottom: 873 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6822 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 710, Top: 3350 ft., Bottom: 6821 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
WASATCH G2074 ft.NN
FORT UNION2384 ft.NN
MESAVERDE3714 ft.NN
CAMEO6254 ft.NN
ROLLINS6734 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 11/19/2001                Interval Top: 5344 ft.    Interval Bottom: 6592 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.188 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:11/19/2001
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:6209 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/19/2001Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
BTU_GAS 1059
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 1600
CASING_PRESS 1216
MCF_GAS 1600
TUBING_PRESS 1122
Perforation Data:
Interval Top:5344 ft.# Of Holes:50
Interval Bottom:6592 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2025 - January 2026i
Total Oil Produced (Barrels)12
Total Gas Produced (MCF)7872
GOR656000
GOR DeterminationMCFE
Average BOE per Day3.750
Average MCFE per Day21.774

 Federal Financial Assurance  i Y

 Tribal Well  i No
