COGIS - WELL SCOUT CARD

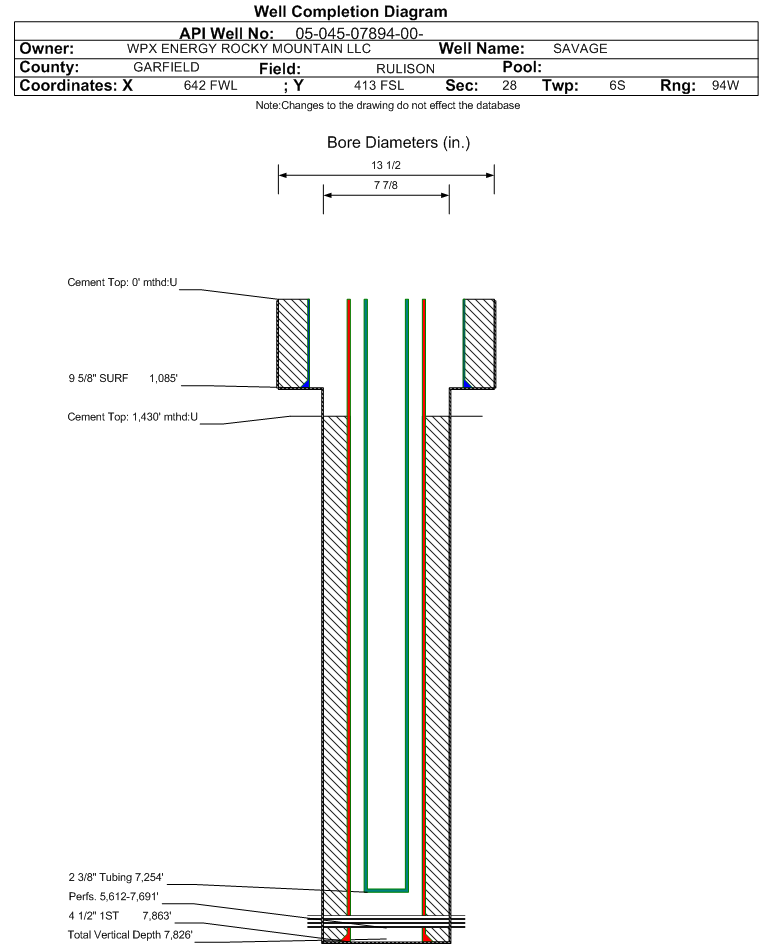

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07894		Well Classification: GW Status: PR - 7/16/2001
Well Name/No:SAVAGE #RWF 314-28
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date7/16/2001
FacilityID:260664LocationID:335282
County:GARFIELD #045Location:SWSW 28 6S94W 6
Field:RULISON - #75400Elevation:5535 ft.
Basin:PICEANCE BASIN
Planned Location:413FSL  642 FWLLat/Long: 39.490159 / -107.899840Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.490233 / -107.899781Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 6/13/2001             Measured TD: 7864 ft.    Vertical TD: 7826 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 6/13/2001
Wellbore Permit
Permit #:011387 Expiration Date:7/15/2002
Proposed Top PZ Location:Sec:28 Twp: 6S 94W Footage: 884 FSL  341 FWL
Bottom Hole Location:Sec:28 Twp: 6S 94W Footage: 923 FSL  335 FWL
Proposed Depth/Form:7840 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-33 , Unit Acreage: 320, Drill Unit: W2
Wellbore Completed
Completion Date:11/16/2001
Spud Date:8/16/2001Spud Date Is:ACTUAL
Measured TD:7864 ft.Measured PB depth:7815 ft.
True Vertical TD:7826 ft.True Vertical PB depth:7777 ft.
Top PZ Location:Sec: Twp: Footage: 876 FSL  279 FEL
Bottom Hole Location:Sec: Twp: Footage: 890 FSL  253 FEL
Log Types:THERMAL DECAY MULTIGATE LITHOGY
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1085 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 480, Top: , Bottom: 1085 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7863 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 903, Top: 1430 ft., Bottom: 7862 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
MESAVERDE4239 ft.NN
CAMEO COAL6889 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 6/13/2001                 Interval Top: 5612 ft.    Interval Bottom: 7691 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.219 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:11/16/2001
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:7254 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/18/2001Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
BTU_GAS 1026
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 1462
CASING_PRESS 1369
MCF_GAS 1462
TUBING_PRESS 1252
Perforation Data:
Interval Top:5612 ft.# Of Holes:82
Interval Bottom:7691 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2025 - January 2026i
Total Oil Produced (Barrels)11
Total Gas Produced (MCF)6721
GOR611000
GOR DeterminationMCFE
Average BOE per Day3.206
Average MCFE per Day18.600

 Federal Financial Assurance  i

 Tribal Well  i No
