COGIS - WELL SCOUT CARD

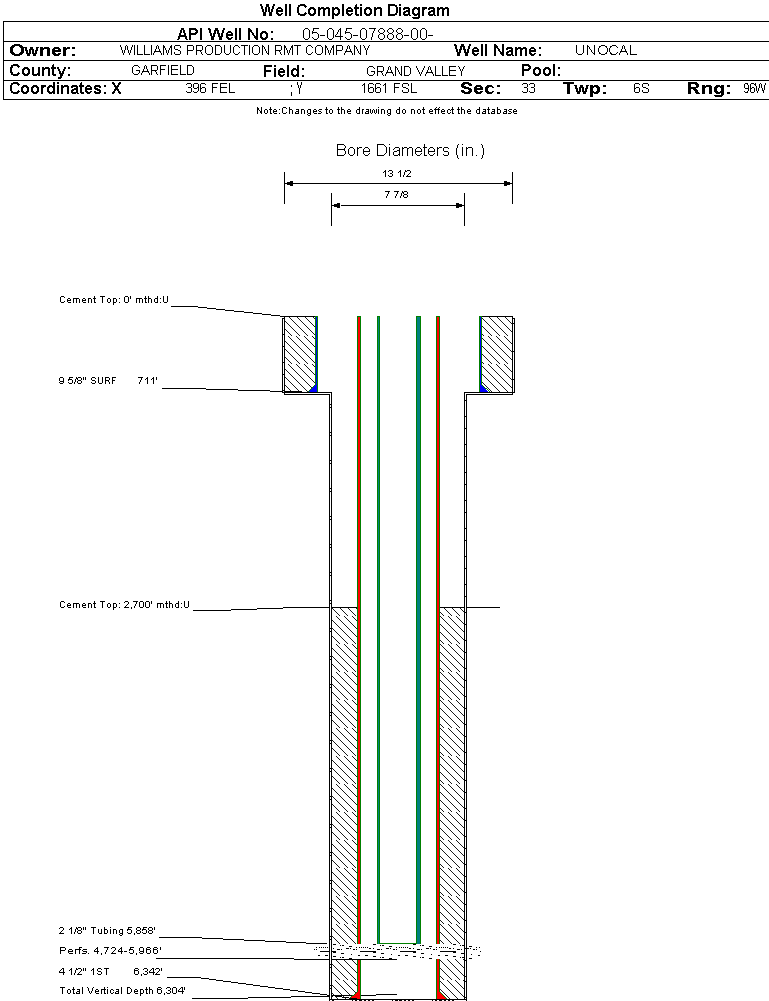

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07888		Well Classification: GW Status: PR - 1/1/2018
Well Name/No:UNOCAL #GM 444-33
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date1/1/2018
FacilityID:260632LocationID:335353
County:GARFIELD #045Location:NESE 33 6S96W 6
Field:GRAND VALLEY - #31290Elevation:5364 ft.
Basin:PICEANCE BASIN
Planned Location:1661FSL  396 FELLat/Long: 39.477718 / -108.105346Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.477851 / -108.105266Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 1/1/2018             Measured TD: 6350 ft.    Vertical TD: 6304 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 1/1/2018
Wellbore Permit
Permit #:011358 Expiration Date:7/11/2002
Proposed Top PZ Location:Sec:33 Twp: 6S 96W Footage: 1122 FSL  296 FEL
Bottom Hole Location:Sec:33 Twp: 6S 96W Footage: 1076 FSL  278 FEL
Proposed Depth/Form:6310 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WFCM , Formation: WILLIAMS FORK - CAMEO , Order: 139-36 , Unit Acreage: 160, Drill Unit: SE/4
Wellbore Completed
Completion Date:12/14/2001
Spud Date:8/22/2001Spud Date Is:ACTUAL
Measured TD:6350 ft.Measured PB depth:6065 ft.
True Vertical TD:6304 ft.True Vertical PB depth:6019 ft.
Top PZ Location:Sec: Twp: Footage: 1126 FSL  281 FEL
Bottom Hole Location:Sec: Twp: Footage: 985 FSL  298 FEL
Log Types:DUAL INDUCTION SPECTRAL DENSITY DUAL SPACED NEUTRON
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 711 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 380, Top: , Bottom: 711 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6342 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 790, Top: 2700 ft., Bottom: 6342 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
FORT UNION1951 ft.NN
MESAVERDE3349 ft.NN
CAMEO5833 ft.NN
ROLLINS6306 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 1/1/2018                  Interval Top: 4724 ft.    Interval Bottom: 5966 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:12/14/2001Choke Size:0.287 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:12/14/2001
Treatment Summary:3750 GALS 7.5% HCL 20/40 SAND AND SLICK WATER
Tubing Size:2.21 in.Tubing Setting Depth:5858 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/17/2001Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
CALC_MCF_GAS 0
Perforation Data:
Interval Top:4724 ft.# Of Holes:52
Interval Bottom:5966 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2025 - January 2026i
Total Oil Produced (Barrels)15
Total Gas Produced (MCF)11368
GOR757866
GOR DeterminationMCFE
Average BOE per Day5.410
Average MCFE per Day31.402

 Federal Financial Assurance  i

 Tribal Well  i No
