Wellbore #00 Wellbore Classification: GW Status: PR - 6/19/2001 Measured TD: 6398 ft. Vertical TD: 6374 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 6/19/2001 | | Wellbore Permit | | | Permit #: | 011356 | Expiration Date: | 7/11/2002 | | Proposed Top PZ Location: | Sec:33 Twp: 6S 96W | Footage: 339 FSL 341 FEL | | Bottom Hole Location: | Sec:33 Twp: 6S 96W | Footage: 291 FSL 286 FEL | | Proposed Depth/Form: | 6350 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-36 , Unit Acreage: 160, Drill Unit: SE4 |
| | |

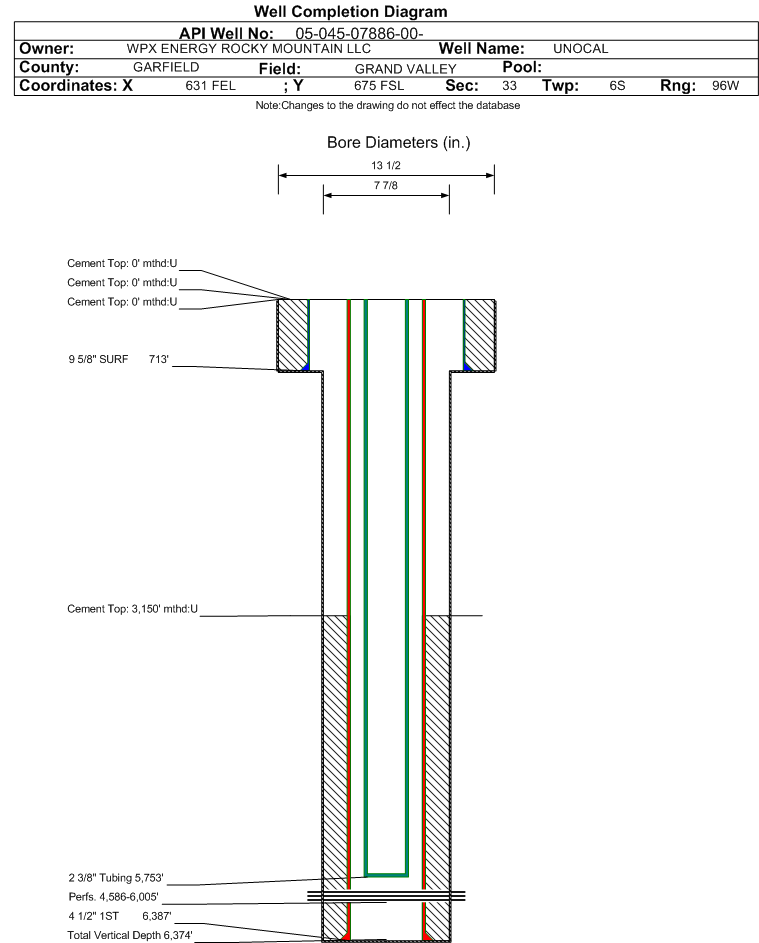

| Wellbore Completed | | Completion Date: | 11/5/2001 | | Spud Date: | 8/4/2001 | Spud Date Is: | ACTUAL | | Measured TD: | 6398 ft. | Measured PB depth: | 6156 ft. | | True Vertical TD: | 6374 ft. | True Vertical PB depth: | 6132 ft. | | Log Types: | DUAL INDUCTION SPECTRAL DENSITY DUAL SPACED NEUTRON | | Log Types: | DUAL INDUCTION SPECTRAL DENSITY DUAL SPACED NEUTRON | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 713 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 400, Top: , Bottom: 713 ft., Determination Method: CBL | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6387 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 750, Top: 3150 ft., Bottom: 6387 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: , Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: , Bottom: , Determination Method: CBL | | Casing: | String Type: S.C. 1.2, Hole Size: , Size: , Top: , Depth: , Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: , Bottom: , Determination Method: CBL | | Casing: | String Type: 2ND, Hole Size: , Size: , Top: , Depth: , Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: , Bottom: , Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 1665 ft. | | N | N | | FORT UNION | 2008 ft. | | N | N | | MESAVERDE | 3389 ft. | | N | N | | CAMEO | 5843 ft. | | N | N | | CAMEO COAL | 5843 ft. | | N | N | | ROLLINS | 6360 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 6/19/2001 Interval Top: 4586 ft. Interval Bottom: 6005 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | N/A | Choke Size: | 0.203 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | FLOWING | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 11/5/2001 | | Treatment Summary: | |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 5753 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 11/7/2001 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 0 | | BBLS_OIL | 0 | | BTU_GAS | 1104 | | CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 0 | | CALC_MCF_GAS | 1418 | | CASING_PRESS | 1627 | | MCF_GAS | 1418 | | TUBING_PRESS | 1648 |
| | Perforation Data: | | Interval Top: | 4586 ft. | # Of Holes: | 76 | | Interval Bottom: | 6005 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 12 |
| Total Gas Produced (MCF) | 7763 |
| GOR | 646916 |
| GOR Determination | MCFE |
| Average BOE per Day | 3.704 |
| Average MCFE per Day | 21.467 |
| Federal Financial Assurance | i | |
|
|
