COGIS - WELL SCOUT CARD

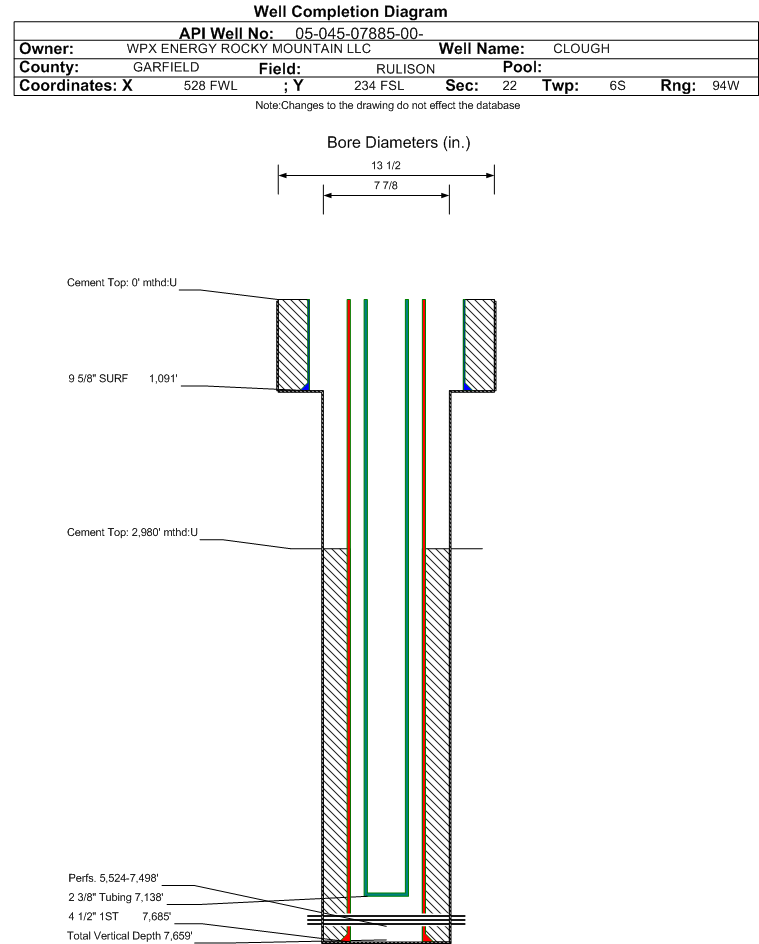

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07885		Well Classification: GW Status: PR - 3/23/2002
Well Name/No:CLOUGH #RMV 222-22
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date3/23/2002
FacilityID:260629LocationID:335193
County:GARFIELD #045Location:SWSW 22 6S94W 6
Field:RULISON - #75400Elevation:5417 ft.
Basin:PICEANCE BASIN
Planned Location:234FSL  528 FWLLat/Long: 39.504019 / -107.881930Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.504128 / -107.882126Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 3/23/2002             Measured TD: 7696 ft.    Vertical TD: 7659 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 3/23/2002
Wellbore Permit
Permit #:011355 Expiration Date:7/11/2002
Proposed Top PZ Location:Sec:22 Twp: 6S 94W Footage: 780 FSL  565 FWL
Bottom Hole Location:Sec:22 Twp: 6S 94W Footage: 830 FSL  574 FWL
Proposed Depth/Form:7770 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-33 , Unit Acreage: 320, Drill Unit: S2
Wellbore Completed
Completion Date:3/22/2002
Spud Date:1/10/2002Spud Date Is:ACTUAL
Measured TD:7696 ft.Measured PB depth:7621 ft.
True Vertical TD:7659 ft.True Vertical PB depth:7584 ft.
Top PZ Location:Sec: Twp: Footage: 797 FSL  532 FWL
Bottom Hole Location:Sec: Twp: Footage: 767 FSL  483 FWL
Log Types:THERMAL MULTIGATE DECLAY LITHOLOGY, CBL
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1091 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 480, Top: , Bottom: 1090 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7685 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 940, Top: 2980 ft., Bottom: 7684 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1611 ft.NN
MESAVERDE4011 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 3/23/2002                 Interval Top: 5524 ft.    Interval Bottom: 7498 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.203 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:3/22/2002
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:7138 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/23/2002Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
BTU_GAS 1059
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 2200
CASING_PRESS 2610
MCF_GAS 2200
TUBING_PRESS 2500
Perforation Data:
Interval Top:5524 ft.# Of Holes:90
Interval Bottom:7498 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2025 - January 2026i
Total Oil Produced (Barrels)29
Total Gas Produced (MCF)10337
GOR356448
GOR DeterminationMCFE
Average BOE per Day4.970
Average MCFE per Day28.813

 Federal Financial Assurance  i

 Tribal Well  i No
