COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07880		Well Classification: OW Status: PR - 6/20/2002
Well Name/No:UNOCAL #GM 543-33
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date6/20/2002
FacilityID:260617LocationID:335250
County:GARFIELD #045Location:SESE 33 6S96W 6
Field:GRAND VALLEY - #31290Elevation:5409 ft.
Basin:PICEANCE BASIN
Planned Location:1286FSL  902 FELLat/Long: 39.476688 / -108.107126Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.476817 / -108.107013Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PR - 6/20/2002             Measured TD: 6382 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PR - 6/20/2002
Wellbore Permit
Permit #:011349 Expiration Date:7/11/2002
Proposed Top PZ Location:Sec:33 Twp: 6S 96W Footage: 1634 FSL  1167 FEL
Bottom Hole Location:Sec:33 Twp: 6S 96W Footage: 1666 FSL  1203 FEL
Proposed Depth/Form:6350 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: 160, Drill Unit: SE4
Wellbore Completed
Completion Date:6/11/2002
Spud Date:11/24/2001Spud Date Is:ACTUAL
Measured TD:6382 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 1665 FSL  1223 FEL
Bottom Hole Location:Sec: Twp: Footage: 1663 FSL  1254 FEL
Log Types:DUAL IND SPECTRAL DEN DUAL SPACED NEU, CBL

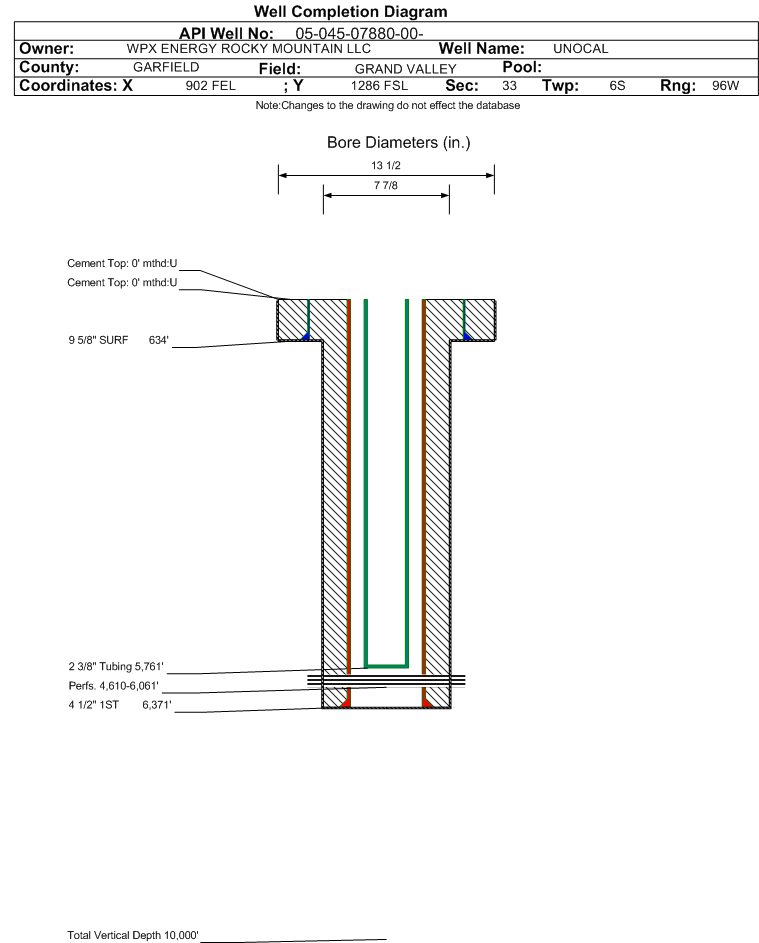

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 634 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 360, Top: , Bottom: 634 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6371 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 900, Top: , Bottom: 6371 ft., Determination Method:
FormationInterval TopLog BottomCoredDSTs
WASATCH G1673 ft.NN
FORT HAYS1997 ft.NN
MESAVERDE3312 ft.NN
CAMEO5845 ft.NN
ROLLINS6346 ft.NN

Formation WFCM                     Formation Classification:  OW                     Status:  PR - 6/20/2002                 Interval Top: 4610 ft.    Interval Bottom: 6061 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.203 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:6/11/2002
Treatment Summary:750 GALS 7 1/2% HCL, 54600# 20/40, 1743 BBLS SLICK WATER
Tubing Size:2.375 in.Tubing Setting Depth:5761 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/20/2002Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 1209
CASING_PRESS 1453
TUBING_PRESS 1340
Perforation Data:
Interval Top:4610 ft.# Of Holes:64
Interval Bottom:6061 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)11
Total Gas Produced (MCF)6951
GOR631909
GOR DeterminationMCFE
Average BOE per Day3.311
Average MCFE per Day19.214

 Federal Financial Assurance  i

 Tribal Well  i No
