COGIS - WELL SCOUT CARD

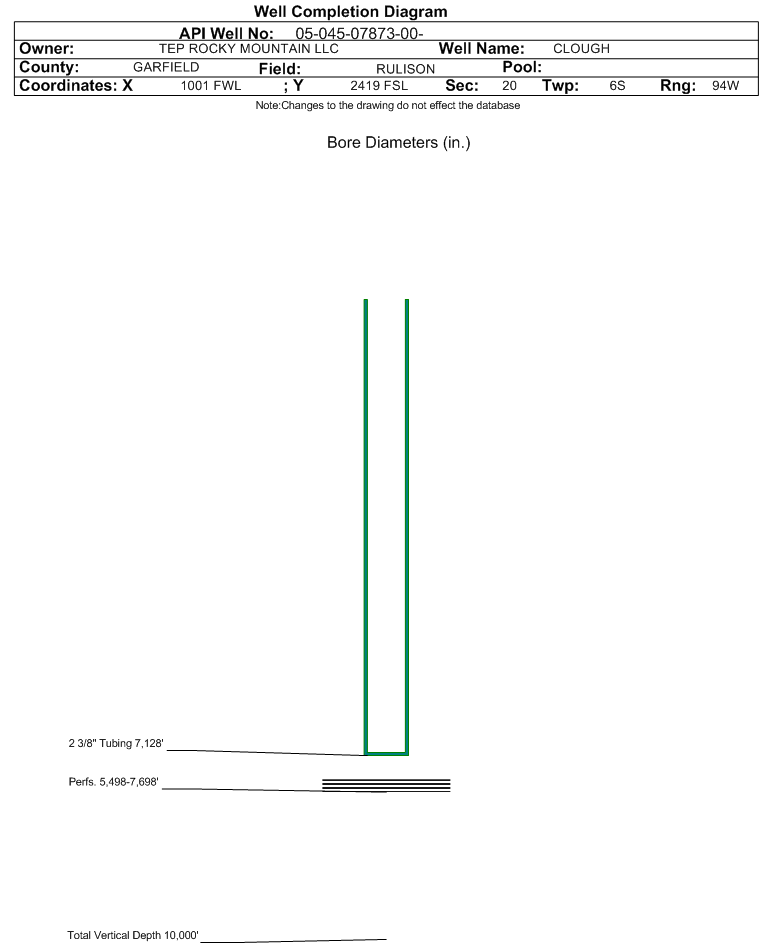

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07873		Well Classification: GW Status: PR - 8/22/2002
Well Name/No:CLOUGH #RWF 423-20
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date8/22/2002
FacilityID:260582LocationID:335212
County:GARFIELD #045Location:NWSW 20 6S94W 6
Field:RULISON - #75400Elevation:5479 ft.
Basin:PICEANCE BASIN
Planned Location:2419FSL  1001 FWLLat/Long: 39.509919 / -107.917651Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.509931 / -107.917726Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 8/22/2002             Measured TD:

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 8/22/2002
Wellbore PermitDIRECTIONAL
Permit #:20011342 Expiration Date:7/9/2002
Proposed Top PZ Location:Sec:20 Twp: 6S 94W Footage: 2469 FSL  1629 FWL
Bottom Hole Location:Sec:20 Twp: 6S 94W Footage: 2465 FSL  1680 FWL
Proposed Depth/Form:8000 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Wellbore Completed
Completion Date:N/A
Spud Date:8/24/2001Spud Date Is:ACTUAL
Measured TD:Measured PB depth:
True Vertical TD:True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 2452 FSL  1678 FWL
Bottom Hole Location:Sec: Twp: Footage: 2529 FSL  1741 FWL

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 8/22/2002                 Interval Top: 5498 ft.    Interval Bottom: 7698 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.219 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:4/25/2002
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:7128 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/25/2002Test Method:
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
CALC_MCF_GAS 1109
CASING_PRESS 1523
TUBING_PRESS 1301
Perforation Data:
Interval Top:5498 ft.# Of Holes:108
Interval Bottom:7698 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)37
Total Gas Produced (MCF)17405
GOR470405
GOR DeterminationMCFE
Average BOE per Day8.329
Average MCFE per Day48.285

 Federal Financial Assurance  i

 Tribal Well  i No
