COGIS - WELL SCOUT CARD

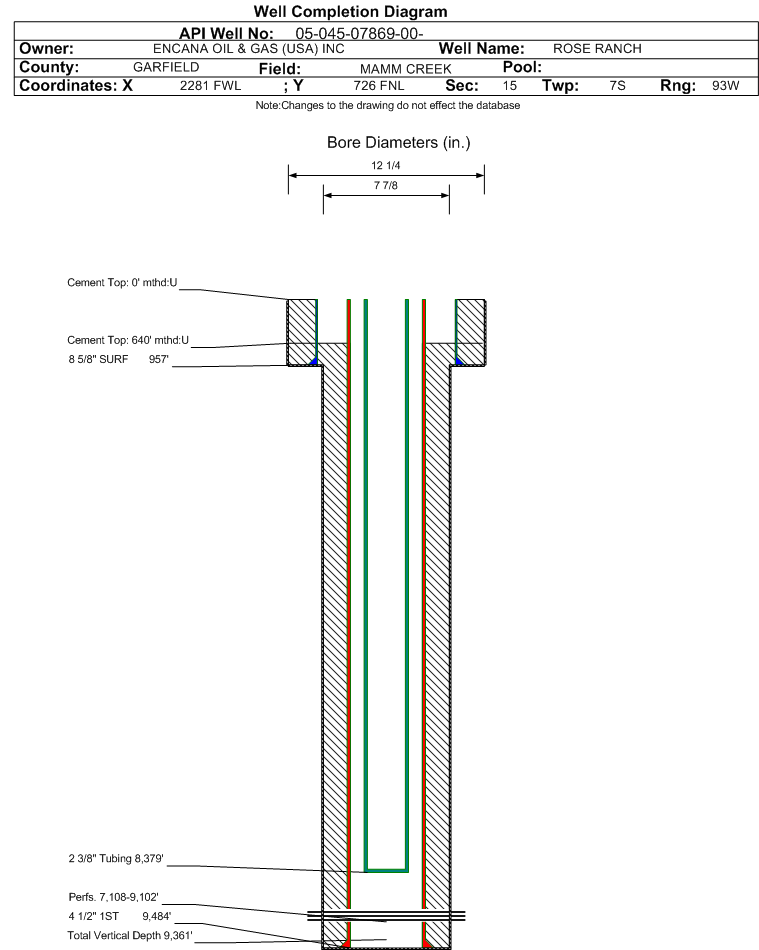

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07869		Well Classification: GW Status: PR - 5/9/2002
Well Name/No:ROSE RANCH #15-6(C15)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date5/9/2002
FacilityID:260572LocationID:334582
County:GARFIELD #045Location:NENW 15 7S93W 6
Field:MAMM CREEK - #52500Elevation:6993 ft.
Basin:PICEANCE BASIN
Planned Location:726FNL  2281 FWLLat/Long: 39.450731 / -107.761736Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.450860 / -107.761780Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 5/9/2002             Measured TD: 9480 ft.    Vertical TD: 9361 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 5/9/2002
Wellbore Permit
Permit #:011303 Expiration Date:7/5/2002
Proposed Top PZ Location:Sec: Twp: Footage: 1733 FNL  1998 FWL
Bottom Hole Location:Sec: Twp: Footage: 1980 FNL  1980 FWL
Proposed Depth/Form:9360 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit:HUNTER MESA UNI Unit Number:COC 55972E
Formation And Spacing:Code: RLNS , Formation: ROLLINS , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:5/20/2002
Spud Date:8/29/2001Spud Date Is:ACTUAL
Measured TD:9480 ft.Measured PB depth:9358 ft.
True Vertical TD:9361 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 1684 FNL  2039 FWL
Bottom Hole Location:Sec: Twp: Footage: 1880 FNL  2023 FWL
Log Types:CBL / GR / CCL, RST / GR / CCL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 957 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 450, Top: 0 ft., Bottom: 957 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 9484 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1310, Top: 640 ft., Bottom: 9484 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH0 ft.5943 ft.NN
WILLIAMS FORK5944 ft.8975 ft.NN
ROLLINS8976 ft.9480 ft.NN

Formation RLNS                     Formation Classification:  GW                     Status:  PR - 5/9/2002                  Interval Top: 7108 ft.    Interval Bottom: 9102 ft.

 Completed Information for Formation ROLLINS
1st Production Date:5/9/2002Choke Size:0.375 in.
Formation Name:ROLLINSCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:5/20/2002
Treatment Summary:STAGE 1: ACID BALLOUT, 8990'-9102', 20 HOLES,.45" 1581 BBL KCL SLICKWATER, 181,000# 20/40 SAND. STAGE 2: ACID BALLOUT, 8604'-8824', 14 HOLES, .45", 1708 BBL KCL SLICKWATER, 224,000# 20/40 SAND. STAGE 3: ACID BALLOUT, 8069'-8404', 20 HOLES, .45", 2876 BBL KCL SLICKWATER, 88,10# 20/40 SAND. STAGE 4: ACID BALLOUT, 7650'-8011', 18 HOLES, .45", 3956 BBL KCL SLICKWATER, 141,000# 20/40 SAND.
Tubing Size:2.375 in.Tubing Setting Depth:8379 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/9/2002Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:
Test TypeMeasure
BBLS_H2O 1
BBLS_OIL 1
BTU_GAS 1170
CALC_BBLS_H2O 1
CALC_BBLS_OIL 1
CALC_GOR 195
CALC_MCF_GAS 195
CASING_PRESS 850
MCF_GAS 195
TUBING_PRESS 600
Perforation Data:
Interval Top:7108 ft.# Of Holes:72
Interval Bottom:9102 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)6
Total Gas Produced (MCF)7770
GOR1295000
GOR DeterminationMCFE
Average BOE per Day3.685
Average MCFE per Day21.385

 Federal Financial Assurance  i Y

 Tribal Well  i No
