COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07865		Well Classification: GW Status: SI - 10/1/2025
Well Name/No:BENZEL #36-9 (H-36)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:SIStatus Date10/1/2025
FacilityID:260546LocationID:334974
County:GARFIELD #045Location:SENE 36 6S93W 6
Field:MAMM CREEK - #52500Elevation:5926 ft.
Basin:PICEANCE BASIN
Planned Location:2029FNL  695 FELLat/Long: 39.484870 / -107.717085Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.485050 / -107.716980Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: SI - 10/1/2025             Measured TD: 7820 ft.    Vertical TD: 7635 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        SI - 10/1/2025
Wellbore Permit
Permit #:011272 Expiration Date:7/1/2002
Proposed Top PZ Location:Sec:36 Twp: 6S 93W Footage: 2145 FSL  660 FEL
Bottom Hole Location:Sec:36 Twp: 6S 93W Footage: 1980 FSL  660 FEL
Proposed Depth/Form:7325 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit:GRASS MESA UNIT Unit Number:COC55972E
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:1/14/2002
Spud Date:7/19/2001Spud Date Is:ACTUAL
Measured TD:7820 ft.Measured PB depth:
True Vertical TD:7635 ft.True Vertical PB depth:7570 ft.
Top PZ Location:Sec: Twp: Footage: 2875 FNL  964 FEL
Bottom Hole Location:Sec: Twp: Footage: 2110 FNL  953 FEL
Log Types:CBL/GR/CCL,RSTL/GR/CCL

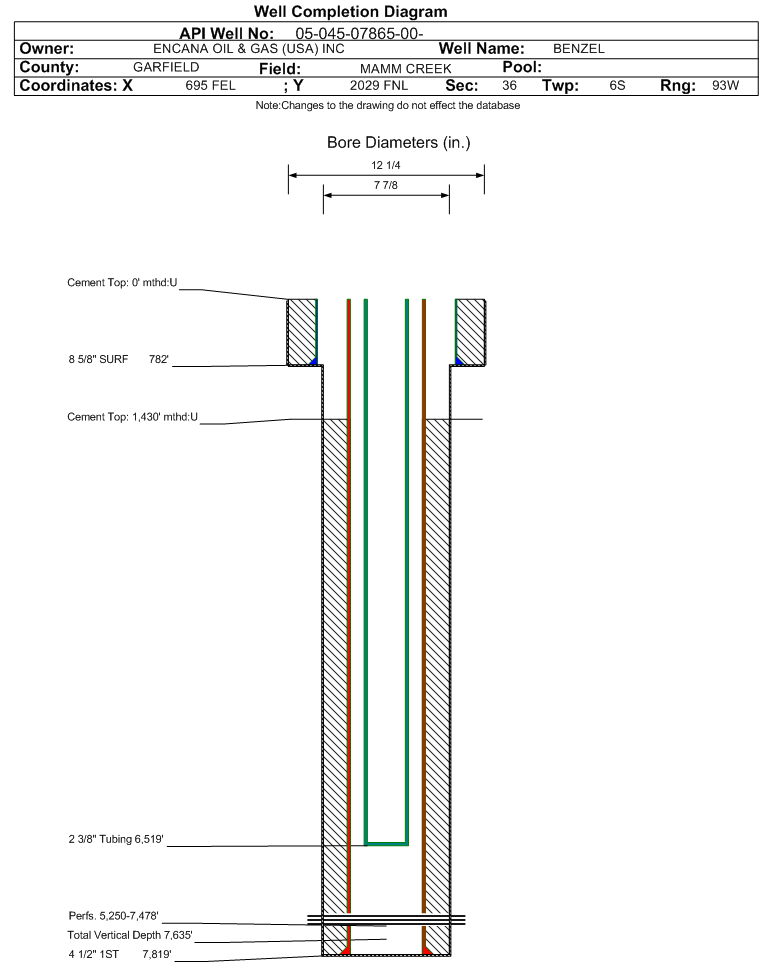

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 782 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 400, Top: 0 ft., Bottom: 782 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7819 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1060, Top: 1430 ft., Bottom: 7819 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH0 ft.4342 ft.NN
WILLIAMS FORK4343 ft.7426 ft.NN
ROLLINS7427 ft.7820 ft.NN

Formation RLNS                     Formation Classification:  GW                     Status:  SI - 10/1/2025                 Interval Top: 5250 ft.    Interval Bottom: 7478 ft.

 Completed Information for Formation ROLLINS
1st Production Date:10/30/2001Choke Size:0.375 in.
Formation Name:ROLLINSCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:1/14/2002
Treatment Summary:SEE SCANNED DOC# 1336806
Tubing Size:2.375 in.Tubing Setting Depth:6519 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/1/2002Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:
Test TypeMeasure
BBLS_H2O 55
BBLS_OIL 28
BTU_GAS 1170
CALC_BBLS_H2O 55
CALC_BBLS_OIL 28
CALC_GOR 32
CALC_MCF_GAS 908
CASING_PRESS 2040
MCF_GAS 908
TUBING_PRESS 1650
Perforation Data:
Interval Top:5250 ft.# Of Holes:132
Interval Bottom:7478 ft.Hole Size:
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
10/2024 - 09/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)278
GOR
GOR DeterminationMCFE
Average BOE per Day0.133
Average MCFE per Day0.772

 Federal Financial Assurance  i Y

 Tribal Well  i No
