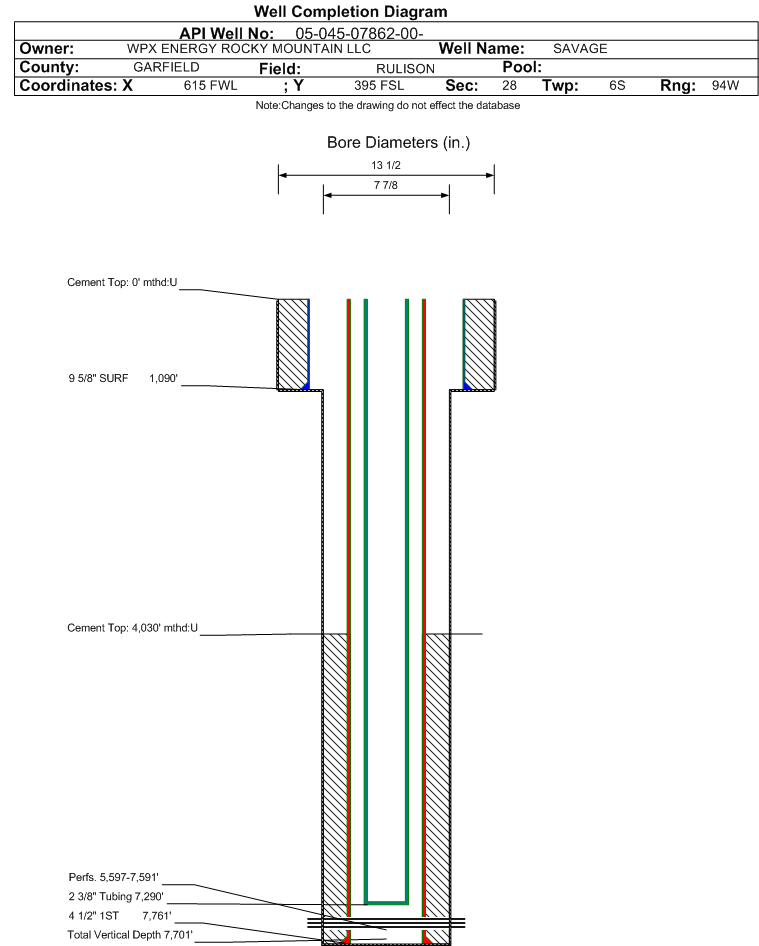

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07862		Well Classification: GW Status: PR - 2/5/2002
Well Name/No:SAVAGE #RWF 311-33
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date2/5/2002
FacilityID:260547LocationID:335282
County:GARFIELD #045Location:SWSW 28 6S94W 6
Field:RULISON - #75400Elevation:5536 ft.
Basin:PICEANCE BASIN
Planned Location:395FSL  615 FWLLat/Long: 39.490109 / -107.899930Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.490185 / -107.899880Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 2/5/2002             Measured TD: 7761 ft.    Vertical TD: 7701 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 2/5/2002
Wellbore Permit
Permit #:011269 Expiration Date:7/1/2002
Proposed Depth/Form:7830 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 479-7 , Unit Acreage: 320, Drill Unit: W2
Wellbore Completed
Completion Date:11/17/2001
Spud Date:9/4/2001Spud Date Is:ACTUAL
Measured TD:7761 ft.Measured PB depth:7690 ft.
True Vertical TD:7701 ft.True Vertical PB depth:7631 ft.
Top PZ Location:Sec: Twp: Footage: 302 FNL  654 FWL
Bottom Hole Location:Sec: Twp: Footage: 320 FNL  677 FWL
Log Types:THERMAL MULTIGATE DECAY LITHOLOGY&CBL
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1090 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 480, Top: , Bottom: 1090 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7761 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 770, Top: 4030 ft., Bottom: 7760 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
WASATCH G1809 ft.NN
MESAVERDE4255 ft.NN
CAMEO6935 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 2/5/2002                  Interval Top: 5597 ft.    Interval Bottom: 7591 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:11/16/2001Choke Size:0.219 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:11/17/2001
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:7290 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/18/2001Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
BTU_GAS 1821
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 1227
CASING_PRESS 1821
MCF_GAS 1227
TUBING_PRESS 0
Perforation Data:
Interval Top:5597 ft.# Of Holes:90
Interval Bottom:7591 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2025 - January 2026i
Total Oil Produced (Barrels)12
Total Gas Produced (MCF)10211
GOR850916
GOR DeterminationMCFE
Average BOE per Day4.860
Average MCFE per Day28.190

 Federal Financial Assurance  i

 Tribal Well  i No
