COGIS - WELL SCOUT CARD

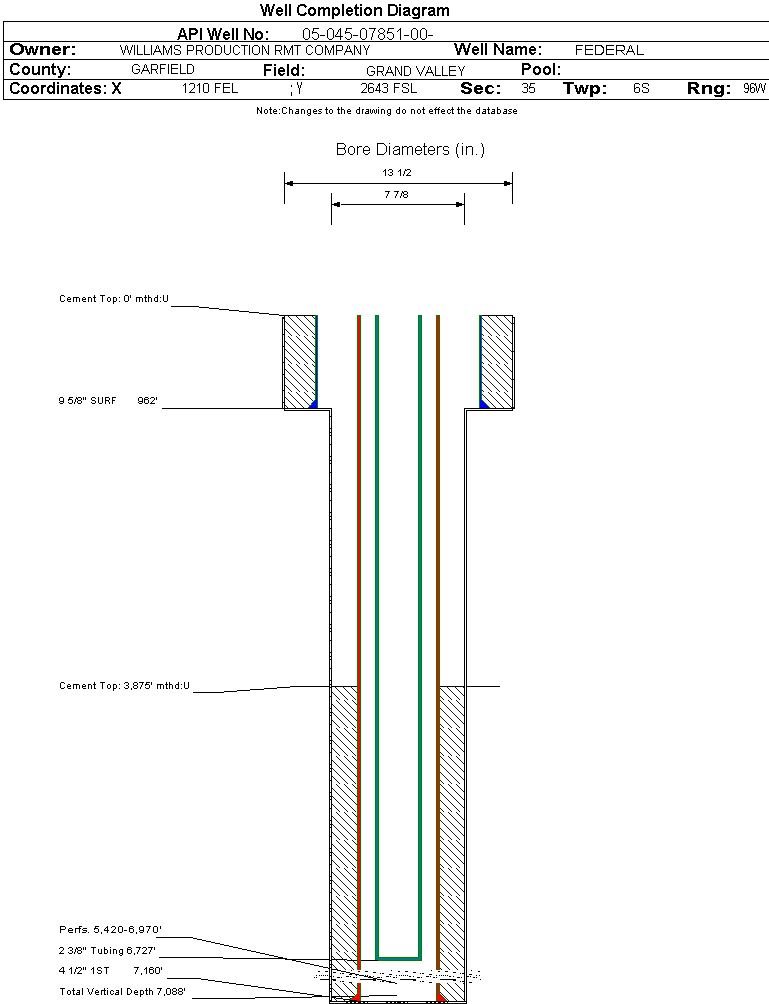

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07851		Well Classification: GW Status: PR - 6/13/2001
Well Name/No:FEDERAL #GM 33-35
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC50783
Facility Status:PRStatus Date6/13/2001
FacilityID:260369LocationID:335148
County:GARFIELD #045Location:NESE 35 6S96W 6
Field:GRAND VALLEY - #31290Elevation:5825 ft.
Basin:PICEANCE BASIN
Planned Location:2643FSL  1210 FELLat/Long: 39.480409 / -108.070955Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.480605 / -108.070955Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 6/4/2001             Measured TD: 7170 ft.    Vertical TD: 7088 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 6/4/2001
Wellbore Permit
Permit #:011139 Expiration Date:6/12/2002
Proposed Top PZ Location:Sec:35 Twp: 6S 96W Footage: 2268 FSL  1960 FEL
Bottom Hole Location:Sec:35 Twp: 6S 96W Footage: 2264 FSL  1996 FEL
Proposed Depth/Form:7160 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit: Unit Number:
Formation And Spacing:Code: WFCM , Formation: WILLIAMS FORK - CAMEO , Order: , Unit Acreage: 320, Drill Unit: S/2
Casing:String Type: CONDUCTOR, Hole Size: , Size: 16 in., Top: , Depth: 45 ft., Weight: , Citings Type: PLANNED
Cement:Sacks: , Top: , Bottom:
Wellbore Completed
Completion Date:7/20/2002
Spud Date:4/20/2002Spud Date Is:ACTUAL
Measured TD:7170 ft.Measured PB depth:7120 ft.
True Vertical TD:7088 ft.True Vertical PB depth:7038 ft.
Log Types:THERMAL UNLTIGATE DECAY LITHOLOGY
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 962 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 420, Top: 0 ft., Bottom: 962 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7160 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 760, Top: 3875 ft., Bottom: 7160 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH2366 ft.NN
FORT UNION2684 ft.NN
MESAVERDE4090 ft.NN
CAMEO6671 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 7/24/2002                 Interval Top: 5420 ft.    Interval Bottom: 6970 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:7/24/2002Choke Size:0.275 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:Yes
Formation Treatment
Treatment Date:7/20/2002
Treatment Summary:2350 GALS 7.5% HCL; 411,000# 20/40 SAND & 11,750 BBLS SLICK WATER
Tubing Size:2.375 in.Tubing Setting Depth:6727 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:7/24/2002Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1099
CALC_MCF_GAS 1604
CASING_PRESS 1859
TUBING_PRESS 0
Perforation Data:
Interval Top:5420 ft.# Of Holes:136
Interval Bottom:6970 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)25
Total Gas Produced (MCF)12840
GOR513600
GOR DeterminationMCFE
Average BOE per Day6.138
Average MCFE per Day35.585

 Federal Financial Assurance  i Y

 Tribal Well  i No
