COGIS - WELL SCOUT CARD

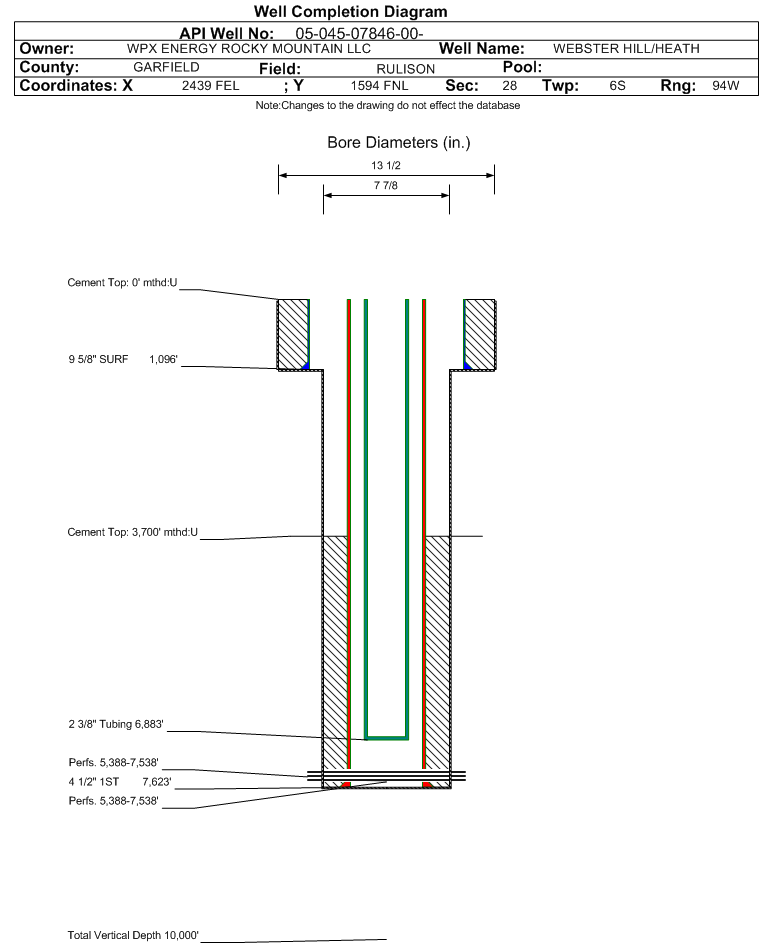

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07846		Well Classification: GW Status: PR - 4/23/2002
Well Name/No:WEBSTER HILL/HEATH #RMV 234-28
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date4/23/2002
FacilityID:260342LocationID:324164
County:GARFIELD #045Location:SWNE 28 6S94W 6
Field:RULISON - #75400Elevation:5317 ft.
Basin:PICEANCE BASIN
Planned Location:1594FNL  2439 FELLat/Long: 39.498999 / -107.892310Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.499126 / -107.892405Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 4/23/2002             Measured TD: 7634 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 4/23/2002
Wellbore Permit
Permit #:011123 Expiration Date:6/10/2002
Proposed Depth/Form:7730 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-33 , Unit Acreage: 320, Drill Unit: E2
Wellbore Completed
Completion Date:4/19/2002
Spud Date:2/23/2002Spud Date Is:ACTUAL
Measured TD:7634 ft.Measured PB depth:7606 ft.
True Vertical TD:True Vertical PB depth:
Log Types:
Log Types:DIL - GR - SP NEUTRON DESNITY
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1096 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 780, Top: 0 ft., Bottom: 1096 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7623 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 980, Top: 3700 ft., Bottom: 7623 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH1541 ft.NN
WASATCH G1541 ft.NN
MESAVERDE3922 ft.NN
CAMEO6687 ft.NN
ROLLINS7607 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 4/23/2002                 Interval Top: 5388 ft.    Interval Bottom: 7538 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.203 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:4/19/2002
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:6883 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/23/2002Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
BTU_GAS 1086
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 1495
CASING_PRESS 1295
MCF_GAS 1495
TUBING_PRESS 1352
Perforation Data:
Interval Top:5388 ft.# Of Holes:82
Interval Bottom:7538 ft.Hole Size:

Formation WMFK                     Formation Classification:  GW                     Status:  CM - 4/23/2002                 Interval Top: 5388 ft.    Interval Bottom: 7538 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:0.203 in.
Formation Name:WILLIAMS FORKCommingled:Yes
Production Method:FLOW
Open Hole Completion:No
Formation Treatment
Treatment Date:4/19/2002
Treatment Summary:TOP AT 7397':1000 GALS 7 1/2%HCL, 104,700#20/40 SAND,2433 BBLS SLICK WATER.TOP AT 6786':750 GALS 7 1/2% HCL ,57,500# 20/40 SAND; 1678 BBLS SLICK TOP:6334':750 GALS7/12%HCL 104,500#20/40 SND;2779 BBLS SLICK WATER; TOP 5890':750 GAL 7 1/2%HCL 114,000(CONT)
Tubing Size:2.375 in.Tubing Setting Depth:6883 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/23/2002Test Method:FLOW
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1086
CALC_MCF_GAS 1465
CASING_PRESS 1295
MCF_GAS 1465
TUBING_PRESS 1352
Perforation Data:
Interval Top:5388 ft.# Of Holes:14
Interval Bottom:7538 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2025 - January 2026i
Total Oil Produced (Barrels)17
Total Gas Produced (MCF)14246
GOR838000
GOR DeterminationMCFE
Average BOE per Day6.777
Average MCFE per Day39.316

 Federal Financial Assurance  i

 Tribal Well  i No
