COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07831		Well Classification: GW Status: PR - 2/1/2018
Well Name/No:FEDERAL #GM 12-4
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC24603
Facility Status:PRStatus Date2/1/2018
FacilityID:260203LocationID:334636
County:GARFIELD #045Location:SENW 4 7S96W 6
Field:GRAND VALLEY - #31290Elevation:5678 ft.
Basin:PICEANCE BASIN
Planned Location:1960FNL  1346 FWLLat/Long: 39.467728 / -108.117667Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.467867 / -108.117612Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 2/1/2018             Measured TD: 6384 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 2/1/2018
Wellbore Permit
Permit #:011034 Expiration Date:5/22/2002
Proposed Top PZ Location:Sec:4 Twp: 7S 96W Footage: 2112 FNL  611 FWL
Bottom Hole Location:Sec:4 Twp: 7S 96W Footage: 2149 FNL  541 FWL
Proposed Depth/Form:6710 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-35 , Unit Acreage: 320, Drill Unit: N2
Casing:String Type: CONDUCTOR, Hole Size: , Size: 16 in., Top: , Depth: 45 ft., Weight: , Citings Type: PLANNED
Cement:Sacks: , Top: , Bottom:
Wellbore Completed
Completion Date:3/15/2002
Spud Date:12/26/2001Spud Date Is:ACTUAL
Measured TD:6384 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 2153 FNL  598 FWL
Bottom Hole Location:Sec: Twp: Footage: 2148 FNL  529 FWL
Log Types:CBL

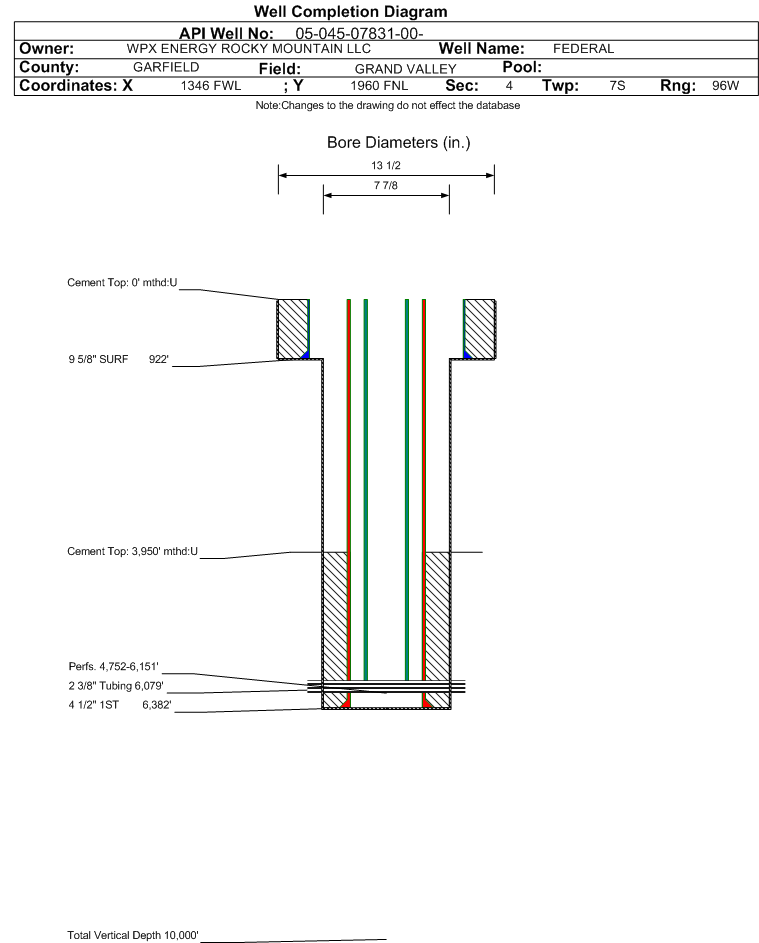

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 922 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 370, Top: 0 ft., Bottom: 922 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6382 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 700, Top: 3950 ft., Bottom: 6381 ft., Determination Method:
FormationInterval TopLog BottomCoredDSTs
WASATCH G1788 ft.NN
FORT UNION2120 ft.NN
MESAVERDE3364 ft.NN
CAMEO5838 ft.NN
ROLLINS6331 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 2/1/2018                  Interval Top: 4752 ft.    Interval Bottom: 6151 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.283 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:3/15/2002
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:6079 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/24/2002Test Method:
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1089
CALC_MCF_GAS 1250
CASING_PRESS 1377
MCF_GAS 1250
TUBING_PRESS 1223
Perforation Data:
Interval Top:4752 ft.# Of Holes:56
Interval Bottom:6151 ft.Hole Size:
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
12/2024 - 11/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)1
Total Gas Produced (MCF)1828
GOR1828000
GOR DeterminationMCFE
Average BOE per Day0.871
Average MCFE per Day5.025

 Federal Financial Assurance  i Y

 Tribal Well  i No
