COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07829		Well Classification: GW Status: SI - 12/1/2025
Well Name/No:FEDERAL #GM 42-36
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC62163
Facility Status:SIStatus Date12/1/2025
FacilityID:260201LocationID:335177
County:GARFIELD #045Location:SWNE 36 6S96W 6
Field:GRAND VALLEY - #31290Elevation:6037 ft.
Basin:PICEANCE BASIN
Planned Location:1653FNL  1340 FELLat/Long: 39.482379 / -108.053545Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.482252 / -108.053464Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.

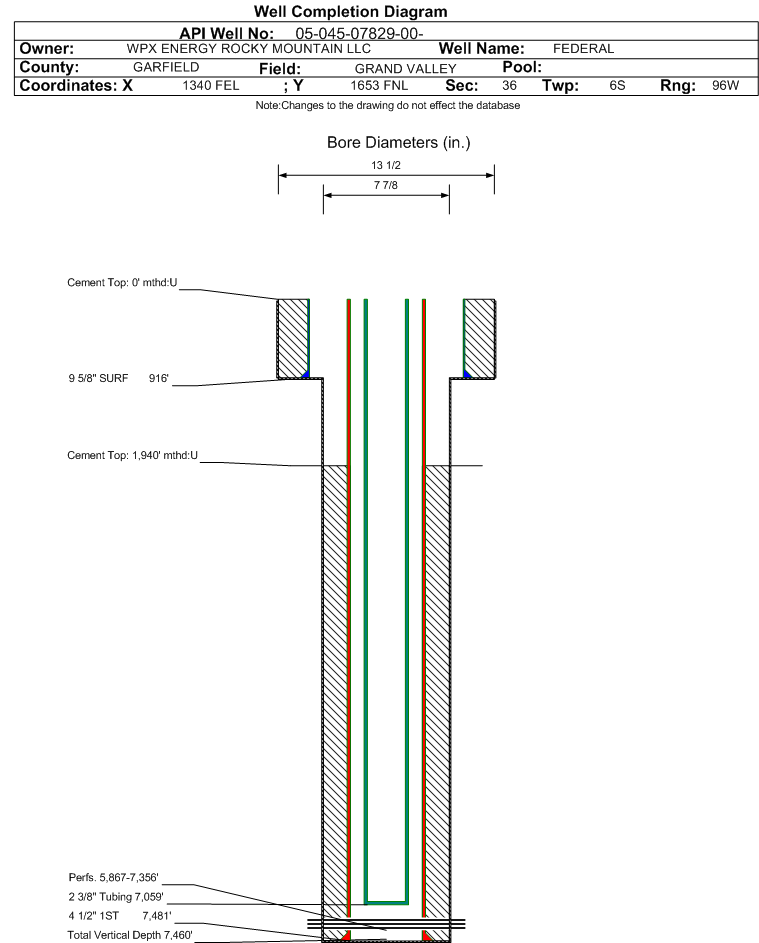

Wellbore #00             Wellbore Classification: GW             Status: SI - 12/1/2025             Measured TD: 7526 ft.    Vertical TD: 7460 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        SI - 12/1/2025
Wellbore Permit
Permit #:011032 Expiration Date:5/22/2002
Proposed Top PZ Location:Sec:36 Twp: 6S 96W Footage: 2151 FNL  742 FEL
Bottom Hole Location:Sec:36 Twp: 6S 96W Footage: 2222 FNL  668 FEL
Proposed Depth/Form:7410 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-35 , Unit Acreage: 160, Drill Unit: NE4
Casing:String Type: CONDUCTOR, Hole Size: , Size: 16 in., Top: , Depth: 45 ft., Weight: , Citings Type: PLANNED
Cement:Sacks: , Top: , Bottom:
Wellbore Completed
Completion Date:12/14/2000
Spud Date:9/5/2001Spud Date Is:ACTUAL
Measured TD:7526 ft.Measured PB depth:7400 ft.
True Vertical TD:7460 ft.True Vertical PB depth:7334 ft.
Top PZ Location:Sec: Twp: Footage: 2151 FNL  742 FEL
Bottom Hole Location:Sec: Twp: Footage: 2179 FNL  668 FEL
Log Types:THERMAL DECAY MULTIGATE LITHOLOGY
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 916 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 400, Top: 0 ft., Bottom: 916 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7481 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 845, Top: 1940 ft., Bottom: 7481 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G2392 ft.NN
FORT UNION2756 ft.NN
MESAVERDE4386 ft.NN
CAMEO6936 ft.NN
ROLLINS7483 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  SI - 12/1/2025                 Interval Top: 5867 ft.    Interval Bottom: 7356 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.203 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:12/14/2000
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:7059 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/1/2002Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 1700
CASING_PRESS 2150
MCF_GAS 1700
TUBING_PRESS 2050
Perforation Data:
Interval Top:5867 ft.# Of Holes:70
Interval Bottom:7356 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)19
Total Gas Produced (MCF)15353
GOR808052
GOR DeterminationMCFE
Average BOE per Day7.314
Average MCFE per Day42.448

 Federal Financial Assurance  i Y

 Tribal Well  i No
