Wellbore #00 Wellbore Classification: GW Status: SI - 12/1/2025 Measured TD: 7518 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW SI - 12/1/2025 | | Wellbore Permit | | | Permit #: | 011019 | Expiration Date: | 5/22/2002 | | Proposed Top PZ Location: | Sec:36 Twp: 6S 96W | Footage: 1023 FNL 1878 FEL | | Bottom Hole Location: | Sec:36 Twp: 6S 96W | Footage: 982 FNL 1947 FEL | | Proposed Depth/Form: | 7470 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-28 , Unit Acreage: 160, Drill Unit: NE4 | | Casing: | String Type: CONDUCTOR, Hole Size: , Size: 16 in., Top: , Depth: 45 ft., Weight: , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |

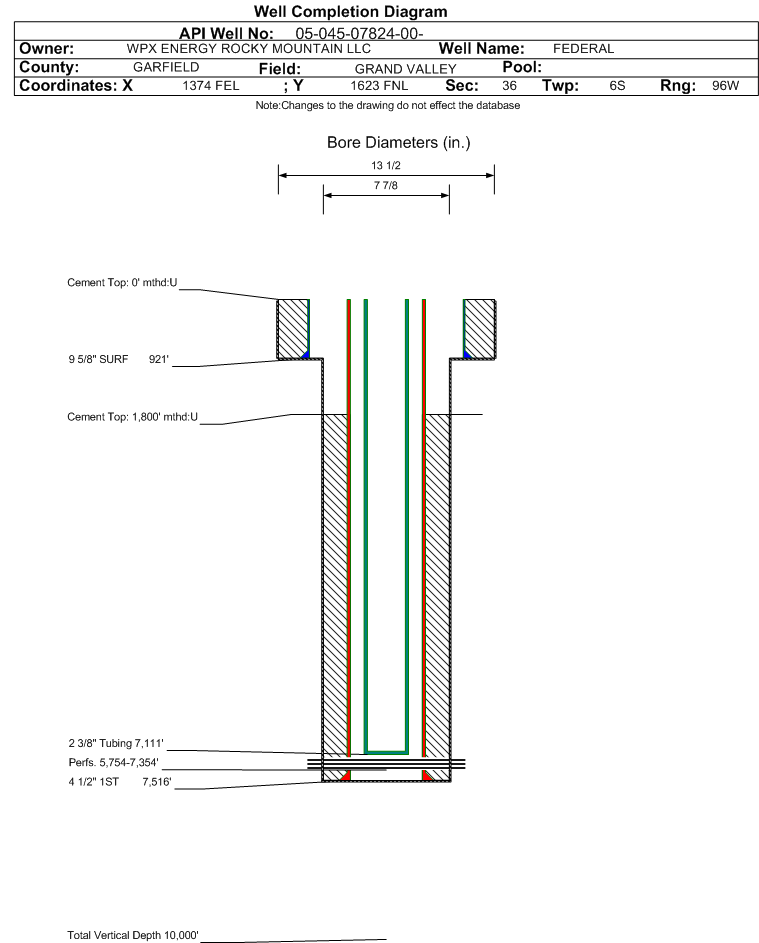

| Wellbore Completed | | Completion Date: | N/A | | Spud Date: | 8/4/2001 | Spud Date Is: | ACTUAL | | Measured TD: | 7518 ft. | Measured PB depth: | | | True Vertical TD: | | True Vertical PB depth: | | | Top PZ Location: | Sec: Twp: | Footage: 1023 FNL 1878 FEL | | Bottom Hole Location: | Sec: Twp: | Footage: 1094 FNL 1972 FEL | | Log Types: | THERMAL DECAY MULTIGATE LITHOLOGY | | Log Types: | THERMAL DECAY MULTIGATE LITHOLOGY | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 921 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 400, Top: , Bottom: 921 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7516 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 895, Top: 1800 ft., Bottom: 7515 ft., Determination Method: CALC | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 2341 ft. | | N | N | | FORT UNION | 2711 ft. | | N | N | | MESAVERDE | 4341 ft. | | N | N | | CAMEO COAL | 6931 ft. | | N | N | | ROLLINS | 7451 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: SI - 12/1/2025 Interval Top: 5754 ft. Interval Bottom: 7354 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | N/A | Choke Size: | 0.172 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | FLOWING | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 11/17/2001 | | Treatment Summary: | |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7111 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 11/17/2001 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 0 | | BBLS_OIL | 0 | | BTU_GAS | 1089 | | CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 0 | | CALC_MCF_GAS | 1616 | | CASING_PRESS | 1822 | | MCF_GAS | 1616 | | TUBING_PRESS | 1692 |
| | Perforation Data: | | Interval Top: | 5754 ft. | # Of Holes: | 80 | | Interval Bottom: | 7354 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 10 |
| Total Gas Produced (MCF) | 7966 |
| GOR | 796600 |
| GOR Determination | MCFE |
| Average BOE per Day | 3.803 |
| Average MCFE per Day | 22.068 |
| Federal Financial Assurance | i | Y |
|
|
