COGIS - WELL SCOUT CARD

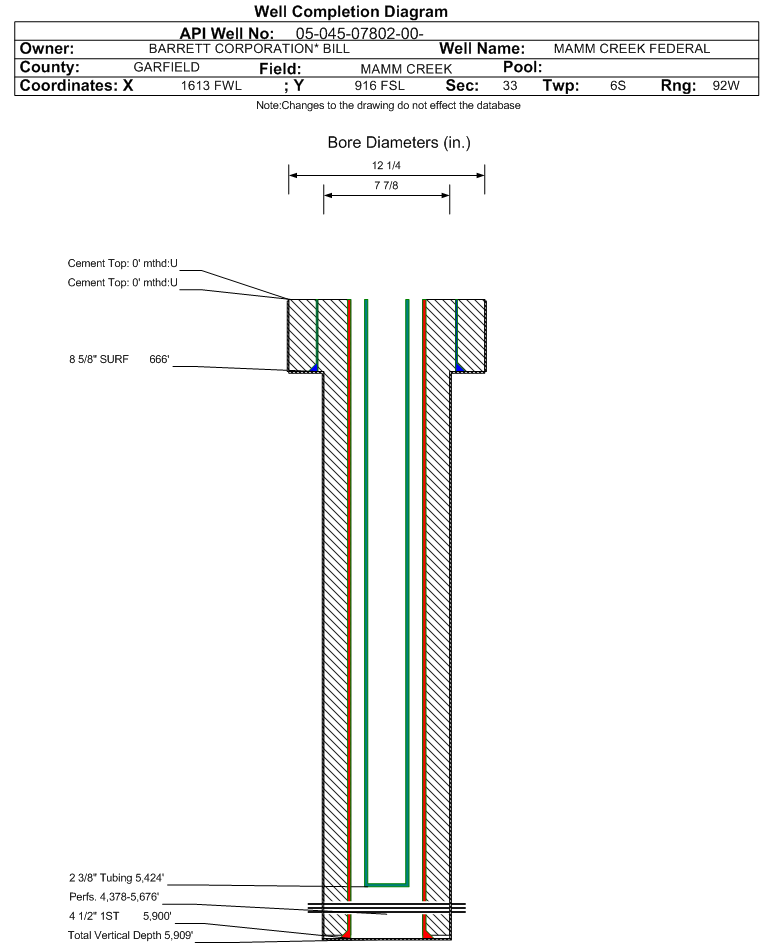

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07802		Well Classification: GW Status: PR - 10/4/2001
Well Name/No:MAMM CREEK FEDERAL #14-33
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC56027
Facility Status:PRStatus Date10/4/2001
FacilityID:259933LocationID:334694
County:GARFIELD #045Location:SESW 33 6S92W 6
Field:MAMM CREEK - #52500Elevation:5925 ft.
Basin:PICEANCE BASIN
Planned Location:916FSL  1613 FWLLat/Long: 39.478641 / -107.675043Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.479164 / -107.675272Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 10/4/2001             Measured TD: 5945 ft.    Vertical TD: 5909 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 10/4/2001
Wellbore Permit
Permit #:010793 Expiration Date:4/26/2002
Proposed Top PZ Location:Sec:33 Twp: 6S 92W Footage: 609 FSL  2013 FWL
Bottom Hole Location:Sec:33 Twp: 6S 92W Footage: 609 FSL  2013 FWL
Proposed Depth/Form:6336 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEDERALSurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:6/9/2001
Spud Date:5/30/2001Spud Date Is:ACTUAL
Measured TD:5945 ft.Measured PB depth:5900 ft.
True Vertical TD:5909 ft.True Vertical PB depth:5864 ft.
Top PZ Location:Sec: Twp: Footage: 648 FSL  2026 FWL
Bottom Hole Location:Sec: Twp: Footage: 610 FSL  2048 FWL
Log Types:DIL / SDL / DSN, CBL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 666 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 320, Top: 0 ft., Bottom: 666 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 5900 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 995, Top: 0 ft., Bottom: 5870 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
WASATCH0 ft.2735 ft.NN
OHIO CREEK2735 ft.3230 ft.NN
WILLIAMS FORK3230 ft.NN

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 12/10/2008                Interval Top: 4378 ft.    Interval Bottom: 5676 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:0.219 in.
Formation Name:WILLIAMS FORKCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:6/9/2001
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:5424 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/4/2001Test Method:
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 10
BBLS_OIL 95
BTU_GAS 1190
CASING_PRESS 1650
MCF_GAS 955
TUBING_PRESS 1400
Perforation Data:
Interval Top:4378 ft.# Of Holes:57
Interval Bottom:5676 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)60
Total Gas Produced (MCF)12594
GOR209900
GOR DeterminationMCFE
Average BOE per Day6.117
Average MCFE per Day35.469

 Federal Financial Assurance  i Y

 Tribal Well  i No
