COGIS - WELL SCOUT CARD

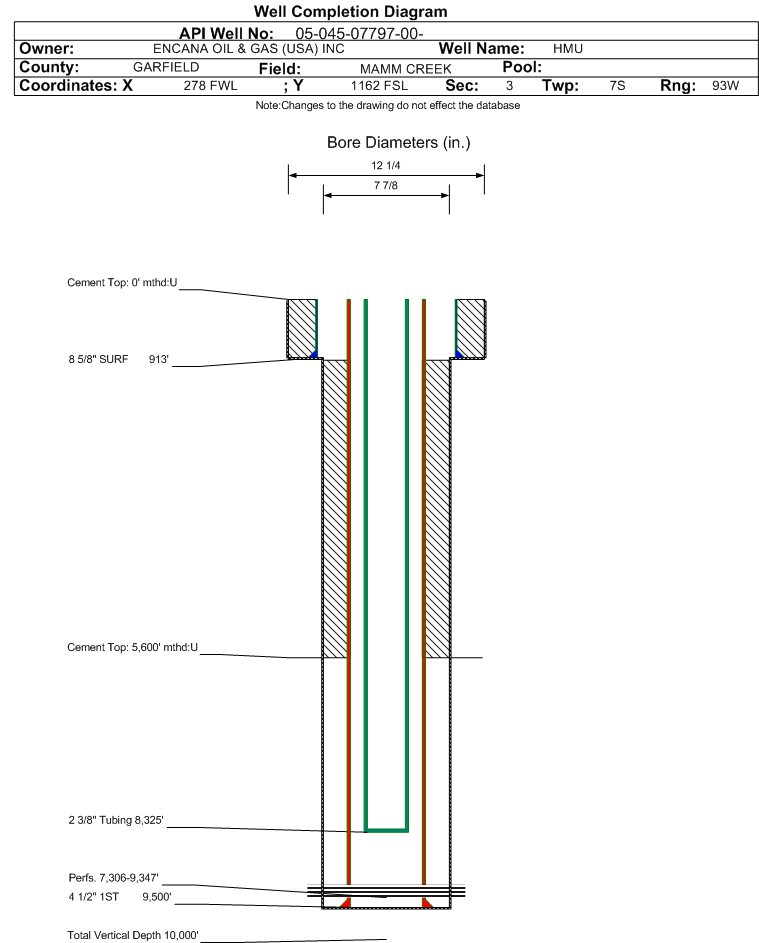

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07797		Well Classification: GW Status: PR - 12/20/2001
Well Name/No:HMU #9-1 (M3)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date12/20/2001
FacilityID:259906LocationID:334581
County:GARFIELD #045Location:SWSW 3 7S93W 6
Field:MAMM CREEK - #52500Elevation:6882 ft.
Basin:PICEANCE BASIN
Planned Location:1162FSL  278 FWLLat/Long: 39.470450 / -107.768926Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.470540 / -107.769000Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 12/20/2001             Measured TD:

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 12/20/2001
Wellbore Permit
Permit #:010776 Expiration Date:4/26/2002
Proposed Top PZ Location:Sec:9 Twp: 7S 93W Footage: 521 FNL  603 FEL
Bottom Hole Location:Sec:9 Twp: 7S 93W Footage: 660 FNL  660 FEL
Proposed Depth/Form:8300 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEDERALSurface Owner:FEE
Unit:HUNTER MESA UNI Unit Number:COC55972X
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:2/12/2002
Spud Date:7/28/2001Spud Date Is:ACTUAL
Measured TD:Measured PB depth:
True Vertical TD:True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 18 FNL  610 FWL
Bottom Hole Location:Sec: Twp: Footage: 343 FNL  877 FWL
Log Types:
Log Types:C B L / G R / C C L
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 913 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 450, Top: 0 ft., Bottom: 913 ft., Determination Method: CBL
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 9500 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1810, Top: 5600 ft., Bottom: 950 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH0 ft.6073 ft.NN
WILLIAMS FORK6074 ft.9216 ft.NN
ROLLINS9217 ft.9500 ft.NN

Formation RLNS                     Formation Classification:  GW                     Status:  PR - 12/20/2001                Interval Top: 7306 ft.    Interval Bottom: 9347 ft.

 Completed Information for Formation ROLLINS
1st Production Date:12/20/2001Choke Size:0.375 in.
Formation Name:ROLLINSCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:2/12/2002
Treatment Summary:SEE SCANNED DOC# 1336618
Tubing Size:2.375 in.Tubing Setting Depth:8325 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/22/2001Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:
Test TypeMeasure
BBLS_H2O 155
BBLS_OIL 3
BTU_GAS 1170
CALC_BBLS_H2O 155
CALC_BBLS_OIL 3
CALC_GOR 168
CALC_MCF_GAS 503
CASING_PRESS 2000
MCF_GAS 503
TUBING_PRESS 1800
Perforation Data:
Interval Top:7306 ft.# Of Holes:62
Interval Bottom:9347 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)102
Total Gas Produced (MCF)12728
GOR124784
GOR DeterminationMCFE
Average BOE per Day6.271
Average MCFE per Day36.383

 Federal Financial Assurance  i Y

 Tribal Well  i No
