Wellbore #00 Wellbore Classification: GW Status: PR - 3/23/2001 Measured TD: 6398 ft. Vertical TD: 6344 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 3/23/2001 | | Wellbore Permit | | | Permit #: | 010628 | Expiration Date: | 4/8/2002 | | Proposed Top PZ Location: | Sec:1 Twp: 7S 96W | Footage: 1078 FSL 1982 FWL | | Bottom Hole Location: | Sec:1 Twp: 7S 96W | Footage: 832 FSL 1997 FWL | | Proposed Depth/Form: | 6500 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 479-7 , Unit Acreage: 320, Drill Unit: S2 |
| | |

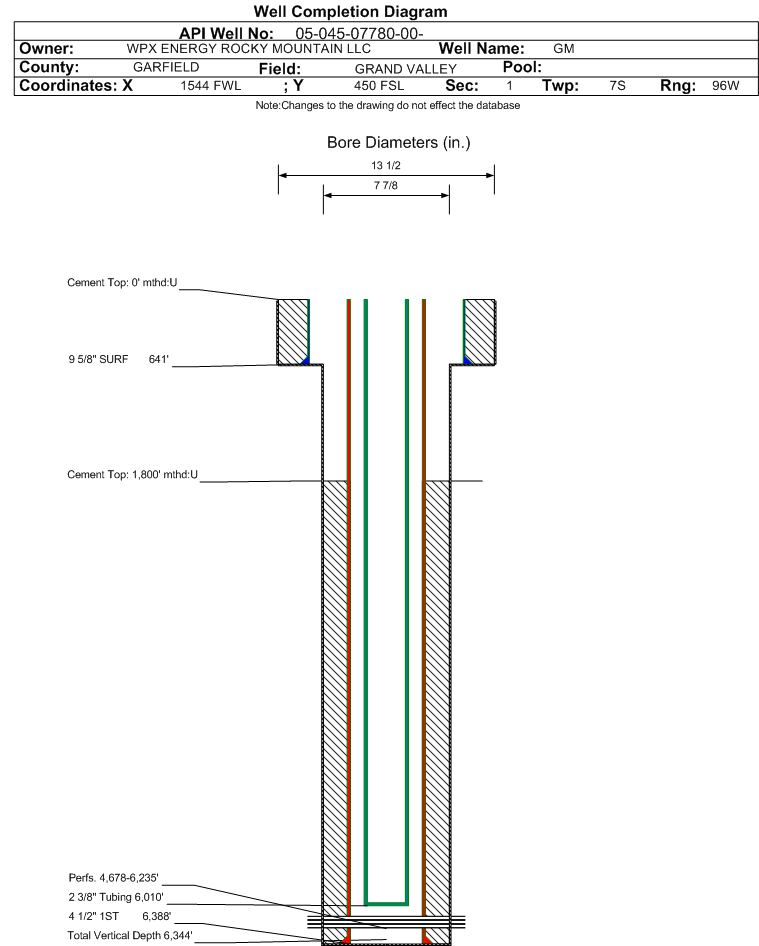

| Wellbore Completed | | Completion Date: | 12/17/2001 | | Spud Date: | 10/18/2001 | Spud Date Is: | ACTUAL | | Measured TD: | 6398 ft. | Measured PB depth: | 6352 ft. | | True Vertical TD: | 6344 ft. | True Vertical PB depth: | 6298 ft. | | Top PZ Location: | Sec: Twp: | Footage: 776 FSL 2102 FWL | | Bottom Hole Location: | Sec: Twp: | Footage: 748 FSL 2093 FEL | | Log Types: | THERMAL MULTIGATE DECAY LITHOLOGY AND CBL | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 641 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 380, Top: , Bottom: 641 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6388 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 820, Top: 1800 ft., Bottom: 6388 ft., Determination Method: | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 1416 ft. | | N | N | | FORT UNION | 1746 ft. | | N | N | | MESAVERDE | 3283 ft. | | N | N | | CAMEO COAL | 5816 ft. | | N | N | | ROLLINS | 6320 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 3/23/2001 Interval Top: 4678 ft. Interval Bottom: 6235 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | N/A | Choke Size: | 0.313 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | FLOWING | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 12/17/2001 | | Treatment Summary: | |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6010 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 12/23/2001 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 0 | | BBLS_OIL | 0 | | BTU_GAS | 1045 | | CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 0 | | CALC_MCF_GAS | 1755 | | CASING_PRESS | 1847 | | MCF_GAS | 1755 | | TUBING_PRESS | 1755 |
| | Perforation Data: | | Interval Top: | 4678 ft. | # Of Holes: | 66 | | Interval Bottom: | 6235 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 12 |
| Total Gas Produced (MCF) | 9656 |
| GOR | 804666 |
| GOR Determination | MCFE |
| Average BOE per Day | 4.598 |
| Average MCFE per Day | 26.654 |
| Federal Financial Assurance | i | |
|
|
