Wellbore #00 Wellbore Classification: GW Status: PR - 3/28/2001 Measured TD: 6797 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 3/28/2001 | | Wellbore Permit | | | Permit #: | 010614 | Expiration Date: | 4/4/2002 | | Proposed Depth/Form: | 7220 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 479-7 , Unit Acreage: 160, Drill Unit: SW4 |
| | |

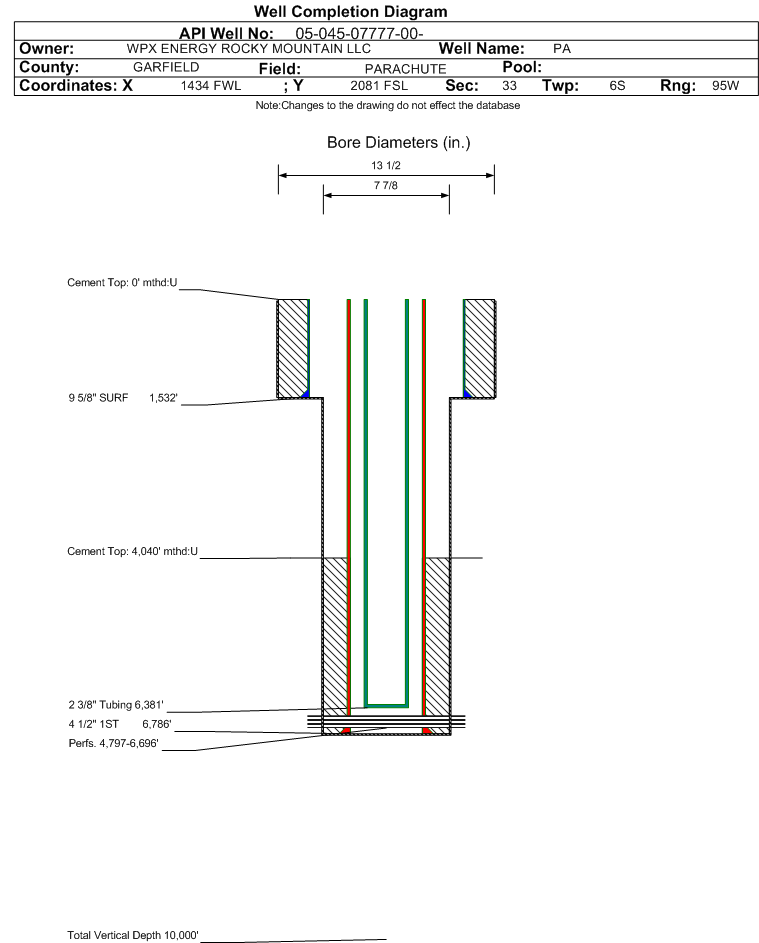

| Wellbore Completed | | Completion Date: | 8/10/2001 | | Spud Date: | 6/3/2001 | Spud Date Is: | ACTUAL | | Measured TD: | 6797 ft. | Measured PB depth: | 6732 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | THERMAL MULTIGATE DECAY LITHOLOGY | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1532 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 570, Top: 0 ft., Bottom: 1532 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6786 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 800, Top: 4040 ft., Bottom: 6786 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 1303 ft. | | N | N | | FORT UNION | 1638 ft. | | N | N | | MESAVERDE | 3401 ft. | | N | N | | CAMEO COAL | 6247 ft. | | N | N | | ROLLINS | 6750 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 3/28/2001 Interval Top: 4797 ft. Interval Bottom: 6696 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | N/A | Choke Size: | 0.203 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | FLOWING | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 8/10/2001 | | Treatment Summary: | 1000 GALS 7.5% HCL; 190,060# 20/40 SAND & 3436 BBLS FLUID.; ALL PERF AT A,B,C,D,E; ARE 4797' TOP 6696' BOTTOM W/90 HOLES AT SIZE .34",((B)6116'-6370);(C)05848'-6050')(D) 5294'-5671(E)4797'-5073' |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6381 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 8/15/2001 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 0 | | BBLS_OIL | 0 | | CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 0 | | CALC_MCF_GAS | 1521 | | CASING_PRESS | 2225 | | MCF_GAS | 1521 | | TUBING_PRESS | 1960 |
| | Perforation Data: | | Interval Top: | 4797 ft. | # Of Holes: | 90 | | Interval Bottom: | 6696 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 25 |
| Total Gas Produced (MCF) | 14366 |
| GOR | 574640 |
| GOR Determination | MCFE |
| Average BOE per Day | 6.854 |
| Average MCFE per Day | 39.758 |
| Federal Financial Assurance | i | |
|
|
