COGIS - WELL SCOUT CARD

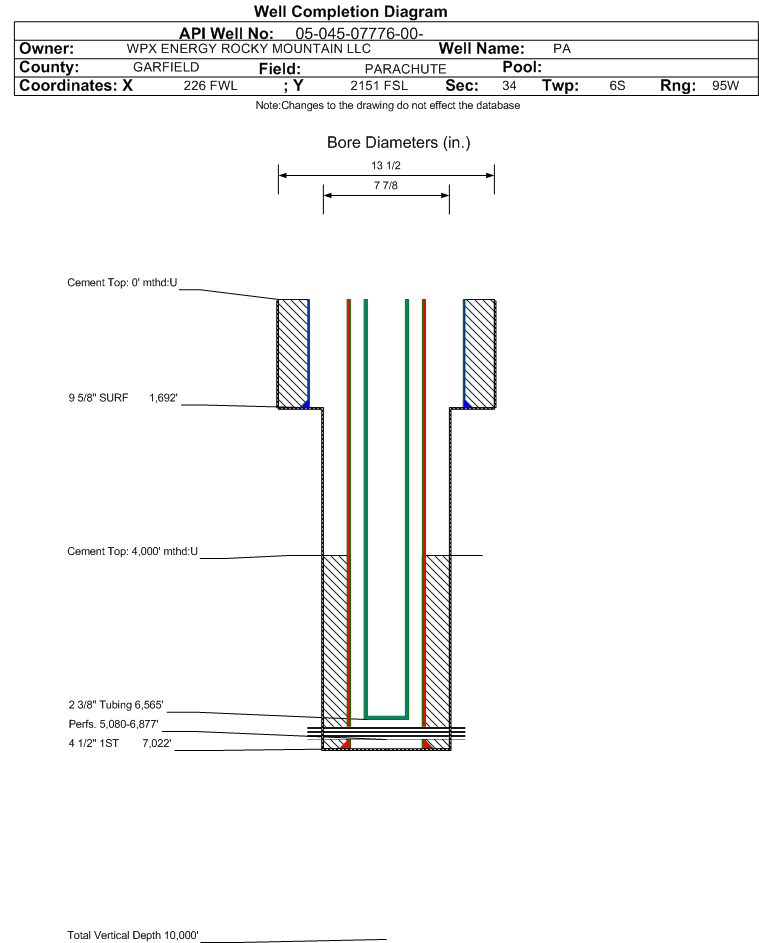

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07776		Well Classification: GW Status: PR - 4/5/2001
Well Name/No:PA #13-34
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date4/5/2001
FacilityID:259730LocationID:335436
County:GARFIELD #045Location:NWSW 34 6S95W 6
Field:PARACHUTE - #67350Elevation:5315 ft.
Basin:PICEANCE BASIN
Planned Location:2151FSL  226 FWLLat/Long: 39.479699 / -107.993023Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.479356 / -107.992949Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 3/26/2001             Measured TD: 7033 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 3/26/2001
Wellbore Permit
Permit #:010613 Expiration Date:4/4/2002
Proposed Depth/Form:7370 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 479-7 , Unit Acreage: 320, Drill Unit: S2
Casing:String Type: CONDUCTOR, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 1680 ft., Weight: 32.3 , Citings Type: PLANNED
Cement:Sacks: 850, Top: 0 ft., Bottom: 1680 ft.
Wellbore Completed
Completion Date:8/31/2001
Spud Date:6/21/2001Spud Date Is:ACTUAL
Measured TD:7033 ft.Measured PB depth:6954 ft.
True Vertical TD:True Vertical PB depth:
Log Types:THERMAL MULIGATE DECAY LITHOLOGY AND CEMENT BOND LOG
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1692 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 625, Top: , Bottom: 1692 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7022 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 900, Top: 4000 ft., Bottom: 7022 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1478 ft.NN
FORT UNION1778 ft.NN
MESAVERDE3651 ft.NN
CAMEO COAL6393 ft.NN
ROLLINS6931 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 3/26/2001                 Interval Top: 5080 ft.    Interval Bottom: 6877 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.203 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:8/31/2001
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:6565 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/2/2001Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 1395
CASING_PRESS 2205
MCF_GAS 1395
TUBING_PRESS 2090
Perforation Data:
Interval Top:5080 ft.# Of Holes:88
Interval Bottom:6877 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)15
Total Gas Produced (MCF)12216
GOR814400
GOR DeterminationMCFE
Average BOE per Day5.814
Average MCFE per Day33.719

 Federal Financial Assurance  i

 Tribal Well  i No
