COGIS - WELL SCOUT CARD

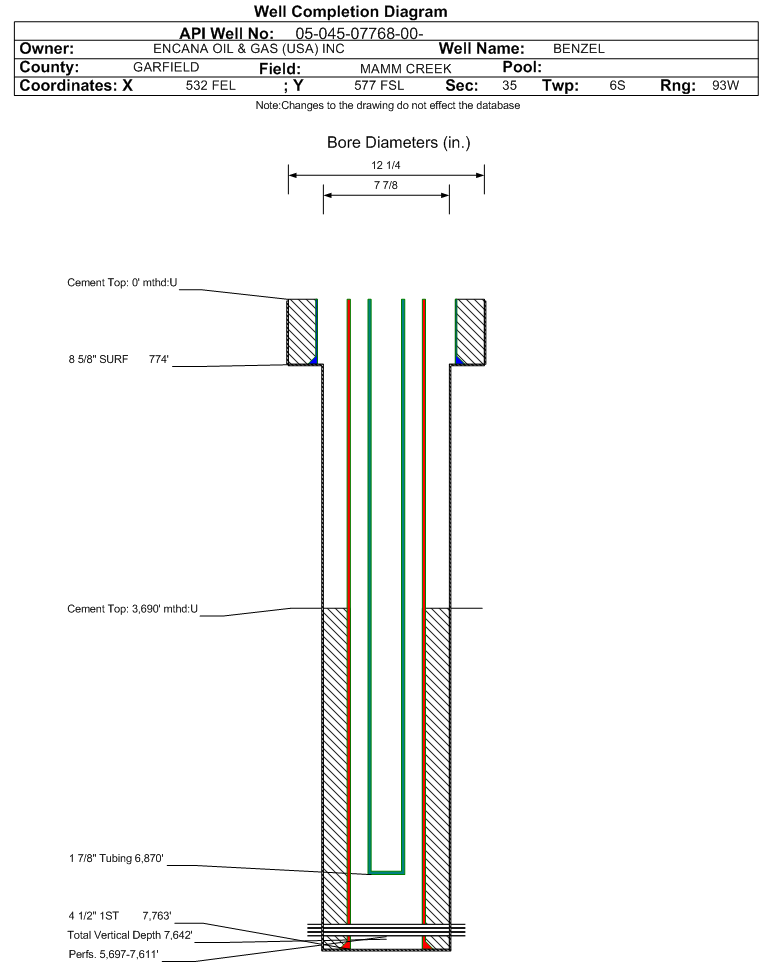

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07768		Well Classification: GW Status: SI - 8/1/2025
Well Name/No:BENZEL #36-13 (P35)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:SIStatus Date8/1/2025
FacilityID:259713LocationID:334890
County:GARFIELD #045Location:SESE 35 6S93W 6
Field:MAMM CREEK - #52500Elevation:6076 ft.
Basin:PICEANCE BASIN
Planned Location:577FSL  532 FELLat/Long: 39.477380 / -107.735195Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.477320 / -107.735150Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: SI - 8/1/2025             Measured TD: 7805 ft.    Vertical TD: 7642 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        SI - 8/1/2025
Wellbore Permit
Permit #:010602 Expiration Date:4/3/2002
Proposed Top PZ Location:Sec:36 Twp: 6S 93W Footage: 650 FSL  515 FWL
Bottom Hole Location:Sec:36 Twp: 6S 93W Footage: 660 FSL  660 FWL
Proposed Depth/Form:6900 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit:GRASS MESA UNIT Unit Number:COC56608X
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:11/28/2001
Spud Date:6/3/2001Spud Date Is:ACTUAL
Measured TD:7805 ft.Measured PB depth:7722 ft.
True Vertical TD:7642 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 650 FSL  515 FWL
Bottom Hole Location:Sec: Twp: Footage: 641 FSL  801 FWL
Log Types:RST/GR/CCL/CBL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 774 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 400, Top: 0 ft., Bottom: 774 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7763 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1000, Top: 3690 ft., Bottom: 7763 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WILLIAMS FORK4572 ft.NN

Formation WMFK                     Formation Classification:  GW                     Status:  SI - 8/1/2025                  Interval Top: 5697 ft.    Interval Bottom: 7611 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:0.375 in.
Formation Name:WILLIAMS FORKCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:11/28/2001
Treatment Summary:STAGE 1; 7355'-7611', 18 HOLES,.34",2979 BBLS SLICKWATER, 121,580# 20/40 SAND. ACID BALLOUT; 24 BBL 7 1/2% HCL W/32 7/8" 1.1S.G. BALLSEALERS. RETRIEVED 32/32 STAGE 2;7042' -7286',18 HOLES,0.34",2848 BBLS SLICKWATER,80,511# 20/40 SAND. ACID BALLOUT; 24 BBL
Tubing Size:1.9 in.Tubing Setting Depth:6870 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:8/27/2001Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 126
BBLS_OIL 12
BTU_GAS 1170
CALC_BBLS_H2O 126
CALC_BBLS_OIL 12
CALC_GOR 108
CALC_MCF_GAS 1299
CASING_PRESS 1450
MCF_GAS 1299
Perforation Data:
Interval Top:5697 ft.# Of Holes:90
Interval Bottom:7611 ft.Hole Size:
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
10/2024 - 09/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)15
GOR
GOR DeterminationMCFE
Average BOE per Day0.008
Average MCFE per Day0.040

 Federal Financial Assurance  i Y

 Tribal Well  i No
