Wellbore #00 Wellbore Classification: GW Status: PR - 1/1/2024 Measured TD: 7538 ft. Vertical TD: 7311 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 1/1/2024 | | Wellbore Permit | | | Permit #: | 010531 | Expiration Date: | 3/20/2002 | | Proposed Top PZ Location: | Sec:31 Twp: 6S 96W | Footage: 2080 FWL 4493 FSL | | Proposed Depth/Form: | 7700 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CMEO , Formation: CAMEO , Order: 510-1 , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-1 , Unit Acreage: , Drill Unit: |
| | |

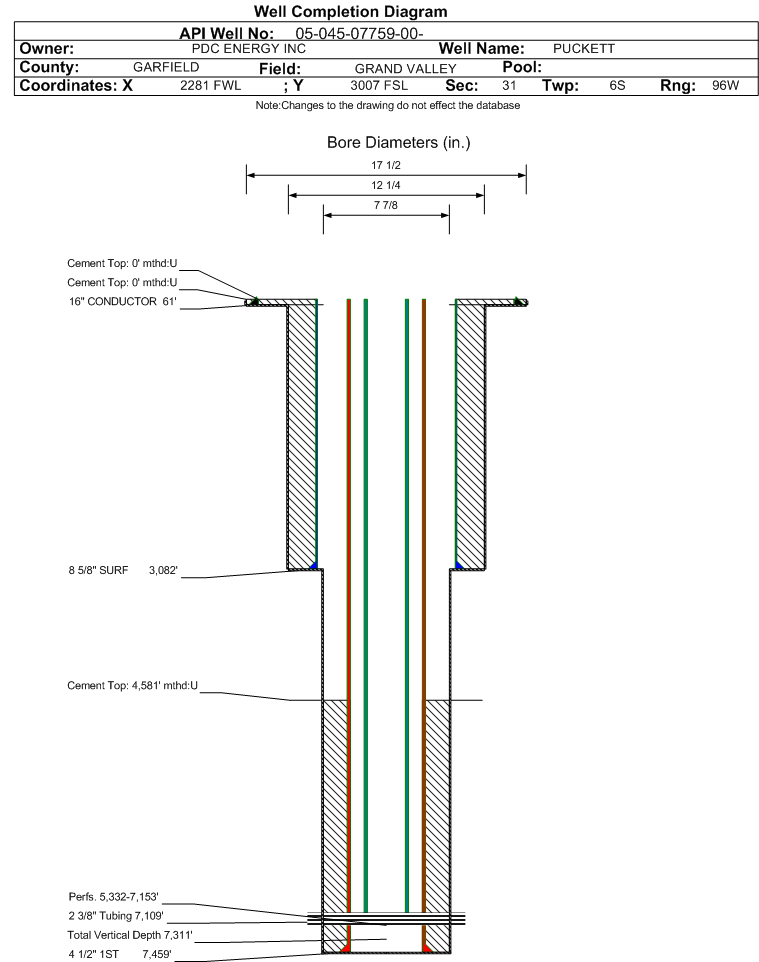

| Wellbore Completed | | Completion Date: | 8/16/2001 | | Spud Date: | 3/31/2001 | Spud Date Is: | ACTUAL | | Measured TD: | 7538 ft. | Measured PB depth: | 7459 ft. | | True Vertical TD: | 7311 ft. | True Vertical PB depth: | 7268 ft. | | Top PZ Location: | Sec: Twp: | Footage: 4415 FSL 2100 FWL | | Bottom Hole Location: | Sec: Twp: | Footage: 4553 FSL 2076 FWL | | Log Types: | SONIC, GR, NEUTRON | | Casing: | String Type: CONDUCTOR, Hole Size: 17.5 in., Size: 16 in., Top: 0 ft., Depth: 61 ft., Weight: 84 , Citings Type: ACTUAL | | Cement: | Sacks: 100, Top: 0 ft., Bottom: 61 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 3082 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 1025, Top: 0 ft., Bottom: 3082 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7459 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 800, Top: 4581 ft., Bottom: 7459 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | FORT UNION | 3108 ft. | | N | N | | WILLIAMS FORK | 4548 ft. | | N | N | | CAMEO | 6936 ft. | | N | N | | ROLLINS | 7404 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 1/1/2024 Interval Top: 5332 ft. Interval Bottom: 7153 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | N/A | Choke Size: | 0.344 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | PRODUCING | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 8/16/2001 | | Treatment Summary: | 9/06/01 B J SERVICES FRACED WITH 2055 BBL OF 16# VISTAR AND 177000# OF 20/40 AND 8000 # OF 14/40 SAND. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7109 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 9/7/2001 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 15 | | CALC_BBLS_H2O | 15 | | CALC_MCF_GAS | 1966 | | CASING_PRESS | 80 | | MCF_GAS | 1966 |
| | Perforation Data: | | Interval Top: | 5332 ft. | # Of Holes: | 10 | | Interval Bottom: | 7153 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 10900 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 5.143 |
| Average MCFE per Day | 29.837 |
