COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07751		Well Classification: GW Status: PR - 3/20/2001
Well Name/No:BERNKLAU #RWF 314-33
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date3/20/2001
FacilityID:259573LocationID:334891
County:GARFIELD #045Location:SWSW 33 6S94W 6
Field:RULISON - #75400Elevation:5927 ft.
Basin:PICEANCE BASIN
Planned Location:765FSL  1017 FWLLat/Long: 39.476320 / -107.897990Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.476507 / -107.897892Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 3/1/2001             Measured TD: 7918 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 3/1/2001
Wellbore Permit
Permit #:010515 Expiration Date:3/19/2002
Proposed Depth/Form:8030 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 479-7 , Unit Acreage: 320, Drill Unit: W/2
Wellbore Completed
Completion Date:9/24/2001
Spud Date:6/8/2001Spud Date Is:ACTUAL
Measured TD:7918 ft.Measured PB depth:7872 ft.
True Vertical TD:True Vertical PB depth:
Log Types:DUAL INDUCTION SPECTRAL DENSITY DUAL SPACED NEUTRON, CBL
Log Types:DUAL IND.SPECTRAL DENSITY DUAL SPACED NEUTRON

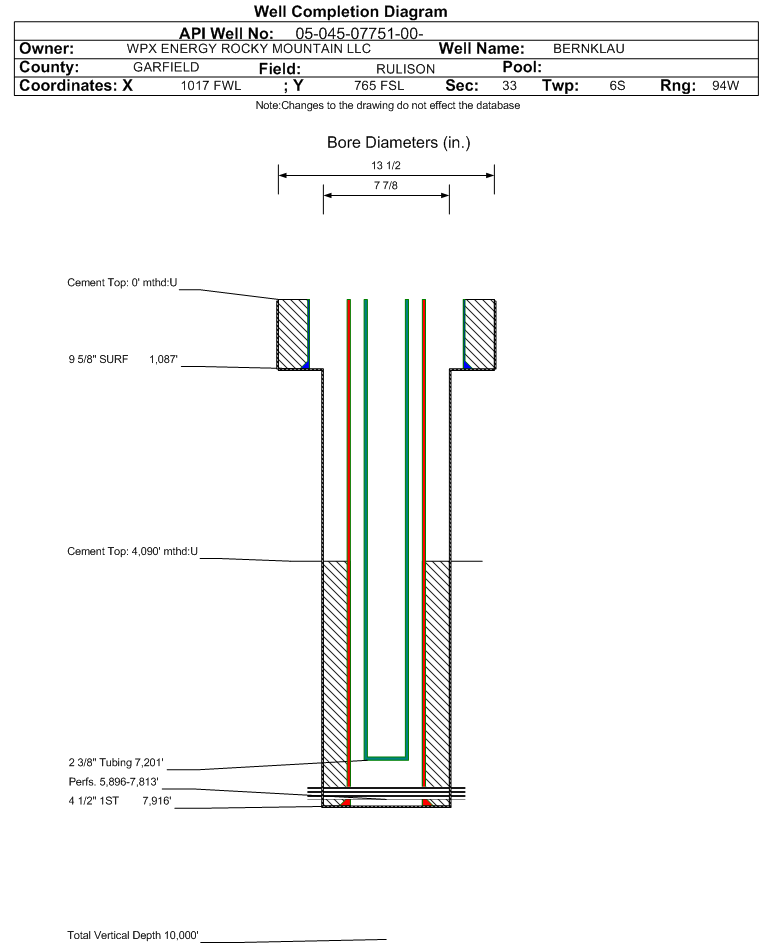

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1087 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 480, Top: , Bottom: 1087 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7916 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 914, Top: 4090 ft., Bottom: 7915 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G2182 ft.NN
MESAVERDE4538 ft.NN
CAMEO COAL7087 ft.NN

Formation WMRCM                   Formation Classification:  GW                   Status:  CM - 3/1/2001                  Interval Top: 5896 ft.    Interval Bottom: 7813 ft.

 Completed Information for Formation WILLIAMS FK-ROLLINS-CAMEO
1st Production Date:N/AChoke Size:0.203 in.
Formation Name:WILLIAMS FK-ROLLINS-CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:9/24/2001
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:7201 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/27/2001Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 1497
CASING_PRESS 1762
MCF_GAS 1497
TUBING_PRESS 1559
Perforation Data:
Interval Top:5896 ft.# Of Holes:100
Interval Bottom:7813 ft.Hole Size:

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 3/1/2001

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WFCM.
No Perforation Data was found for formation WFCM.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)16
Total Gas Produced (MCF)12909
GOR806812
GOR DeterminationMCFE
Average BOE per Day6.141
Average MCFE per Day35.636

 Federal Financial Assurance  i

 Tribal Well  i No
