COGIS - WELL SCOUT CARD

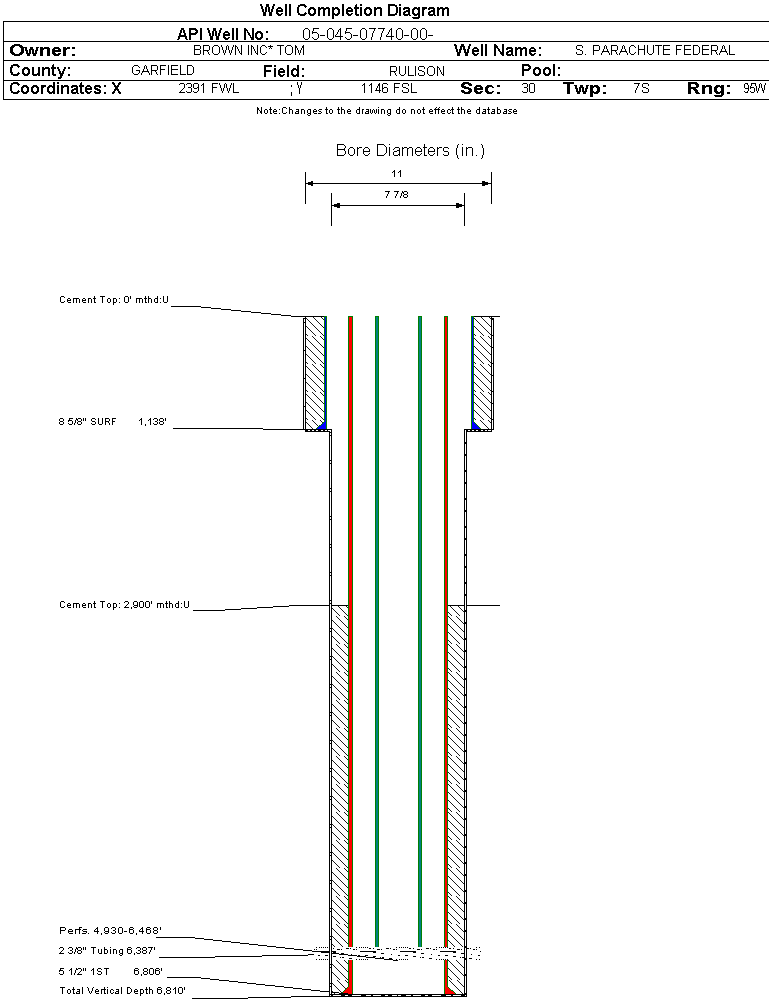

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07740		Well Classification: GW Status: PR - 12/1/2021
Well Name/No:S. PARACHUTE FEDERAL #30-42
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date12/1/2021
FacilityID:259547LocationID:334060
County:GARFIELD #045Location:SESW 30 7S95W 6
Field:PARACHUTE - #67350Elevation:6374 ft.
Basin:PICEANCE BASIN
Planned Location:1146FSL  2391 FWLLat/Long: 39.404450 / -108.040174Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.404460 / -108.040130Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 12/1/2021             Measured TD: 6810 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 12/1/2021
Wellbore Permit
Permit #:20031613 Expiration Date:9/14/2004
Proposed Depth/Form:5900 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit: Unit Number:
Formation And Spacing:Code: WFCM , Formation: WILLIAMS FORK - CAMEO , Order: 139-31 , Unit Acreage: , Drill Unit: SESW
Wellbore Completed
Completion Date:2/5/2004
Spud Date:12/26/2003Spud Date Is:ACTUAL
Measured TD:6810 ft.Measured PB depth:6555 ft.
True Vertical TD:True Vertical PB depth:
Log Types:
Casing:String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 1138 ft., Weight: 32 , Citings Type: ACTUAL
Cement:Sacks: 350, Top: 0 ft., Bottom: 1140 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 6806 ft., Weight: 17 , Citings Type: ACTUAL
Cement:Sacks: 880, Top: 2900 ft., Bottom: 6810 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
WASATCH G2612 ft.NN
WILLIAMS FORK3797 ft.NN
CAMEO6194 ft.NN
ROLLINS6664 ft.NN

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 12/1/2021                 Interval Top: 4930 ft.    Interval Bottom: 6468 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:0.750 in.
Formation Name:WILLIAMS FORKCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:2/5/2004
Treatment Summary:STAGES 1 THROUGH 8 WERE TREATED WITH A TOTAL OF 12,734 BBLS SLICKWATER AND 570,761# OF 20-40 SAND.
Tubing Size:2.375 in.Tubing Setting Depth:6387 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/15/2005Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 25
BBLS_OIL 0
BTU_GAS 1170
CALC_BBLS_H2O 25
CALC_BBLS_OIL 0
CALC_MCF_GAS 1449
CASING_PRESS 980
MCF_GAS 1449
TUBING_PRESS 700
Perforation Data:
Interval Top:4930 ft.# Of Holes:142
Interval Bottom:6468 ft.Hole Size:0.34 in.
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
07/2024 - 06/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
July 2024 - June 2025i
Total Oil Produced (Barrels)5
Total Gas Produced (MCF)2803
GOR560600
GOR DeterminationMCFE
Average BOE per Day1.343
Average MCFE per Day7.760

 Federal Financial Assurance  i Y

 Tribal Well  i No
