COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07732		Well Classification: GW Status: PR - 3/6/2001
Well Name/No:AMERICAN SODA #GM 266-3
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC46603
Facility Status:PRStatus Date3/6/2001
FacilityID:259464LocationID:334596
County:GARFIELD #045Location:NENE 3 7S96W 6
Field:GRAND VALLEY - #31290Elevation:5266 ft.
Basin:PICEANCE BASIN
Planned Location:665FNL  1038 FELLat/Long: 39.471429 / -108.089106Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.471484 / -108.088882Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 2/8/2001             Measured TD:     Vertical TD: 6275 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 2/8/2001
Wellbore Permit
Permit #:010437 Expiration Date:3/5/2002
Proposed Depth/Form:6640 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 495-2, 139, Unit Acreage: 320, Drill Unit: N2
Wellbore Completed
Completion Date:N/A
Spud Date:6/20/2001Spud Date Is:ACTUAL
Measured TD:Measured PB depth:
True Vertical TD:6275 ft.True Vertical PB depth:
Log Types:THERMAL MULTIGATE DECAY LITHOLOGY WITH CEMENT BOND LOG
Log Types:THERMAL MULTIGATE DECAY LITHOLOGY WITH CEMENT BOND LOG

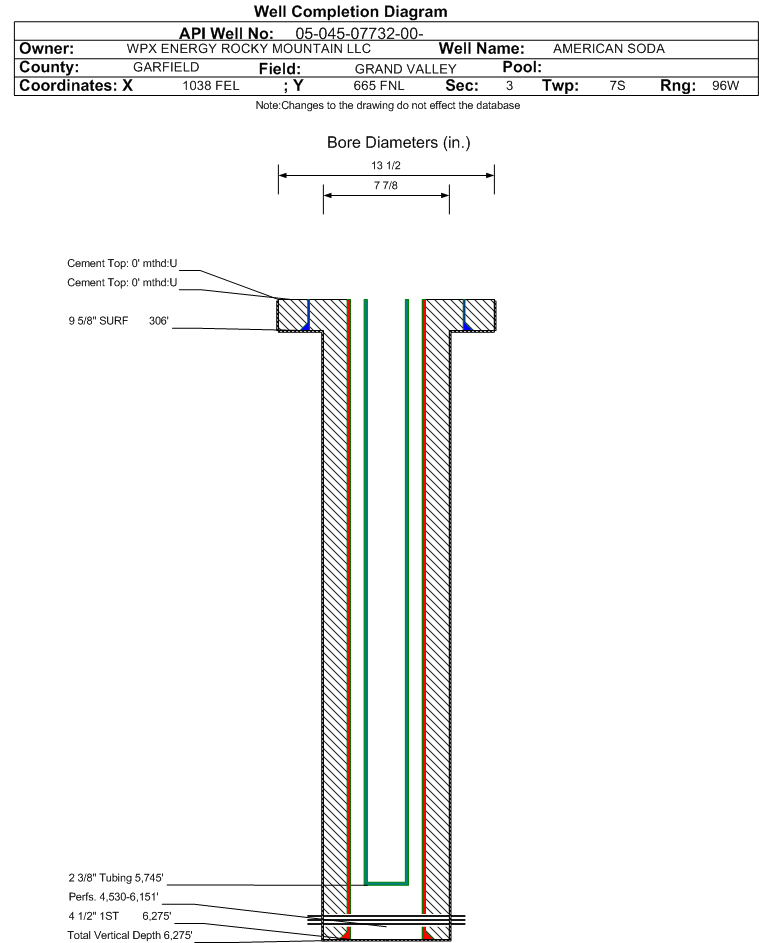

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 306 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 180, Top: , Bottom: 306 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6275 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 900, Top: , Bottom: 6275 ft., Determination Method:
FormationInterval TopLog BottomCoredDSTs
WASATCH G1501 ft.NN
FORT UNION1811 ft.NN
MESAVERDE3233 ft.NN
CAMEO COAL5721 ft.NN
ROLLINS6220 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 2/8/2001                  Interval Top: 4530 ft.    Interval Bottom: 6151 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.250 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:9/16/2001
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:5745 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/16/2001Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 746
CASING_PRESS 1618
MCF_GAS 746
TUBING_PRESS 1401
Perforation Data:
Interval Top:4530 ft.# Of Holes:72
Interval Bottom:6151 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)11
Total Gas Produced (MCF)8635
GOR785000
GOR DeterminationMCFE
Average BOE per Day4.114
Average MCFE per Day23.849

 Federal Financial Assurance  i

 Tribal Well  i No
