COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07730		Well Classification: GW Status: PR - 3/6/2001
Well Name/No:BARRETT #GM 237-36
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date3/6/2001
FacilityID:259462LocationID:324150
County:GARFIELD #045Location:SESW 36 6S96W 6
Field:GRAND VALLEY - #31290Elevation:5469 ft.
Basin:PICEANCE BASIN
Planned Location:305FSL  1464 FWLLat/Long: 39.474289 / -108.061485Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.474132 / -108.061502Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 2/7/2001             Measured TD: 6750 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 2/7/2001
Wellbore Permit
Permit #:010435 Expiration Date:3/5/2002
Proposed Depth/Form:7030 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-32 , Unit Acreage: 160, Drill Unit: SW4
Wellbore Completed
Completion Date:N/A
Spud Date:6/16/2001Spud Date Is:ACTUAL
Measured TD:6750 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Log Types:DUAL IND SPEC DENS DUAL SPACED NEUTRON, CBL
Log Types:DUAL INDUCTION SPECTRAL DENSITY DUAL SPACED NEUTRON

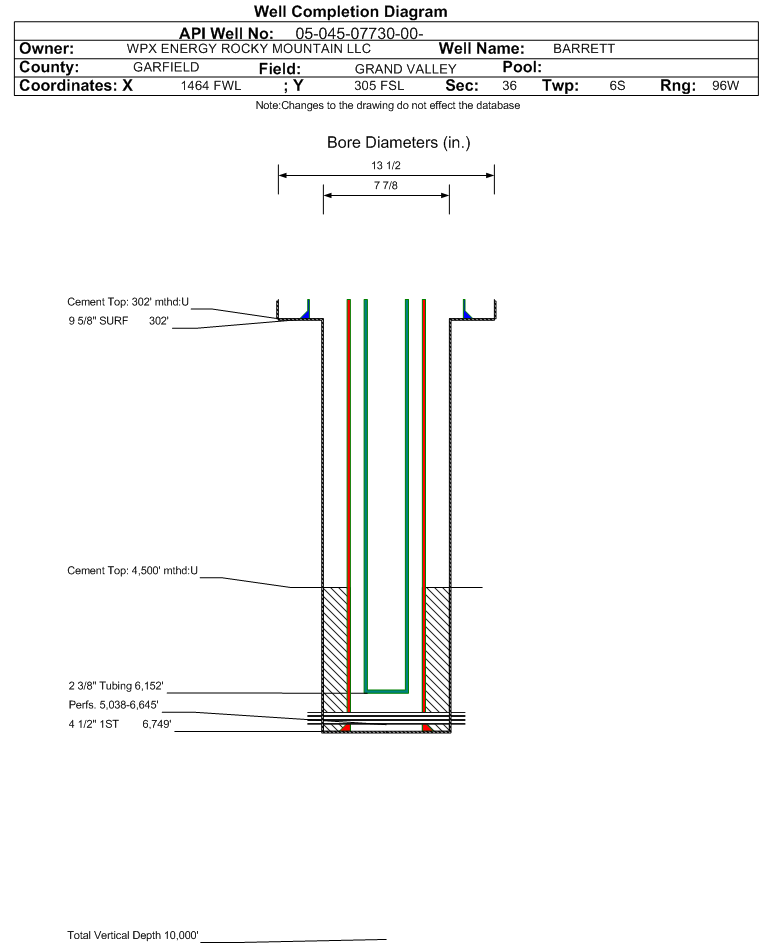

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 302 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 180, Top: 302 ft., Bottom: 302 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6749 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 725, Top: 4500 ft., Bottom: 6749 ft., Determination Method:
FormationInterval TopLog BottomCoredDSTs
WASATCH G1804 ft.NN
FORT UNION2156 ft.NN
MESAVERDE3683 ft.NN
CAMEO COAL6186 ft.NN
ROLLINS6713 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 2/7/2001                  Interval Top: 5038 ft.    Interval Bottom: 6645 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.188 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:8/3/2001
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:6152 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:8/3/2001Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 1588
CASING_PRESS 1947
MCF_GAS 1588
TUBING_PRESS 1877
Perforation Data:
Interval Top:5038 ft.# Of Holes:70
Interval Bottom:6645 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)11
Total Gas Produced (MCF)8287
GOR753363
GOR DeterminationMCFE
Average BOE per Day3.948
Average MCFE per Day22.887

 Federal Financial Assurance  i

 Tribal Well  i No
