COGIS - WELL SCOUT CARD

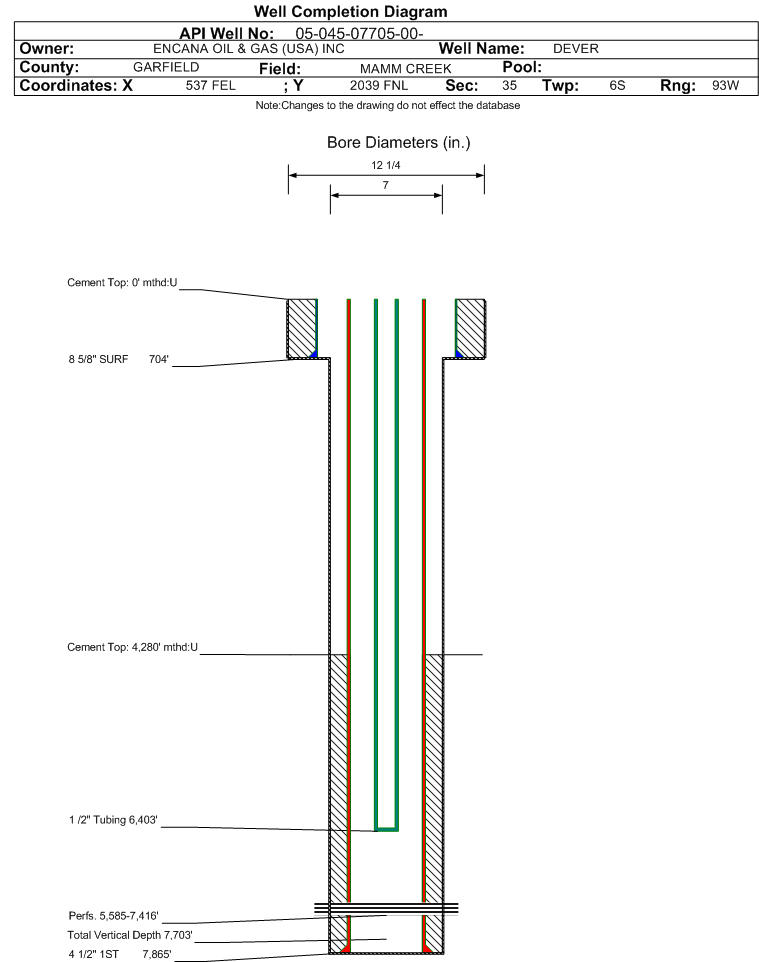

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07705		Well Classification: GW Status: PR - 11/1/2022
Well Name/No:DEVER #36-5 (H35)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date11/1/2022
FacilityID:259290LocationID:334889
County:GARFIELD #045Location:SENE 35 6S93W 6
Field:MAMM CREEK - #52500Elevation:5975 ft.
Basin:PICEANCE BASIN
Planned Location:2039FNL  537 FELLat/Long: 39.484670 / -107.735215Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.484850 / -107.735230Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 11/1/2022             Measured TD: 7865 ft.    Vertical TD: 7703 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 11/1/2022
Wellbore PermitDIRECTIONAL
Permit #:010281 Expiration Date:2/13/2002
Proposed Top PZ Location:Sec:36 Twp: 6S 93W Footage: 1990 FNL  462 FWL
Bottom Hole Location:Sec:36 Twp: 6S 93W Footage: 1980 FNL  660 FWL
Proposed Depth/Form:6900 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit:GRASS MESA UNIT Unit Number:COC56608X
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:2/13/2002
Spud Date:5/1/2001Spud Date Is:ACTUAL
Measured TD:7865 ft.Measured PB depth:7791 ft.
True Vertical TD:7703 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 1983 FNL  45 FWL
Bottom Hole Location:Sec: Twp: Footage: 2045 FNL  708 FWL
Log Types:CBL/GR/CCL/RST
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 704 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 360, Top: 0 ft., Bottom: 704 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7 in., Size: 4.5 in., Top: 0 ft., Depth: 7865 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 900, Top: 4280 ft., Bottom: 7865 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WILLIAMS FORK4745 ft.NN

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 11/1/2022                 Interval Top: 5585 ft.    Interval Bottom: 7416 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:0.375 in.
Formation Name:WILLIAMS FORKCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:2/13/2002
Treatment Summary:SEE COMMENTS
Tubing Size:1.1 in.Tubing Setting Depth:6403 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:8/22/2001Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 46
BBLS_OIL 36
BTU_GAS 1170
CALC_BBLS_H2O 46
CALC_BBLS_OIL 36
CALC_GOR 59000
CALC_MCF_GAS 2119
CASING_PRESS 200
MCF_GAS 2119
Perforation Data:
Interval Top:5585 ft.# Of Holes:68
Interval Bottom:7416 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)34
Total Gas Produced (MCF)14085
GOR414264
GOR DeterminationMCFE
Average BOE per Day6.750
Average MCFE per Day39.142

 Federal Financial Assurance  i Y

 Tribal Well  i No
