COGIS - WELL SCOUT CARD

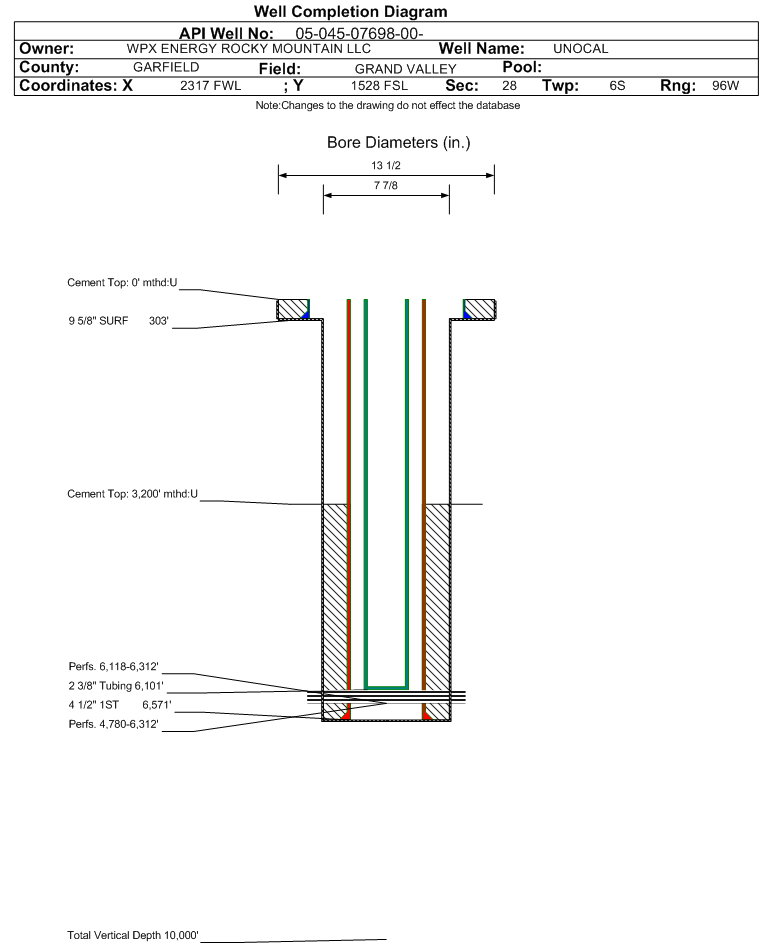

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07698		Well Classification: CBM Status: PR - 11/1/2015
Well Name/No:UNOCAL #GM 323-28
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date11/1/2015
FacilityID:259208LocationID:335318
County:GARFIELD #045Location:NESW 28 6S96W 6
Field:GRAND VALLEY - #31290Elevation:5473 ft.
Basin:PICEANCE BASIN
Planned Location:1528FSL  2317 FWLLat/Long: 39.491898 / -108.114847Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.492128 / -108.114820Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: CBM             Status: PR - 11/1/2015             Measured TD: 6581 ft.

 Wellbore Data for Original WellboreWellbore Classification: CBM        PR - 11/1/2015
Wellbore Permit
Permit #:010213 Expiration Date:2/4/2002
Proposed Depth/Form:6910 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 479-7 , Unit Acreage: 320, Drill Unit: W2
Wellbore Completed
Completion Date:4/26/2001
Spud Date:3/2/2001Spud Date Is:ACTUAL
Measured TD:6581 ft.Measured PB depth:6490 ft.
True Vertical TD:True Vertical PB depth:
Log Types:DUAL INDUCTION SPECTRAL DENISITY DUAL SPACED NEUTRON
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 303 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 180, Top: , Bottom: 303 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 6571 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 855, Top: 3200 ft., Bottom: 6571 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
FORT UNION2166 ft.NN
MESAVERDE3519 ft.NN
CAMEO COAL6090 ft.NN
ROLLINS6568 ft.NN

Formation WMFKC                   Formation Classification:  GW                   Status:  CM - 11/1/2015                 Interval Top: 6118 ft.    Interval Bottom: 6312 ft.

 Completed Information for Formation WILLIAMS FORK COAL
1st Production Date:N/AChoke Size:0.203 in.
Formation Name:WILLIAMS FORK COALCommingled:Yes
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:4/26/2001
Treatment Summary:750 GALS 7-1/2% HCL; 125,000# 20/40 SAND W/ 2226 BBLS SLICK WATER.
Tubing Size:2.375 in.Tubing Setting Depth:6101 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/2/2001Test Method:FLOWING
Hours Tested:24Gas Type:COAL GAS
Gas Disposal:
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 1494
CASING_PRESS 1588
MCF_GAS 1494
TUBING_PRESS 1485
Perforation Data:
Interval Top:6118 ft.# Of Holes:14
Interval Bottom:6312 ft.Hole Size:0.3 in.

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 11/1/2015                 Interval Top: 4780 ft.    Interval Bottom: 6312 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:4/26/2001Choke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WFCM.
Perforation Data:
Interval Top:4780 ft.# Of Holes:86
Interval Bottom:6312 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)15
Total Gas Produced (MCF)8625
GOR575000
GOR DeterminationMCFE
Average BOE per Day4.115
Average MCFE per Day23.879

 Federal Financial Assurance  i

 Tribal Well  i No
