 Surface Location
 API# 05-045-07689		Well Classification: GW Status: PR - 1/29/2001
Well Name/No:AMERICAN SODA #GM 264-2
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date1/29/2001
FacilityID:259121LocationID:324142
County:GARFIELD #045Location:SESW 2 7S96W 6
Field:GRAND VALLEY - #31290Elevation:5236 ft.
Basin:PICEANCE BASIN
Planned Location:1087FSL  1870 FWLLat/Long: 39.462059 / -108.080055Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.462504 / -108.079418Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 12/29/2000             Measured TD: 6118 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 12/29/2000
Wellbore Permit
Permit #:010171 Expiration Date:1/28/2002
Proposed Depth/Form:6350 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-32 , Unit Acreage: 40, Drill Unit: SESW
Wellbore Completed
Completion Date:3/30/2001
Spud Date:2/11/2001Spud Date Is:ACTUAL
Measured TD:6118 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Log Types:THERMAL DECAY, CBL
Log Types:DUAL INDUCTION SPECTRAL DENSITY DUAL SPACED NEUTRON, CBL

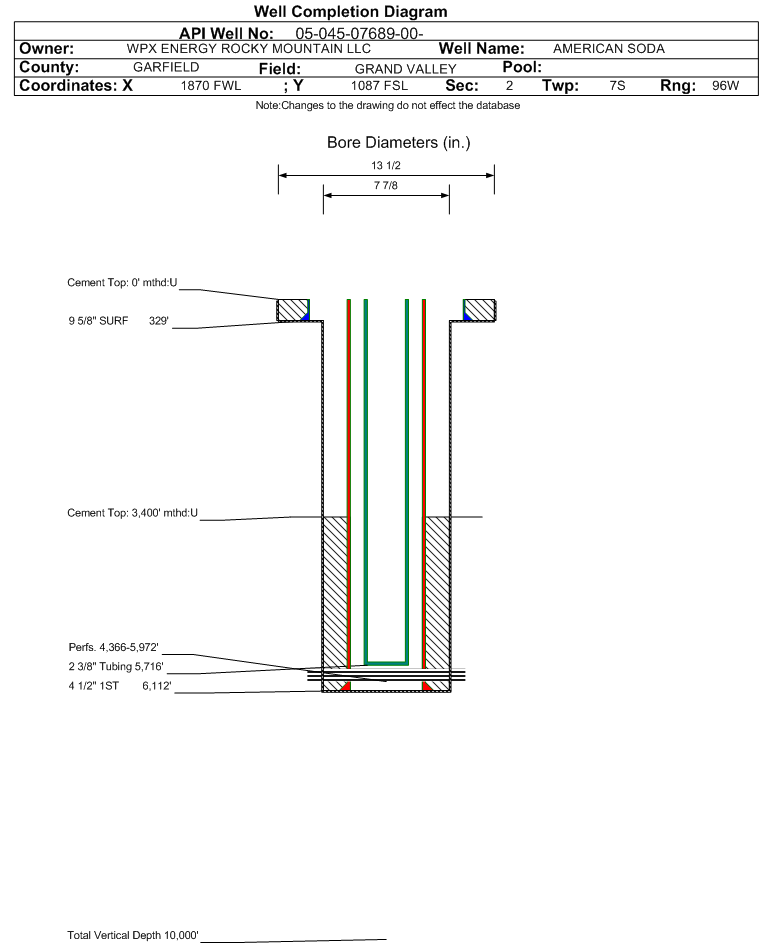

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 329 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 180, Top: , Bottom: 329 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 6112 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 850, Top: 3400 ft., Bottom: 6111 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1287 ft.NN
FORT UNION1760 ft.NN
MESAVERDE3151 ft.NN
CAMEO COAL5626 ft.NN
ROLLINS6098 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 12/29/2000                Interval Top: 4366 ft.    Interval Bottom: 5972 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.203 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:3/30/2001
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:5716 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/7/2001Test Method:
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 5
BBLS_OIL 0
CALC_BBLS_H2O 5
CALC_BBLS_OIL 0
CALC_MCF_GAS 1339
CASING_PRESS 1213
MCF_GAS 1339
TUBING_PRESS 1388
Perforation Data:
Interval Top:4366 ft.# Of Holes:64
Interval Bottom:5972 ft.Hole Size:
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
02/2025 - 01/2026

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2025 - January 2026i
Total Oil Produced (Barrels)1
Total Gas Produced (MCF)3545
GOR3545000
GOR DeterminationMCFE
Average BOE per Day1.680
Average MCFE per Day9.730

 Federal Financial Assurance  i

 Tribal Well  i No
