COGIS - WELL SCOUT CARD

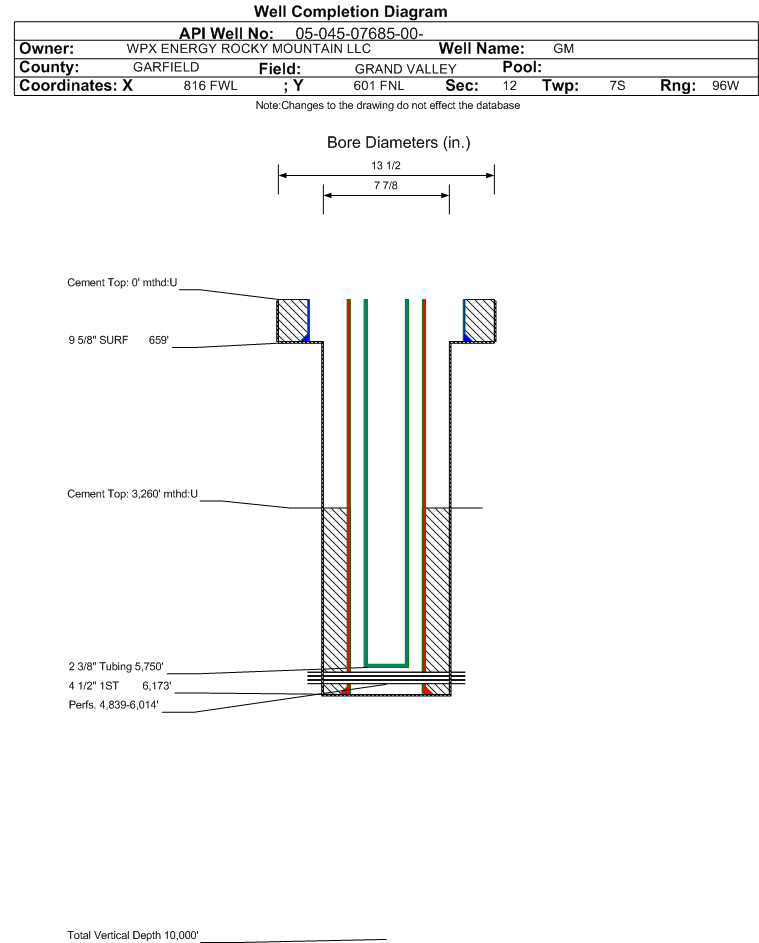

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07685		Well Classification: GW Status: PR - 8/1/2024
Well Name/No:GM #11-12
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date8/1/2024
FacilityID:259106LocationID:334981
Municipality/County:PARACHUTE / GARFIELD #045Location:NWNW 12 7S96W 6
Field:GRAND VALLEY - #31290Elevation:5141 ft.
Basin:PICEANCE BASIN
Planned Location:601FNL  816 FWLLat/Long: 39.457949 / -108.065125Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.458021 / -108.065362Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 8/1/2024             Measured TD: 6185 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 8/1/2024
Wellbore Permit
Permit #:010161 Expiration Date:1/25/2002
Proposed Depth/Form:6250 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 479-2 , Unit Acreage: 320, Drill Unit: W2
Wellbore Completed
Completion Date:11/20/2001
Spud Date:9/15/2001Spud Date Is:ACTUAL
Measured TD:6185 ft.Measured PB depth:6120 ft.
True Vertical TD:True Vertical PB depth:
Log Types:DUAL INDUCTION SPECTRAL DENSITY DUAL SPACED NEUTRON
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 659 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 360, Top: , Bottom: 659 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 6173 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 795, Top: 3260 ft., Bottom: 6173 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
FORT UNION1649 ft.NN
MESAVERDE3098 ft.NN
CAMEO5662 ft.NN
ROLLINS6100 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 8/1/2024                  Interval Top: 4839 ft.    Interval Bottom: 6014 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.203 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:11/20/2001
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:5750 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/5/2001Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
BTU_GAS 1058
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 1425
CASING_PRESS 1950
MCF_GAS 1425
TUBING_PRESS 1861
Perforation Data:
Interval Top:4839 ft.# Of Holes:50
Interval Bottom:6014 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)17
Total Gas Produced (MCF)13994
GOR823176
GOR DeterminationMCFE
Average BOE per Day6.660
Average MCFE per Day38.618

 Federal Financial Assurance  i

 Tribal Well  i No
