COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07684		Well Classification: GW Status: PR - 9/1/2004
Well Name/No:GIBSON GULCH UNIT #13-20
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date9/1/2004
FacilityID:259105LocationID:311596
County:GARFIELD #045Location:SWSW 20 6S91W 6
Field:MAMM CREEK - #52500Elevation:5964 ft.
Basin:PICEANCE BASIN
Planned Location:418FSL  862 FWLLat/Long: 39.506981 / -107.584511Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.507166 / -107.584497Lat/Long Source: Field Measured

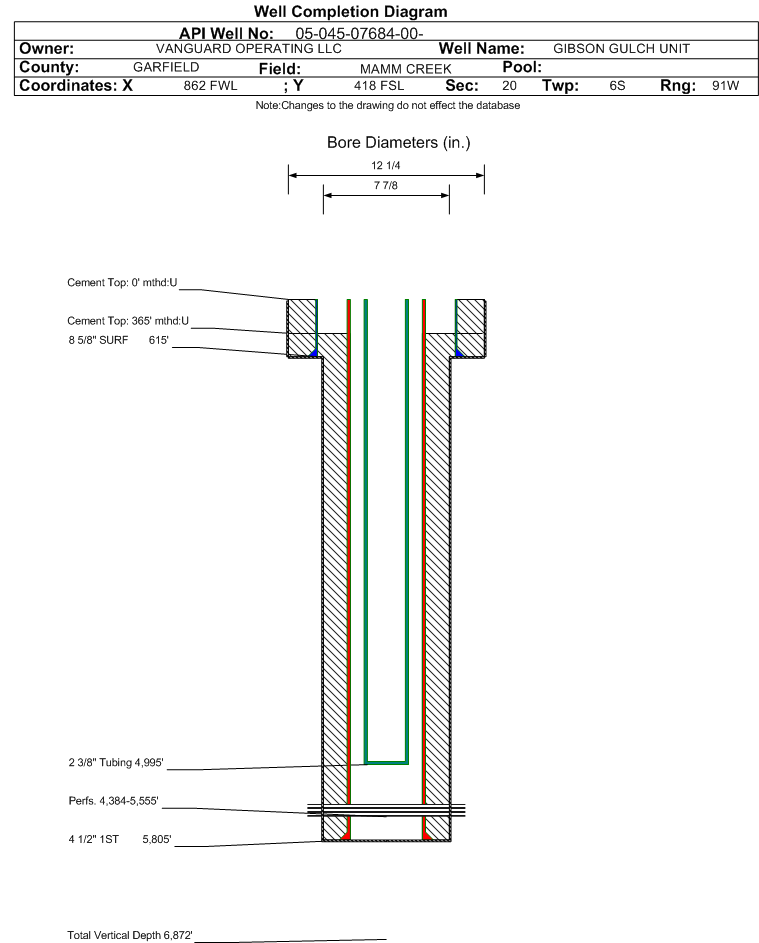

 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 9/1/2004             Measured TD: 6872 ft.    Vertical TD: 6872 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 9/1/2004
Wellbore Permit
Permit #:010160 Expiration Date:1/25/2002
Proposed Depth/Form:5400 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit:GIBSON GULCH Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:2/23/2001
Spud Date:2/9/2001Spud Date Is:ACTUAL
Measured TD:6872 ft.Measured PB depth:5786 ft.
True Vertical TD:6872 ft.True Vertical PB depth:5764 ft.
Log Types:DIL / SDL / DSN, CBL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 615 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 350, Top: 0 ft., Bottom: 615 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 5805 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1150, Top: 365 ft., Bottom: 5805 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH0 ft.3425 ft.NN
OHIO CREEK3425 ft.3953 ft.NN
WILLIAMS FORK3953 ft.6838 ft.NN
CAMEO COAL6838 ft.6872 ft.NN

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 9/1/2004                  Interval Top: 4384 ft.    Interval Bottom: 5555 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:0.313 in.
Formation Name:WILLIAMS FORKCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:2/23/2001
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:4995 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/16/2001Test Method:FLOW
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 10
BBLS_OIL 3
BTU_GAS 1155
CALC_BBLS_H2O 10
CALC_BBLS_OIL 3
CALC_GOR 208333
CALC_MCF_GAS 625
CASING_PRESS 850
GRAVITY_OIL 42
MCF_GAS 625
TUBING_PRESS 625
Perforation Data:
Interval Top:4384 ft.# Of Holes:20
Interval Bottom:5555 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2025 - January 2026i
Total Oil Produced (Barrels)13
Total Gas Produced (MCF)5486
GOR422000
GOR DeterminationMCFE
Average BOE per Day2.629
Average MCFE per Day15.235

 Federal Financial Assurance  i

 Tribal Well  i No
