COGIS - WELL SCOUT CARD

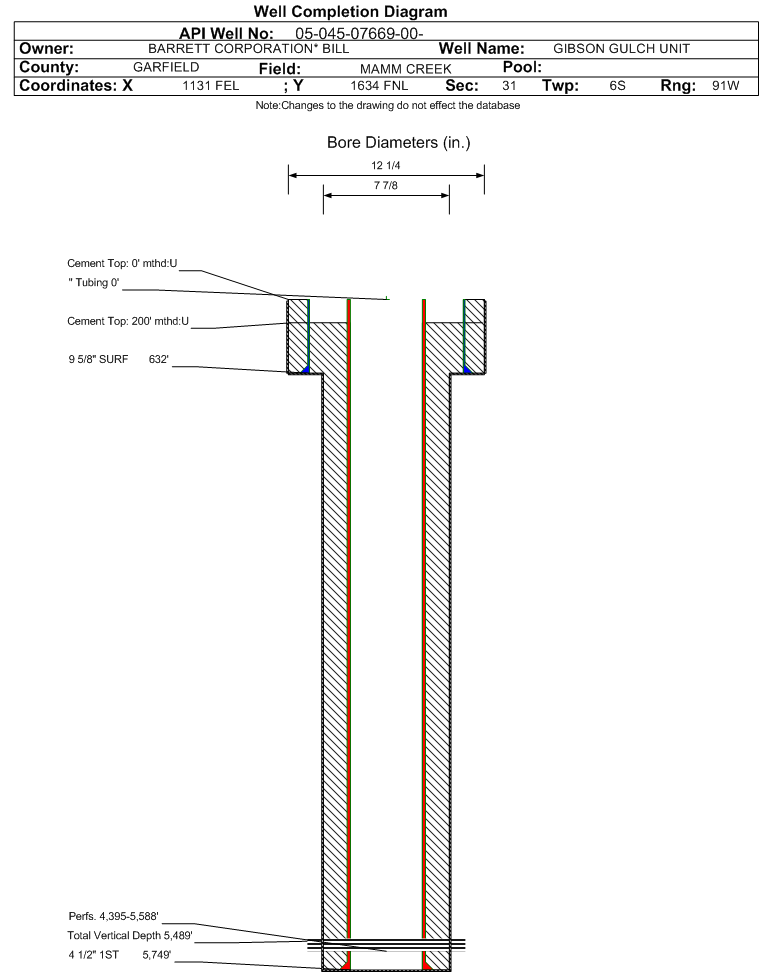

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07669		Well Classification: GW Status: PR - 10/23/2012
Well Name/No:GIBSON GULCH UNIT #7-31
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date10/23/2012
FacilityID:258927LocationID:334861
County:GARFIELD #045Location:SENE 31 6S91W 6
Field:MAMM CREEK - #52500Elevation:5954 ft.
Basin:PICEANCE BASIN
Planned Location:1634FNL  1131 FELLat/Long: 39.486741 / -107.591191Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.486867 / -107.591102Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 10/23/2012             Measured TD: 5749 ft.    Vertical TD: 5489 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 10/23/2012
Wellbore Permit
Permit #:010022 Expiration Date:1/7/2002
Proposed Depth/Form:5600 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit:GIBSON GULCH Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: U
Wellbore Completed
Completion Date:2/8/2001
Spud Date:1/28/2001Spud Date Is:ACTUAL
Measured TD:5749 ft.Measured PB depth:5704 ft.
True Vertical TD:5489 ft.True Vertical PB depth:5444 ft.
Top PZ Location:Sec: Twp: Footage: 1473 FNL  2271 FEL
Bottom Hole Location:Sec: Twp: Footage: 1461 FSL  2360 FEL
Log Types:DIL/SDL/DSN.
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 632 ft., Weight: 32 , Citings Type: ACTUAL
Cement:Sacks: 350, Top: 0 ft., Bottom: 632 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 5749 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 950, Top: 200 ft., Bottom: 5749 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH0 ft.3391 ft.NN
OHIO CREEK3391 ft.4012 ft.NN

Formation WMFK                     Formation Classification:  OW                     Status:  PR - 10/23/2012                Interval Top: 4395 ft.    Interval Bottom: 5588 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORKCommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:2/8/2001
Treatment Summary:1,332,000 #20/40 Sand, 10,107 bbls 2% KCL water plus 407,000 scf N2 (original treatment information)
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 42
BBLS_OIL 25
BTU_GAS 1180
CALC_BBLS_H2O 42
CALC_BBLS_OIL 25
CALC_GOR 37600
CALC_MCF_GAS 940
CASING_PRESS 1180
GRAVITY_OIL 41
MCF_GAS 940
TUBING_PRESS 1320
Perforation Data:
Interval Top:4395 ft.# Of Holes:46
Interval Bottom:5588 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)30
Total Gas Produced (MCF)3989
GOR132966
GOR DeterminationMCFE
Average BOE per Day1.965
Average MCFE per Day11.410

 Federal Financial Assurance  i

 Tribal Well  i No
