COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07668		Well Classification: GW Status: PR - 11/28/2001
Well Name/No:PORTER FEDERAL #13-28
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC56027
Facility Status:PRStatus Date11/28/2001
FacilityID:258903LocationID:324135
County:GARFIELD #045Location:SWSW 28 6S92W 6
Field:MAMM CREEK - #52500Elevation:5890 ft.
Basin:PICEANCE BASIN
Planned Location:904FSL  694 FWLLat/Long: 39.493031 / -107.678403Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.493099 / -107.678315Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 11/28/2001             Measured TD: 6519 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 11/28/2001
Wellbore Permit
Permit #:010003 Expiration Date:1/3/2002
Proposed Depth/Form:6370 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEDERALSurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:8/1/2001
Spud Date:7/21/2001Spud Date Is:ACTUAL
Measured TD:6519 ft.Measured PB depth:6474 ft.
True Vertical TD:True Vertical PB depth:
Log Types:DIL/SDL/DSN

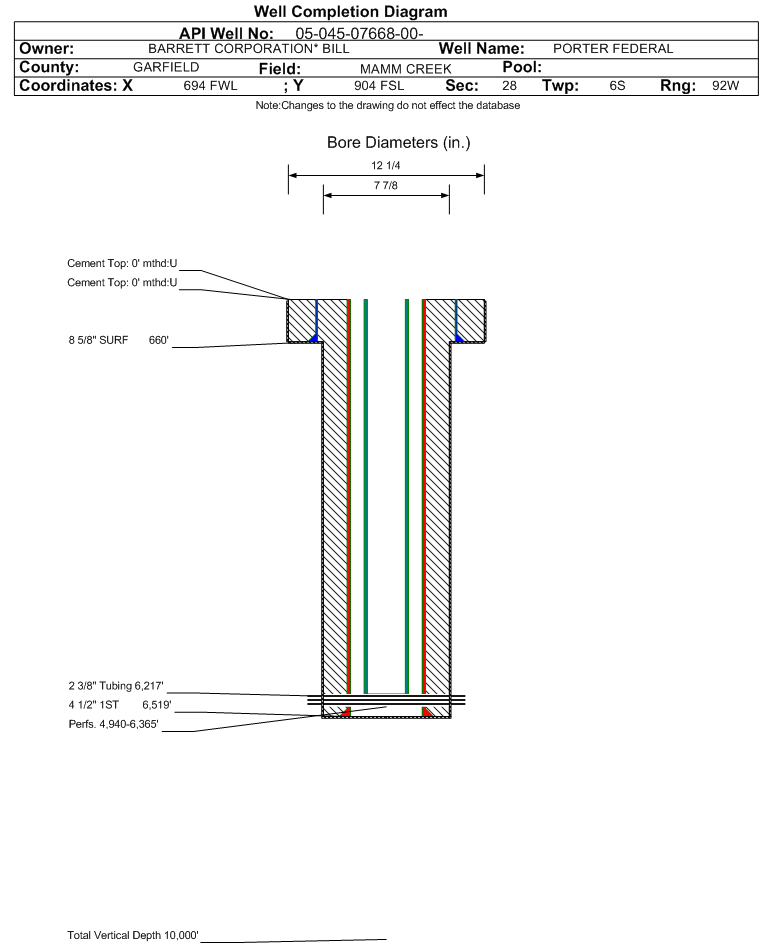

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 660 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 320, Top: 0 ft., Bottom: 660 ft., Determination Method: CBL
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6519 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1200, Top: 0 ft., Bottom: 6519 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH0 ft.3150 ft.NN
OHIO CREEK3150 ft.3770 ft.NN

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 11/28/2001                Interval Top: 4940 ft.    Interval Bottom: 6365 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:0.219 in.
Formation Name:WILLIAMS FORKCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:8/1/2001
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:6217 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/28/2001Test Method:FLOW
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 18
BBLS_OIL 15
BTU_GAS 1153
CALC_BBLS_H2O 18
CALC_BBLS_OIL 15
CALC_GOR 64866
CALC_MCF_GAS 973
CASING_PRESS 1750
GRAVITY_OIL 41
MCF_GAS 973
TUBING_PRESS 1720
Perforation Data:
Interval Top:4940 ft.# Of Holes:58
Interval Bottom:6365 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2025 - January 2026i
Total Oil Produced (Barrels)67
Total Gas Produced (MCF)11719
GOR174910
GOR DeterminationMCFE
Average BOE per Day5.723
Average MCFE per Day33.184

 Federal Financial Assurance  i Y

 Tribal Well  i No
