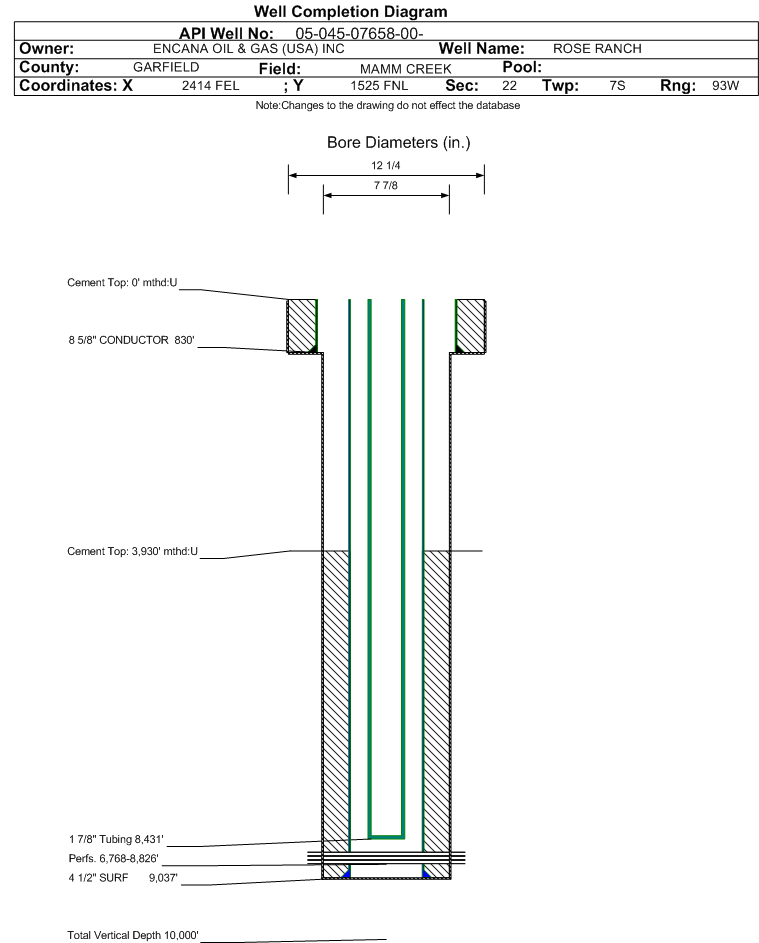

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07658		Well Classification: GW Status: PR - 6/1/2002
Well Name/No:ROSE RANCH #22-2 (G22)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date6/1/2002
FacilityID:258803LocationID:334616
County:GARFIELD #045Location:SWNE 22 7S93W 6
Field:MAMM CREEK - #52500Elevation:6891 ft.
Basin:PICEANCE BASIN
Planned Location:1525FNL  2414 FELLat/Long: 39.434151 / -107.759815Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.434050 / -107.759810Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 6/1/2002             Measured TD: 8950 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 6/1/2002
Wellbore PermitDIRECTIONAL
Permit #:001490 Expiration Date:12/18/2001
Proposed Top PZ Location:Sec:22 Twp: 7S 93W Footage: 788 FNL  2044 FEL
Bottom Hole Location:Sec:22 Twp: 7S 93W Footage: 660 FNL  1980 FEL
Proposed Depth/Form:8050 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit:HUNTER MESA UNI Unit Number:COC55972X
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 8126 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 1077, Top: , Bottom: 8126 ft.
Wellbore Completed
Completion Date:7/20/2001
Spud Date:3/2/2001Spud Date Is:ACTUAL
Measured TD:8950 ft.Measured PB depth:8851 ft.
True Vertical TD:True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 788 FNL  2044 FEL
Bottom Hole Location:Sec: Twp: Footage: 660 FNL  1980 FEL
Log Types:CBL/CCL/GR/RST/PLATFORM EXPRESS AI/GR/SP
Casing:String Type: CONDUCTOR, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 830 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 425, Top: 0 ft., Bottom: 830 ft., Determination Method: CALC
Casing:String Type: SURF, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 9037 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1140, Top: 3930 ft., Bottom: 9037 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH0 ft.NN
WILLIAMS FORK5840 ft.NN

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 6/1/2002                  Interval Top: 6768 ft.    Interval Bottom: 8826 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:0.375 in.
Formation Name:WILLIAMS FORKCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:7/20/2001
Treatment Summary:STAGE1: 8798'-8826' 894 BBL VIKING 30 102,800# 20/40 WHITE SAND, 20HOLES. STAGE 2:8430'-8546' 2213 BBLS VIKING 30, 236,100# 20/40 WHITE SAND,58 HO;ES. STAGE3:8088'-8340',2401 BBL VIKING 30 253,900# 20/40 WHITE SAND,32 HOLES. STAGE4:PERFORM ACID BALLOUT-24
Tubing Size:1.9 in.Tubing Setting Depth:8431 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/13/2001Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 42
BBLS_OIL 13
BTU_GAS 1170
CALC_BBLS_H2O 42
CALC_BBLS_OIL 13
CALC_GOR 44
CALC_MCF_GAS 573
CASING_PRESS 380
MCF_GAS 573
Perforation Data:
Interval Top:6768 ft.# Of Holes:276
Interval Bottom:8826 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)7
Total Gas Produced (MCF)8748
GOR1249714
GOR DeterminationMCFE
Average BOE per Day4.152
Average MCFE per Day24.085

 Federal Financial Assurance  i

 Tribal Well  i No
