COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07653		Well Classification: GW Status: PR - 8/21/2004
Well Name/No:BOULTON #33-9 (G33)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date8/21/2004
FacilityID:258740LocationID:334935
County:GARFIELD #045Location:SWNE 33 6S92W 6
Field:MAMM CREEK - #52500Elevation:5848 ft.
Basin:PICEANCE BASIN
Planned Location:2367FNL  1462 FELLat/Long: 39.484201 / -107.667303Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.484261 / -107.667182Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 8/21/2004             Measured TD: 5975 ft.    Vertical TD: 5800 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 8/21/2004
Wellbore Permit
Permit #:001435 Expiration Date:12/12/2001
Proposed Top PZ Location:Sec: Twp: Footage: 3120 FNL  776 FEL
Bottom Hole Location:Sec: Twp: Footage: 3365 FNL  698 FEL
Proposed Depth/Form:5800 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit:GRASS MESA UNIT Unit Number:COC55608A
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:6/5/2001
Spud Date:3/16/2001Spud Date Is:ACTUAL
Measured TD:5975 ft.Measured PB depth:5882 ft.
True Vertical TD:5800 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 3120 FNL  776 FEL
Bottom Hole Location:Sec: Twp: Footage: 3365 FNL  698 FEL
Log Types:RST/CBL/GR/CCL

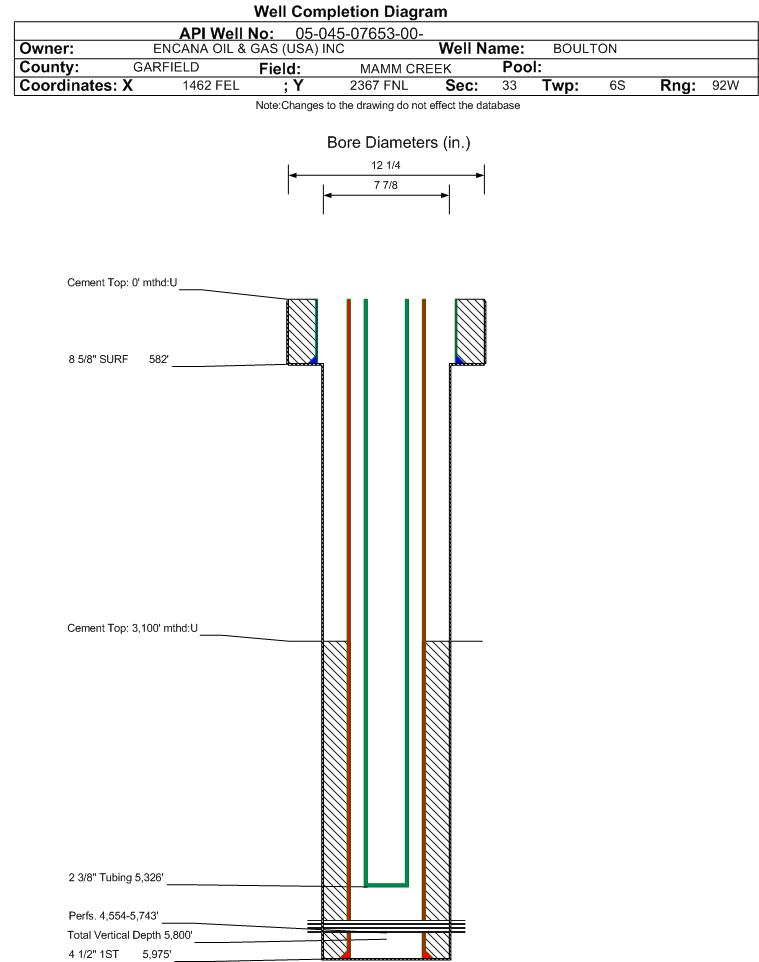

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 582 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 360, Top: 0 ft., Bottom: 582 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 5975 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 850, Top: 3100 ft., Bottom: 5975 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WILLIAMS FORK2902 ft.NN

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 8/21/2004                 Interval Top: 4554 ft.    Interval Bottom: 5743 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:0.375 in.
Formation Name:WILLIAMS FORKCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:6/5/2001
Treatment Summary:STAGE 1: PERFS; 5480'-5743', 32 HOLES, 1434 BBLS VIKING 25,197,300# 20/40 WHITE SAND. STAGE 2: ACID BALLOUT-30 BBLS 2% KCI, 24 KCI, 24 BLLS 7 1/2% HCI WITH 70 7/8" 1.1 S.G. BALL SEALERS FLUSH WITH 84 BBL 2% KCI RETRIEVE 69 BALLS. PERF. 4966'-5109',46 HOL
Tubing Size:2.375 in.Tubing Setting Depth:5326 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/5/2001Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:
Test TypeMeasure
BBLS_H2O 50
BBLS_OIL 35
BTU_GAS 1170
CALC_BBLS_H2O 50
CALC_BBLS_OIL 35
CALC_GOR 57971
CALC_MCF_GAS 2029
CASING_PRESS 1300
MCF_GAS 2029
TUBING_PRESS 0
Perforation Data:
Interval Top:4554 ft.# Of Holes:166
Interval Bottom:5743 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)42
Total Gas Produced (MCF)8727
GOR207785
GOR DeterminationMCFE
Average BOE per Day4.241
Average MCFE per Day24.569

 Federal Financial Assurance  i Y

 Tribal Well  i No
