Wellbore #00 Wellbore Classification: GW Status: SI - 8/1/2022 Measured TD: 7378 ft. Vertical TD: 7313 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW SI - 8/1/2022 | | Wellbore Permit | | | Permit #: | 001342 | Expiration Date: | 12/5/2001 | | Proposed Top PZ Location: | Sec:16 Twp: 6S 96W | Footage: 660 FSL 660 FWL | | Bottom Hole Location: | Sec:16 Twp: 6S 96W | Footage: 660 FSL 660 FWL | | Proposed Depth/Form: | 7675 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | Not available | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CMEO , Formation: CAMEO , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: , Depth: 30 ft., Weight: 84 , Citings Type: PLANNED | | Cement: | Sacks: 100, Top: 0 ft., Bottom: 30 ft. |
| | |

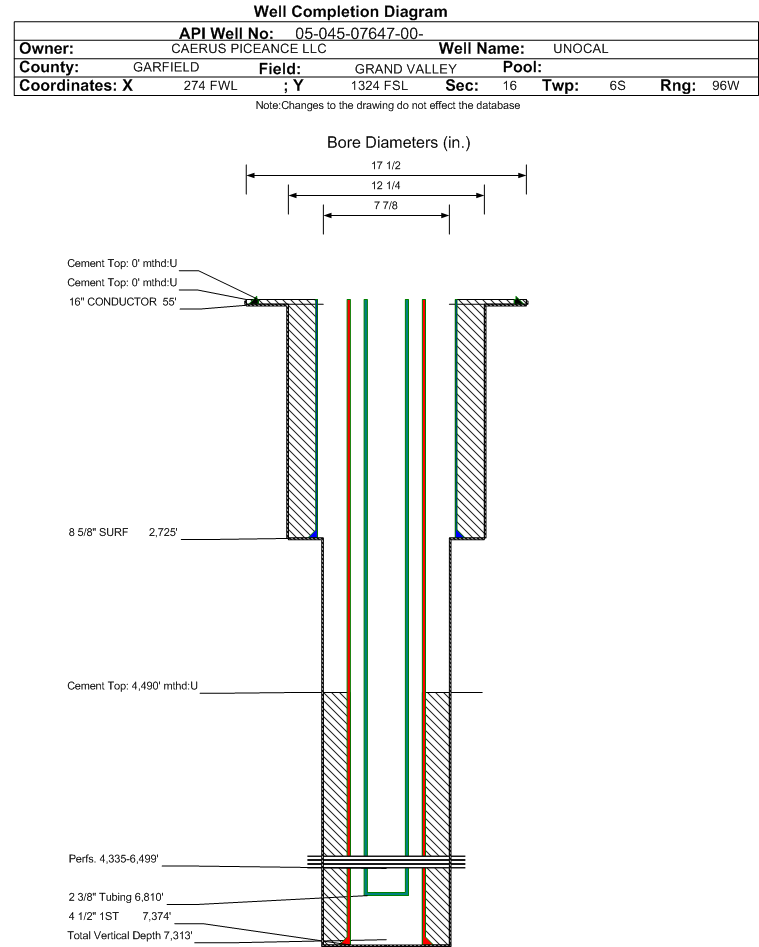

| Wellbore Completed | | Completion Date: | 6/7/2001 | | Spud Date: | 12/30/2000 | Spud Date Is: | ACTUAL | | Measured TD: | 7378 ft. | Measured PB depth: | 7374 ft. | | True Vertical TD: | 7313 ft. | True Vertical PB depth: | 7309 ft. | | Top PZ Location: | Sec: Twp: | Footage: 733 FSL 641 FWL | | Bottom Hole Location: | Sec: Twp: | Footage: 656 FSL 656 FWL | | Log Types: | PLATFORM EXPRESS DEN, NEU, DSI, MICRO | | Casing: | String Type: CONDUCTOR, Hole Size: 17.5 in., Size: 16 in., Top: 0 ft., Depth: 55 ft., Weight: 84 , Citings Type: ACTUAL | | Cement: | Sacks: 100, Top: 0 ft., Bottom: 55 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 2725 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 1282, Top: 0 ft., Bottom: 2725 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7374 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 988, Top: 4490 ft., Bottom: 7374 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | FORT UNION | 2826 ft. | | N | N | | WILLIAMS FORK | 4180 ft. | | N | N | | CAMEO | 6841 ft. | | N | N | | ROLLINS | 7281 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: SI - 8/1/2022 Interval Top: 4335 ft. Interval Bottom: 6499 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 6/7/2001 | | Treatment Summary: | 7/06/01 B J SERVICES FRACED WITH 1819 BBLS OF 18# VISTAR AND 156000# OF 20/40 AND 8000 # OF 14/40 SAND. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6810 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 7/7/2001 | Test Method: | | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| CASING_PRESS | 1400 | | MCF_GAS | 1836 |
| | Perforation Data: | | Interval Top: | 4335 ft. | # Of Holes: | 70 | | Interval Bottom: | 6499 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | Y | Plugging Due Date
12/31/2029 |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive (SI ) | Y | Defined Inactive
07/31/2022 |
| Low Producing | Y | Production Period
10/2024 - 09/2025 |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
