COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07629		Well Classification: GW Status: SI - 8/1/2025
Well Name/No:SHIDELER #32-3(D32NE)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:SIStatus Date8/1/2025
FacilityID:258233LocationID:335400
County:GARFIELD #045Location:NWNW 32 6S92W 6
Field:MAMM CREEK - #52500Elevation:5825 ft.
Basin:PICEANCE BASIN
Planned Location:677FNL  435 FWLLat/Long: 39.488561 / -107.698074Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.488670 / -107.697900Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: SI - 8/1/2025             Measured TD: 6545 ft.    Vertical TD: 6200 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        SI - 8/1/2025
Wellbore Permit
Permit #:001110 Expiration Date:10/12/2001
Proposed Depth/Form:6200 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit:GRASS MESA UNIT Unit Number:COC56608A
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:3/21/2001
Spud Date:11/14/2000Spud Date Is:ACTUAL
Measured TD:6545 ft.Measured PB depth:6370 ft.
True Vertical TD:6200 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 662 FNL  1785 FWL
Bottom Hole Location:Sec: Twp: Footage: 660 FNL  1980 FWL
Log Types:CBL/CCL/RST/GR

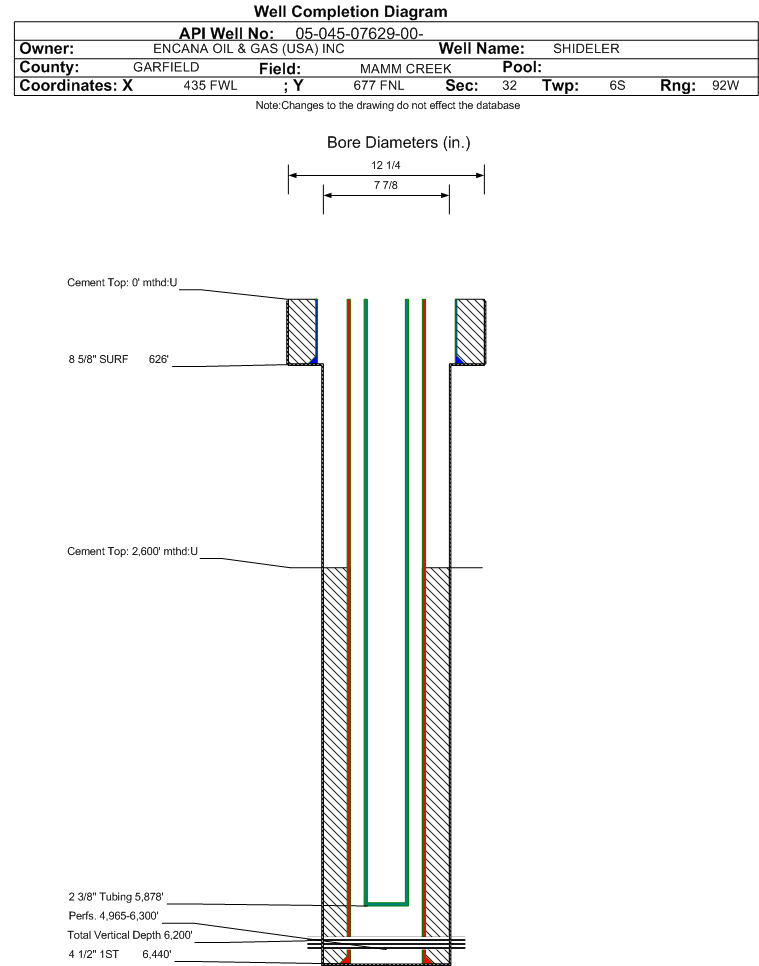

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 626 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 360, Top: 0 ft., Bottom: 626 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6440 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 850, Top: 2600 ft., Bottom: 6440 ft., Determination Method:
FormationInterval TopLog BottomCoredDSTs
WILLIAMS FORK4076 ft.NN

Formation WMFK                     Formation Classification:  GW                     Status:  SI - 8/1/2025                  Interval Top: 4965 ft.    Interval Bottom: 6300 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORKCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:3/21/2001
Treatment Summary:STAGE1: PERFS 6220-6300'.PUMP STAGE 1 STIMULATION WITH TRACER, 98,000# 20/40 WHITE SAND, 816 BBL VISTAR 16. START FLOWBACK TO PUT ON 20/40 CHOKE. STAGE2:PERFS 5775'(CONT)
Tubing Size:2.375 in.Tubing Setting Depth:5878 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/22/2001Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 48
BBLS_OIL 20
BTU_GAS 1170
CALC_BBLS_H2O 48
CALC_BBLS_OIL 20
CALC_GOR 53000
CALC_MCF_GAS 1069
CASING_PRESS 820
MCF_GAS 1069
TUBING_PRESS 590
Perforation Data:
Interval Top:4965 ft.# Of Holes:228
Interval Bottom:6300 ft.Hole Size:
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
10/2024 - 09/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)17
GOR
GOR DeterminationMCFE
Average BOE per Day0.008
Average MCFE per Day0.046

 Federal Financial Assurance  i Y

 Tribal Well  i No
