COGIS - WELL SCOUT CARD

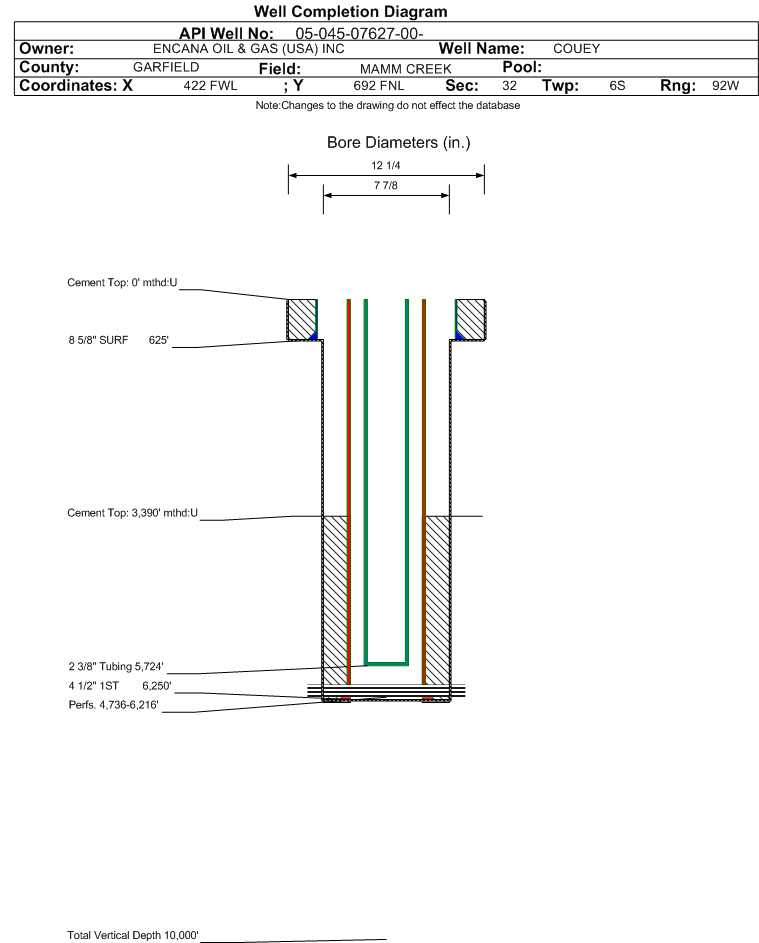

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07627		Well Classification: GW Status: PR - 2/1/2022
Well Name/No:COUEY #32-4(D32NE)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date2/1/2022
FacilityID:258231LocationID:335400
County:GARFIELD #045Location:NWNW 32 6S92W 6
Field:MAMM CREEK - #52500Elevation:5826 ft.
Basin:PICEANCE BASIN
Planned Location:692FNL  422 FWLLat/Long: 39.488521 / -107.698114Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.488630 / -107.697950Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 2/1/2022             Measured TD: 6300 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 2/1/2022
Wellbore Permit
Permit #:001108 Expiration Date:10/12/2001
Proposed Depth/Form:6250 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit:GRASS MESA UNIT Unit Number:56608A
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:4/9/2001
Spud Date:11/29/2000Spud Date Is:ACTUAL
Measured TD:6300 ft.Measured PB depth:6217 ft.
True Vertical TD:True Vertical PB depth:6520 ft.
Log Types:CNL/GR/DIL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 625 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 360, Top: 0 ft., Bottom: 625 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6250 ft., Weight: 211.6 , Citings Type: ACTUAL
Cement:Sacks: 850, Top: 3390 ft., Bottom: 6300 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WILLIAMS FORK3838 ft.NN

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 2/1/2022                  Interval Top: 4736 ft.    Interval Bottom: 6216 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:2/7/2001Choke Size:0.375 in.
Formation Name:WILLIAMS FORKCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:4/9/2001
Treatment Summary:SEE COMMENTS.
Tubing Size:2.375 in.Tubing Setting Depth:5724 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/25/2001Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 117
BBLS_OIL 28
BTU_GAS 1170
CALC_BBLS_H2O 117
CALC_BBLS_OIL 28
CALC_GOR 41786
CALC_MCF_GAS 1030
CASING_PRESS 1040
MCF_GAS 1030
TUBING_PRESS 840
Perforation Data:
Interval Top:4736 ft.# Of Holes:182
Interval Bottom:6216 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)34
Total Gas Produced (MCF)10490
GOR308529
GOR DeterminationMCFE
Average BOE per Day5.047
Average MCFE per Day29.267

 Federal Financial Assurance  i Y

 Tribal Well  i No
