COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07620		Well Classification: GW Status: PR - 9/22/2000
Well Name/No:BERNKLAU #RWF 11-4
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date9/22/2000
FacilityID:258084LocationID:334958
County:GARFIELD #045Location:NWNW 4 7S94W 6
Field:RULISON - #75400Elevation:6128 ft.
Basin:PICEANCE BASIN
Planned Location:410FNL  466 FWLLat/Long: 39.473050 / -107.899890Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.473272 / -107.899872Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 9/1/2000             Measured TD: 8076 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 9/1/2000
Wellbore Permit
Permit #:000993 Expiration Date:9/21/2001
Proposed Depth/Form:8410 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-28 , Unit Acreage: 640, Drill Unit: ALL
Wellbore Completed
Completion Date:2/15/2001
Spud Date:11/22/2000Spud Date Is:ACTUAL
Measured TD:8076 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Log Types:DUAL INDUCTION SPECTRAL DENSITY DUAL SPACED NEUTRON

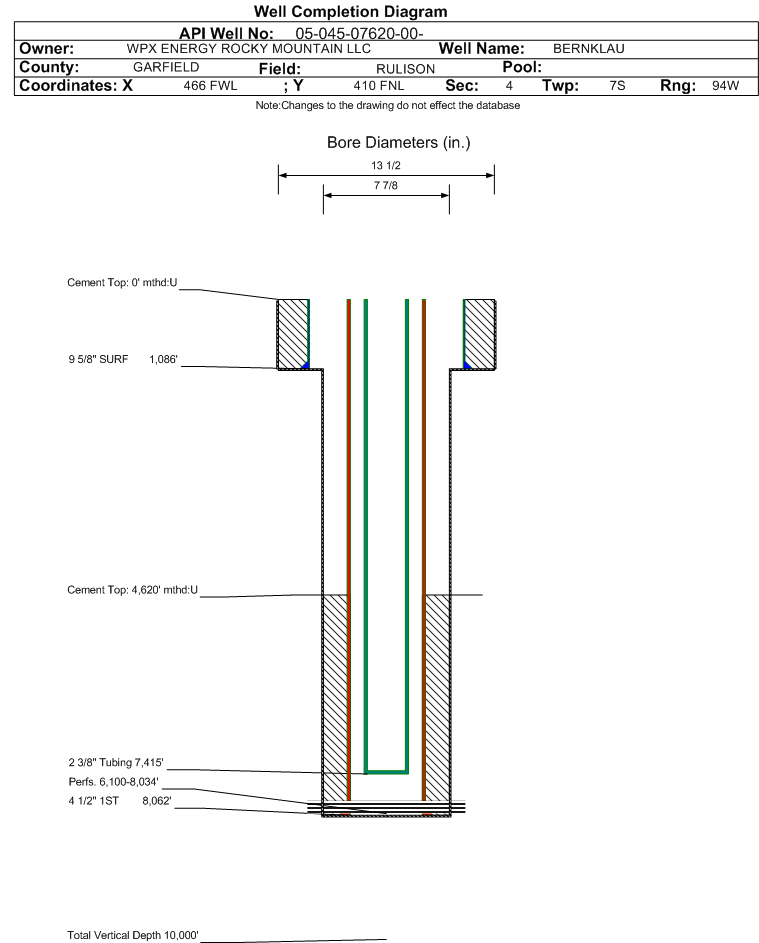

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 1086 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 580, Top: 0 ft., Bottom: 1086 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 8062 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 830, Top: 4620 ft., Bottom: 8062 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G2394 ft.NN
MESAVERDE4708 ft.NN
CAMEO COAL7262 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 9/1/2000                  Interval Top: 6100 ft.    Interval Bottom: 8034 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:2/15/2001
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:7415 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/23/2001Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 1185
CASING_PRESS 1850
MCF_GAS 1185
TUBING_PRESS 1599
Perforation Data:
Interval Top:6100 ft.# Of Holes:80
Interval Bottom:8034 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)31
Total Gas Produced (MCF)10649
GOR343516
GOR DeterminationMCFE
Average BOE per Day5.114
Average MCFE per Day29.664

 Federal Financial Assurance  i

 Tribal Well  i No
