COGIS - WELL SCOUT CARD

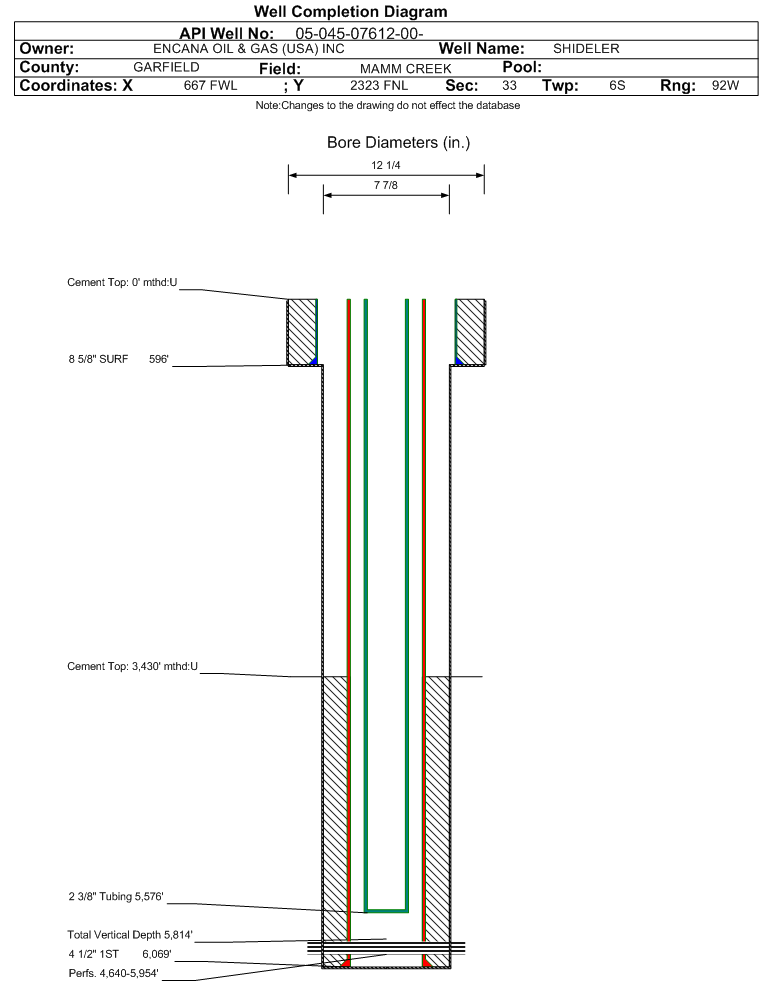

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07612		Well Classification: GW Status: PR - 3/1/2025
Well Name/No:SHIDELER #32-8 (E33)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date3/1/2025
FacilityID:258018LocationID:334875
County:GARFIELD #045Location:SWNW 33 6S92W 6
Field:MAMM CREEK - #52500Elevation:5743 ft.
Basin:PICEANCE BASIN
Planned Location:2323FNL  667 FWLLat/Long: 39.484171 / -107.678423Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.484260 / -107.678530Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 3/1/2025             Measured TD: 6070 ft.    Vertical TD: 5814 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 3/1/2025
Wellbore Permit
Permit #:000948 Expiration Date:9/12/2001
Proposed Top PZ Location:Sec:33 Twp: 6S 92W Footage: 2023 FNL  495 FEL
Bottom Hole Location:Sec:32 Twp: 6S 92W Footage: 1980 FNL  660 FEL
Proposed Depth/Form:5908 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit:GRASS MESA UNIT Unit Number:56608A
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:2/22/2001
Spud Date:10/14/2000Spud Date Is:ACTUAL
Measured TD:6070 ft.Measured PB depth:6035 ft.
True Vertical TD:5814 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 2023 FNL  495 FEL
Bottom Hole Location:Sec: Twp: Footage: 2033 FNL  547 FEL
Log Types:CBL, RST-SIGMA/GR-CCL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 596 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 360, Top: 0 ft., Bottom: 595 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6069 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 700, Top: 3430 ft., Bottom: 6069 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WILLIAMS FORK3790 ft.4390 ft.NN

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 3/1/2025                  Interval Top: 4640 ft.    Interval Bottom: 5954 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORKCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:2/22/2001
Treatment Summary:STAGE 1: PERFS 5600-5954' ACID BREAKDOWN W/1500 GALS HCL & 100 RCN BALL SEALERS.FRAC W/943 VISTAR 16 W/96,42#S 20/40 WHITE SAND. STAGE 2: PERFS 5000-5512' ACID BREAKDOWN W/1500 GALS 15% HCL & 100 BALL SEALERS. FRAC W/1541 BBLS VISTAR 16 W/220,000#S 20/40
Tubing Size:2.375 in.Tubing Setting Depth:5576 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/28/2001Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 33
BBLS_OIL 3
CALC_BBLS_H2O 33
CALC_BBLS_OIL 3
CALC_GOR 47800
CALC_MCF_GAS 1434
CASING_PRESS 1225
MCF_GAS 1434
TUBING_PRESS 1125
Perforation Data:
Interval Top:4640 ft.# Of Holes:119
Interval Bottom:5954 ft.Hole Size:
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
10/2024 - 09/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)2696
GOR
GOR DeterminationMCFE
Average BOE per Day1.266
Average MCFE per Day7.358

 Federal Financial Assurance  i Y

 Tribal Well  i No
