COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07610		Well Classification: GW Status: PR - 6/1/2020
Well Name/No:VASSAR/HEATH #RMV 229-27
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC 67676
Facility Status:PRStatus Date6/1/2020
FacilityID:258016LocationID:324124
County:GARFIELD #045Location:NWSW 27 6S94W 6
Field:RULISON - #75400Elevation:5387 ft.
Basin:PICEANCE BASIN
Planned Location:1651FSL  250 FWLLat/Long: 39.493569 / -107.882640Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.493551 / -107.882696Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 6/1/2020             Measured TD: 10316 ft.    Vertical TD: 10002 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 6/1/2020
Wellbore PermitDIRECTIONAL
Permit #:Expiration Date:7/29/2004
Proposed Top PZ Location:Sec:27 Twp: 6S 94W Footage: 1578 FSL  244 FWL
Bottom Hole Location:Sec:27 Twp: 6S 94W Footage: 790 FSL  551 FWL
Proposed Depth/Form:10316 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: MNCS , Formation: MANCOS , Order: , Unit Acreage: 40, Drill Unit:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-38,440, Unit Acreage: 320, Drill Unit: W/2
Casing:String Type: SURF, Hole Size: 13.75 in., Size: 10.75 in., Top: , Depth: 1119 ft., Weight: 40.5 , Citings Type: PLANNED
Cement:Sacks: 560, Top: 0 ft., Bottom: 1119 ft.
Casing:String Type: 1ST, Hole Size: 9.875 in., Size: 7.625 in., Top: , Depth: 8465 ft., Weight: 29.7 , Citings Type: PLANNED
Cement:Sacks: 1100, Top: 3600 ft., Bottom: 8465 ft.
Casing:String Type: 2ND, Hole Size: 6.5 in., Size: 5 in., Top: , Depth: 10316 ft., Weight: 18 , Citings Type: PLANNED
Cement:Sacks: 10316, Top: , Bottom:
Wellbore Completed
Completion Date:5/10/2001
Spud Date:2/8/2001Spud Date Is:ACTUAL
Measured TD:10316 ft.Measured PB depth:10070 ft.
True Vertical TD:10002 ft.True Vertical PB depth:9833 ft.
Top PZ Location:Sec:27 Twp: 6S 94WFootage: 1578 FSL  244 FWL
Bottom Hole Location:Sec:27 Twp: 6S 94WFootage: 790 FSL  551 FWL
Log Types:
Log Types:CHDT, CBL
Log Types:CBL, RESERVOIR MONITOR TOOL ELITE
Log Types:No new logs

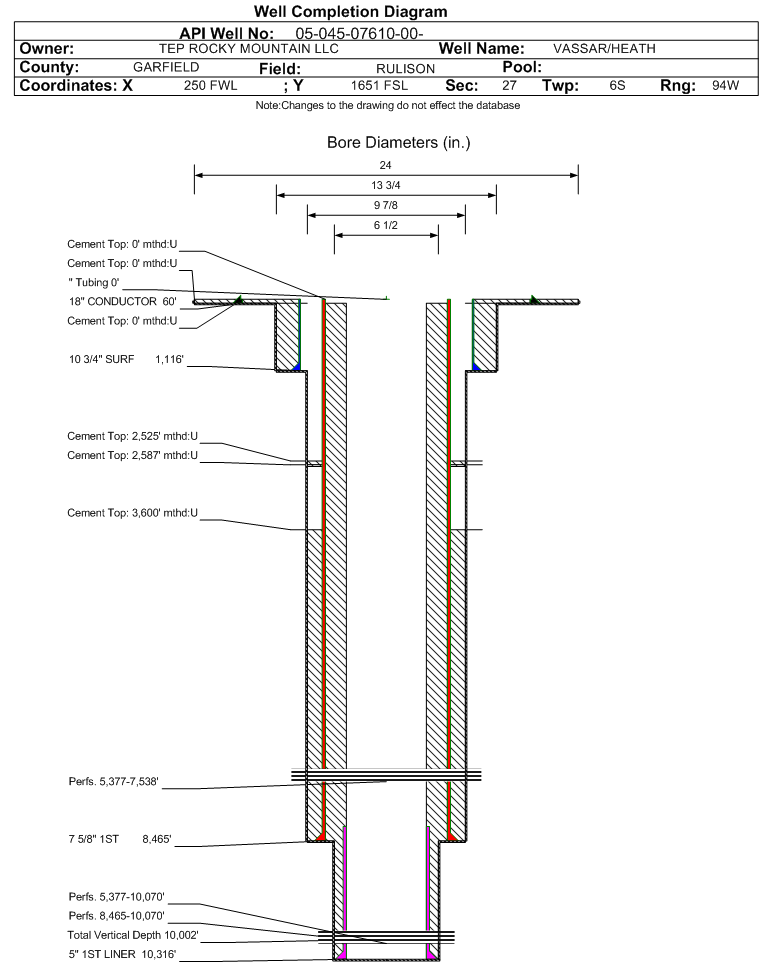

Casing:String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 60 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 25, Top: 0 ft., Bottom: 60 ft., Determination Method: VISU
Casing:String Type: SURF, Hole Size: 13.75 in., Size: 10.75 in., Top: 0 ft., Depth: 1116 ft., Weight: 40.5 , Citings Type: ACTUAL
Cement:Sacks: 560, Top: 0 ft., Bottom: 1116 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 9.875 in., Size: 7.625 in., Top: 0 ft., Depth: 8465 ft., Weight: 226.4 , Citings Type: ACTUAL
Cement:Sacks: 1100, Top: 3600 ft., Bottom: 8465 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 2587 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 350, Top: 2525 ft., Bottom: 2587 ft., Determination Method: CBL
Casing:String Type: S.C. 1.2, Hole Size: , Size: , Top: , Depth: 2518 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 2587 ft., Bottom: 2614 ft., Determination Method: CALC
Casing:String Type: 1ST LINER, Hole Size: 6.5 in., Size: 5 in., Top: 8239 ft., Depth: 10316 ft., Weight: 18 , Citings Type: ACTUAL
Cement:Sacks: , Top: , Bottom: , Determination Method:
Additional Cement:String Type: 1ST , Top: 2587 ft., Depth: 2614 ft., Bottom: 2614 ft., Sacks: 200, Method: SQUEEZE
Additional Cement:String Type: 1ST , Top: 2525 ft., Depth: 2587 ft., Bottom: 2587 ft., Sacks: 350, Method: SQUEEZE
FormationInterval TopLog BottomCoredDSTs
WASATCH G1521 ft.
WILLIAMS FORK3953 ft.
MESAVERDE3953 ft.
CAMEO6701 ft.
ROLLINS7583 ft.
COZZETTE7974 ft.
CORCORAN8240 ft.
MANCOS8370 ft.

Formation MNCS                     Formation Classification:  GW                     Status:  PR - 6/1/2020                  Interval Top: 8465 ft.    Interval Bottom: 10070 ft.

 Completed Information for Formation MANCOS
1st Production Date:5/1/2001Choke Size:
Formation Name:MANCOSCommingled:Yes
Production Method:
Open Hole Completion:Yes
Formation Treatment
Treatment Date:5/10/2001
Treatment Summary:600 BBLS 4% KCL WATER; 407000# 20/40 SAND & 4540 BBLS FLUID
Formation Treatment
Treatment Date:4/26/2001
Treatment Summary:4540 BBls Slickwater; 407000 20/40 Sand; ** The Mancos formation has a pre perf'd sloted liner.
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 1696
CASING_PRESS 246
MCF_GAS 696
TUBING_PRESS 1719
Perforation Data:
Interval Top:8465 ft.# Of Holes:0
Interval Bottom:10070 ft.Hole Size:0.35 in.

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 6/1/2020                  Interval Top: 5377 ft.    Interval Bottom: 7538 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:9/1/2003Choke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:9/17/2003
Treatment Summary:1323 Gals 7.5% HCL; 13079 BBLs Slickwater; 480298 20/40 Sand;
Formation Treatment
Treatment Date:5/10/2001
Treatment Summary:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
CALC_MCF_GAS 903
CASING_PRESS 1015
MCF_GAS 903
TUBING_PRESS 860
Perforation Data:
Interval Top:5377 ft.# Of Holes:90
Interval Bottom:7538 ft.Hole Size:0.35 in.

Formation WFCMMN                 Formation Classification:  GW                 Status:  CM - 7/31/2017                 Interval Top: 5377 ft.    Interval Bottom: 10070 ft.

 Completed Information for Formation WILLIAMS FORK-CAMEO-MANCOS
1st Production Date:9/1/2003Choke Size:
Formation Name:WILLIAMS FORK-CAMEO-MANCOSCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:4/17/2001
Treatment Summary:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WFCMMN.
Perforation Data:
Interval Top:5377 ft.# Of Holes:90
Interval Bottom:10070 ft.Hole Size:0.35 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)20
Total Gas Produced (MCF)24165
GOR1208250
GOR DeterminationMCFE
Average BOE per Day11.396
Average MCFE per Day66.093

 Federal Financial Assurance  i

 Tribal Well  i No
