COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07592		Well Classification: GW Status: PR - 6/22/2000
Well Name/No:GM #24-27
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC49009
Facility Status:PRStatus Date6/22/2000
FacilityID:257701LocationID:335397
County:GARFIELD #045Location:SESW 27 6S96W 6
Field:GRAND VALLEY - #31290Elevation:5598 ft.
Basin:PICEANCE BASIN
Planned Location:1144FSL  2541 FWLLat/Long: 39.490898 / -108.095126Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.491088 / -108.095090Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 6/22/2000             Measured TD: 6790 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 6/22/2000
Wellbore Permit
Permit #:000775 Expiration Date:7/23/2001
Proposed Depth/Form:7000 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 440-16 , Unit Acreage: 320, Drill Unit: S2
Wellbore Completed
Completion Date:11/30/2000
Spud Date:10/5/2000Spud Date Is:ACTUAL
Measured TD:6790 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Log Types:DUAL IND SPEC DENS DUAL SPAC NEUT,CBL

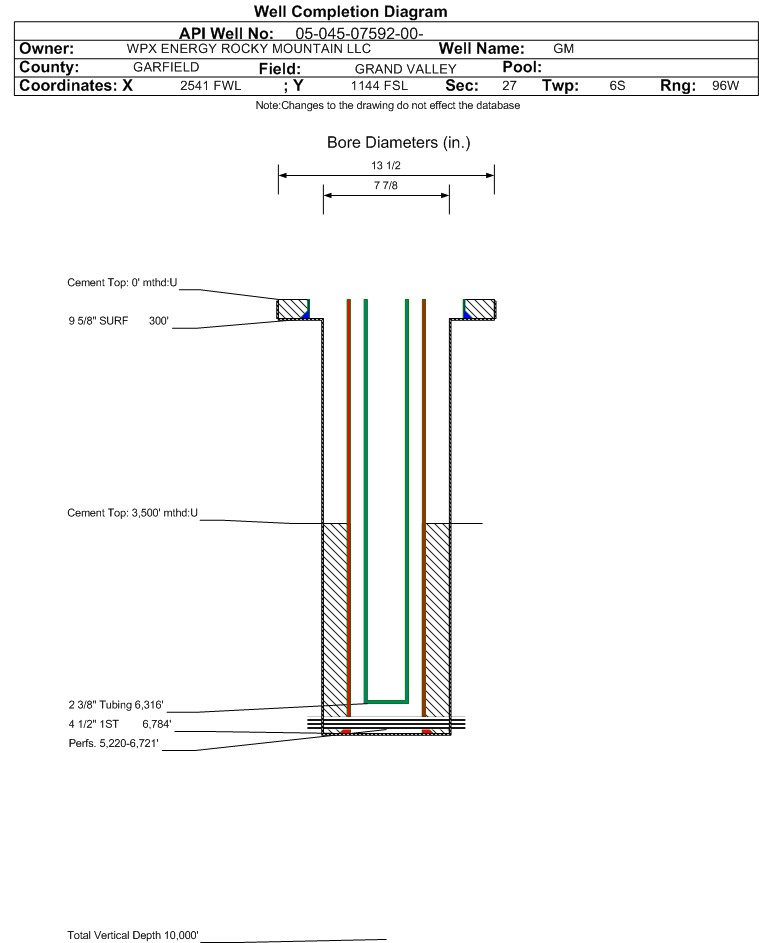

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 300 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 180, Top: 0 ft., Bottom: 300 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 6784 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 900, Top: 3500 ft., Bottom: 6784 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G2033 ft.NN
FORT UNION2327 ft.NN
MESAVERDE3760 ft.NN
CAMEO COAL6445 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 6/22/2000                 Interval Top: 5220 ft.    Interval Bottom: 6721 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:11/30/2000
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:6316 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/5/2000Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 5
CALC_BBLS_H2O 5
CALC_MCF_GAS 1398
CASING_PRESS 1955
MCF_GAS 1398
TUBING_PRESS 1850
Perforation Data:
Interval Top:5220 ft.# Of Holes:68
Interval Bottom:6721 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)15
Total Gas Produced (MCF)9806
GOR653733
GOR DeterminationMCFE
Average BOE per Day4.669
Average MCFE per Day27.113

 Federal Financial Assurance  i

 Tribal Well  i No
