Wellbore #00 Wellbore Classification: GW Status: PR - 10/31/2000 Measured TD: 6660 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 10/31/2000 | | Wellbore Permit | | | Permit #: | 000732 | Expiration Date: | 7/17/2001 | | Proposed Depth/Form: | 6800 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-1 , Unit Acreage: 160, Drill Unit: NE4 |
| | |

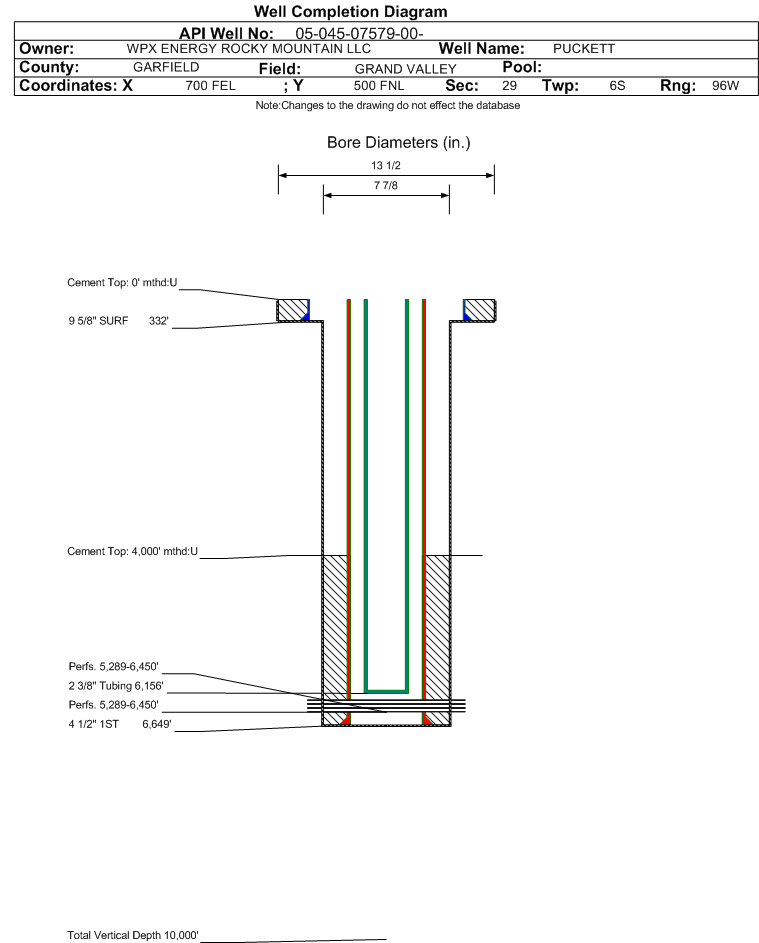

| Wellbore Completed | | Completion Date: | 10/26/2000 | | Spud Date: | 9/12/2000 | Spud Date Is: | ACTUAL | | Measured TD: | 6660 ft. | Measured PB depth: | | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | DUAL IND SPEC DENS DUAL SPACED NEUT, CBL | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 332 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 180, Top: 0 ft., Bottom: 332 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 6649 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1105, Top: 4000 ft., Bottom: 6649 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 1935 ft. | | N | N | | FORT UNION | 2233 ft. | | N | N | | MESAVERDE | 3626 ft. | | N | N | | CAMEO COAL | 6173 ft. | | N | N | | ROLLINS | 6635 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 10/31/2000 Interval Top: 5289 ft. Interval Bottom: 6450 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | Yes | | Production Method: | FLOWING | | Open Hole Completion: | |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6156 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 10/31/2000 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| CALC_BBLS_H2O | 10 | | CALC_MCF_GAS | 1378 | | CASING_PRESS | 1429 | | TUBING_PRESS | 1428 |
| | Perforation Data: | | Interval Top: | 5289 ft. | # Of Holes: | 54 | | Interval Bottom: | 6450 ft. | Hole Size: | |
|
Formation WMFK Formation Classification: GW Status: CM - 7/10/2001 Interval Top: 5289 ft. Interval Bottom: 6450 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | WILLIAMS FORK | Commingled: | Yes | | Production Method: | FLOWING | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 10/26/2000 | | Treatment Summary: | |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6156 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 10/31/2000 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 10 | | CALC_BBLS_H2O | 10 | | CALC_MCF_GAS | 1378 | | CASING_PRESS | 1429 | | MCF_GAS | 1378 | | TUBING_PRESS | 1428 |
| | Perforation Data: | | Interval Top: | 5289 ft. | # Of Holes: | 54 | | Interval Bottom: | 6450 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 10 |
| Total Gas Produced (MCF) | 4006 |
| GOR | 400600 |
| GOR Determination | MCFE |
| Average BOE per Day | 1.922 |
| Average MCFE per Day | 11.162 |
| Federal Financial Assurance | i | |
|
|
