COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07575		Well Classification: GW Status: PR - 10/12/2012
Well Name/No:FEDERAL #RMV 132-18
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date10/12/2012
FacilityID:257581LocationID:335412
County:GARFIELD #045Location:NESE 18 6S94W 6
Field:RULISON - #75400Elevation:5889 ft.
Basin:PICEANCE BASIN
Planned Location:1916FSL  404 FELLat/Long: 39.522859 / -107.922761Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.522924 / -107.922749Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.

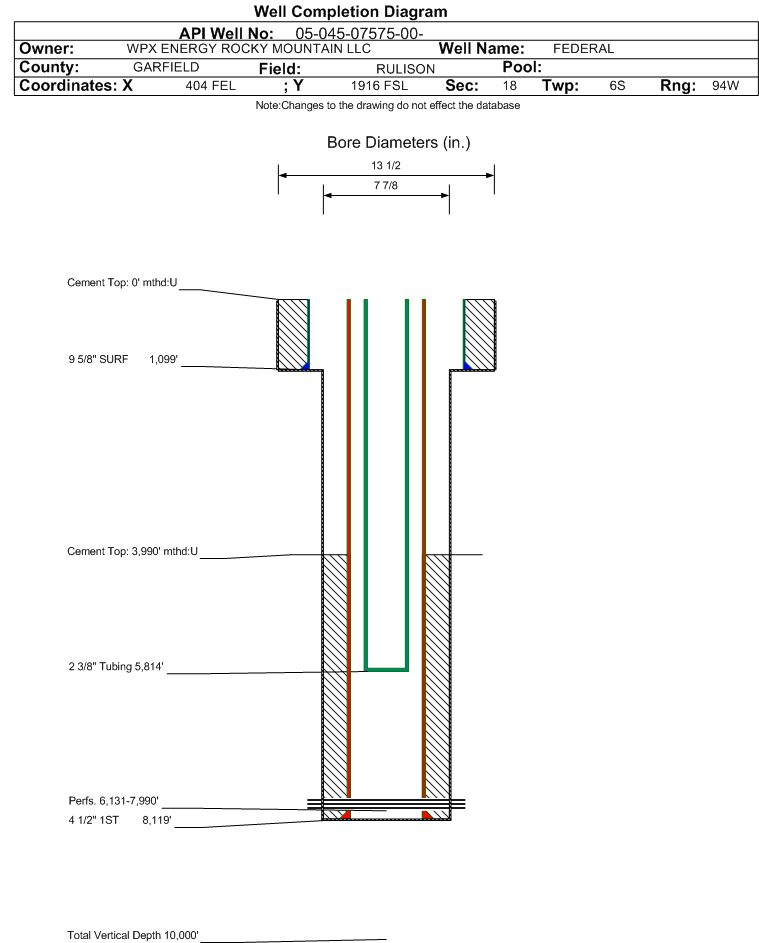

Wellbore #00             Wellbore Classification: GW             Status: PR - 10/12/2012             Measured TD: 8125 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 10/12/2012
Wellbore Permit
Permit #:000682 Expiration Date:7/9/2001
Proposed Depth/Form:8170 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 440-16 , Unit Acreage: 320, Drill Unit: S2
Casing:String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: , Depth: 45 ft., Weight: , Citings Type: PLANNED
Cement:Sacks: , Top: , Bottom:
Wellbore Completed
Completion Date:10/18/2000
Spud Date:8/26/2000Spud Date Is:ACTUAL
Measured TD:8125 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Log Types:DIL, SDL-DSN-GR, CBL-GR-CCL
Log Types:DUAL IND SPEC DENS DUAL SPAC NEUT.
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 1099 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 500, Top: 0 ft., Bottom: 1099 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 8119 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1040, Top: 3990 ft., Bottom: 8119 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G2485 ft.NN
MESAVERDE4893 ft.NN
CAMEO COAL7579 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 10/12/2012                Interval Top: 6131 ft.    Interval Bottom: 7990 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:10/18/2000
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:5814 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/27/2000Test Method:
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
CALC_BBLS_H2O 10
CALC_MCF_GAS 1162
CASING_PRESS 2276
TUBING_PRESS 2197
Perforation Data:
Interval Top:6131 ft.# Of Holes:86
Interval Bottom:7990 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)8
Total Gas Produced (MCF)5445
GOR680625
GOR DeterminationMCFE
Average BOE per Day2.598
Average MCFE per Day15.051

 Federal Financial Assurance  i Y

 Tribal Well  i No
