COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-07570		Well Classification: GW Status: PR - 6/20/2000
Well Name/No:FEDFERAL #GM 42-35
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC55363
Facility Status:PRStatus Date6/20/2000
FacilityID:257535LocationID:335148
County:GARFIELD #045Location:SENE 35 6S96W 6
Field:GRAND VALLEY - #31290Elevation:5825 ft.
Basin:PICEANCE BASIN
Planned Location:2658FNL  1209 FELLat/Long: 39.480439 / -108.070955Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.480687 / -108.070962Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 6/20/2000             Measured TD: 7062 ft.    Vertical TD: 7023 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 6/20/2000
Wellbore Permit
Permit #:000645 Expiration Date:6/27/2001
Proposed Top PZ Location:Sec:35 Twp: 6S 96W Footage: 2210 FNL  876 FEL
Bottom Hole Location:Sec:35 Twp: 6S 96W Footage: 2210 FNL  876 FEL
Proposed Depth/Form:7100 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 479-5 , Unit Acreage: 320, Drill Unit: N2
Casing:String Type: CONDUCTOR, Hole Size: , Size: 16 in., Top: , Depth: 45 ft., Weight: , Citings Type: PLANNED
Cement:Sacks: , Top: , Bottom:
Wellbore Completed
Completion Date:10/6/2000
Spud Date:8/20/2000Spud Date Is:ACTUAL
Measured TD:7062 ft.Measured PB depth:
True Vertical TD:7023 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 2210 FNL  876 FEL
Bottom Hole Location:Sec: Twp: Footage: 2210 FNL  876 FEL
Log Types:DUAL INDUCTION SPECTAL DENSITY DUAL SPACED NEUTRON
Log Types:

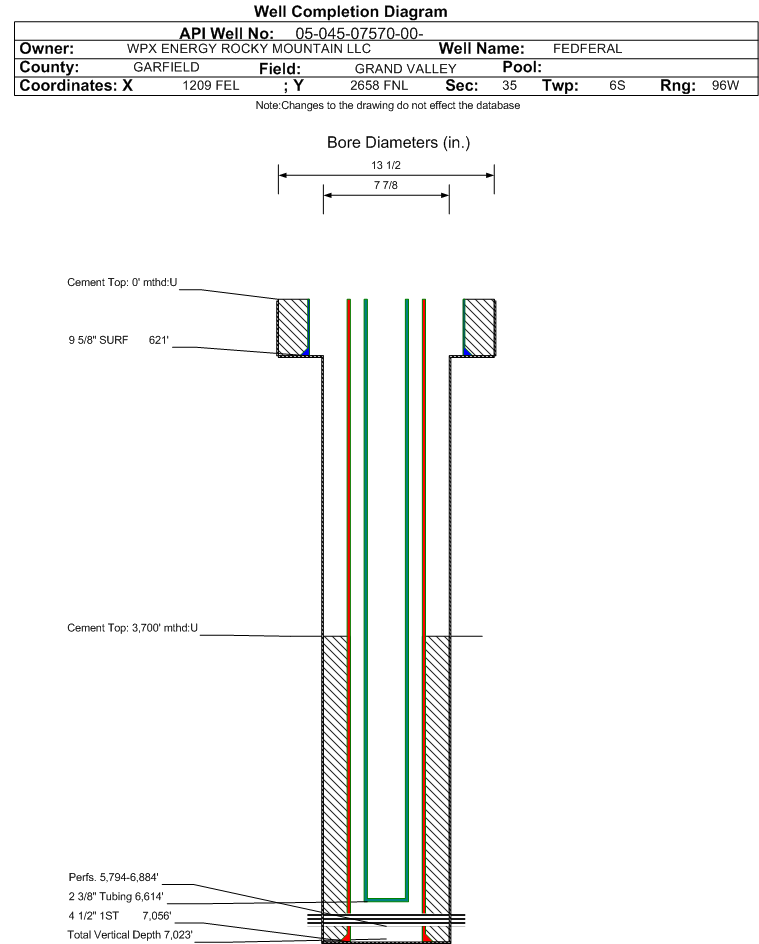

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 621 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 350, Top: 0 ft., Bottom: 621 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7056 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 850, Top: 3700 ft., Bottom: 7056 ft., Determination Method:
FormationInterval TopLog BottomCoredDSTs
WASATCH G2146 ft.NN
MESAVERDE4099 ft.NN
CAMEO COAL6665 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 6/20/2000                 Interval Top: 5794 ft.    Interval Bottom: 6884 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:10/6/2000
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:6614 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/22/2000Test Method:
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
CALC_BBLS_H2O 10
CALC_MCF_GAS 897
CASING_PRESS 1268
TUBING_PRESS 1111
Perforation Data:
Interval Top:5794 ft.# Of Holes:66
Interval Bottom:6884 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)19
Total Gas Produced (MCF)10158
GOR534631
GOR DeterminationMCFE
Average BOE per Day4.843
Average MCFE per Day28.135

 Federal Financial Assurance  i Y

 Tribal Well  i No
