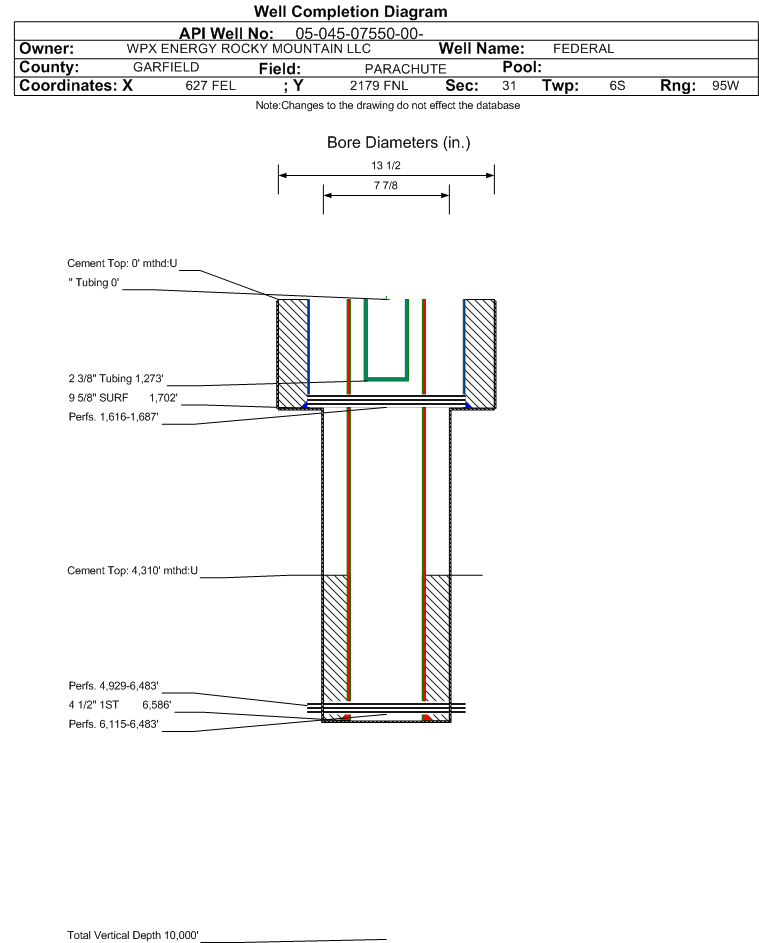

Wellbore #00 Wellbore Classification: GW Status: PR - 12/1/2010 Measured TD: 6640 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 12/1/2010 | | Wellbore Permit | | | Permit #: | 20053065 | Expiration Date: | 9/22/2006 | | Proposed Depth/Form: | 6640 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 440-16 , Unit Acreage: 320, Drill Unit: E2 | | Formation And Spacing: | Code: WSTC , Formation: WASATCH , Order: 440-12 , Unit Acreage: 160, Drill Unit: NE4 | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 1702 ft., Weight: 32.3 , Citings Type: PLANNED | | Cement: | Sacks: 720, Top: 0 ft., Bottom: 1702 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 6586 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 975, Top: 4310 ft., Bottom: 6586 ft. |
| | |
| Wellbore Completed | | Completion Date: | 9/5/2000 | | Spud Date: | 7/17/2000 | Spud Date Is: | ACTUAL | | Measured TD: | 6640 ft. | Measured PB depth: | | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | DUAL INDUCTION SPECTRAL DENSITY DUAL SPACED NEUTRON | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 1702 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 720, Top: , Bottom: 1702 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 6586 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 975, Top: 4310 ft., Bottom: 6586 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | FORT UNION | 1959 ft. | | N | N | | MESAVERDE | 3632 ft. | | N | N | | CAMEO COAL | 6284 ft. | | N | N |
Formation WMFK Formation Classification: GW Status: CM - 12/1/2010 Interval Top: 6115 ft. Interval Bottom: 6483 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | WILLIAMS FORK | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 9/5/2000 | | Treatment Summary: | 1000 GALS 7 1/2% HCL;401,000#20/40 SAND;2898 BBLS GEL.;5565TOP-5976BOTTOM/16HOLES;750 GALS 7 1/2% HCL;250,940#20/40 SAND;2167 BBLS GEL;TOP;4929;BOTTOM05237/20HOLES ;750GA;LS HCL;400,000#20/40 SAND;2952 BBLS GEL. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation WMFK. |
| | Perforation Data: | | Interval Top: | 6115 ft. | # Of Holes: | 18 | | Interval Bottom: | 6483 ft. | Hole Size: | |
|
Formation WFCM Formation Classification: GW Status: PR - 12/1/2010 Interval Top: 4929 ft. Interval Bottom: 6483 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 9/5/2000 | | Treatment Summary: | 2500 7-1/2% HCL, 1,051,940# 20/40 SAND, 8017 BBLS GEL (SUMMARY) |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 9/14/2000 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 0 | | CALC_MCF_GAS | 1082 | | CASING_PRESS | 1556 | | TUBING_PRESS | 1558 |
| | Perforation Data: | | Interval Top: | 4929 ft. | # Of Holes: | 54 | | Interval Bottom: | 6483 ft. | Hole Size: | |
|
Formation WSTC Formation Classification: GW Status: PR - 12/1/2010 Interval Top: 1616 ft. Interval Bottom: 1687 ft.| Completed Information for Formation WASATCH | | 1st Production Date: | N/A | Choke Size: | 0.750 in. | | Formation Name: | WASATCH | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 9/5/2000 | | Treatment Summary: | 500 GALS 7-1/2% HCL, 235,700# 20/40, 727 20# DELTA 140W |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 1273 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 12/23/2005 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 0 | | CALC_MCF_GAS | 184 | | CASING_PRESS | 102 |
| | Perforation Data: | | Interval Top: | 1616 ft. | # Of Holes: | 15 | | Interval Bottom: | 1687 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 21 |
| Total Gas Produced (MCF) | 11657 |
| GOR | 555095 |
| GOR Determination | MCFE |
| Average BOE per Day | 5.563 |
| Average MCFE per Day | 32.275 |
| Federal Financial Assurance | i | Y |
|
|
